Comec TR1000 lathe drum lathe
Comec TR1000 lathe drum lathe

Comec TR1000 lathe drum lathe

  • SKU: BD14000
Price

10,890.00 €

Price in store with tax

10,890.00 €

Prices shown include tax

Send Message

Description

Comec TR1000 lathe drum lathe

Brand Italy, Warranty 2 years

Description:

The TR1000 lathe is designed for car and truck brake drums and can be a good solution for mechanics looking for a reliable and easy-to-use machine.

The main features of the TR1000 are the structural strength obtained due to the abundant use of cast iron in all parts of the device. Some intuitive controls are conveniently mounted on the device to allow all adjustments to be made. This allows you to achieve the best results in accuracy and finish


Standard equipment:

- drill beam support

- Drill beam for large drums

- Large drum insert holder

- Protective shield 650 mm in diameter

- Truck drum mute tape

- 50 mm diameter shaft with nut and wrench

- Washers

- Centering cones

- Wrench set

- Instructions


Specification:

- Min / Max drum size: 150 ÷ ​​1170 mm

- Maximum disc size: 865 mm

- Horizontal table offset: 410 mm

- Transverse slip: 145 mm

- Spindle rotation speed: 30 ÷ 120 rpm

- Horizontal table feed: 0 ÷ 30 mm / min

- transverse slip feed: 0 ÷ 30 mm / min

- Spindle motor power: 1.5 kW

- Table motor power: 0.07 kW

- Dimensions: 1970x1400x1470 mm

- Weight: 655 kg


https://www.youtube.com/watch?v=ckuFMCJVVHE

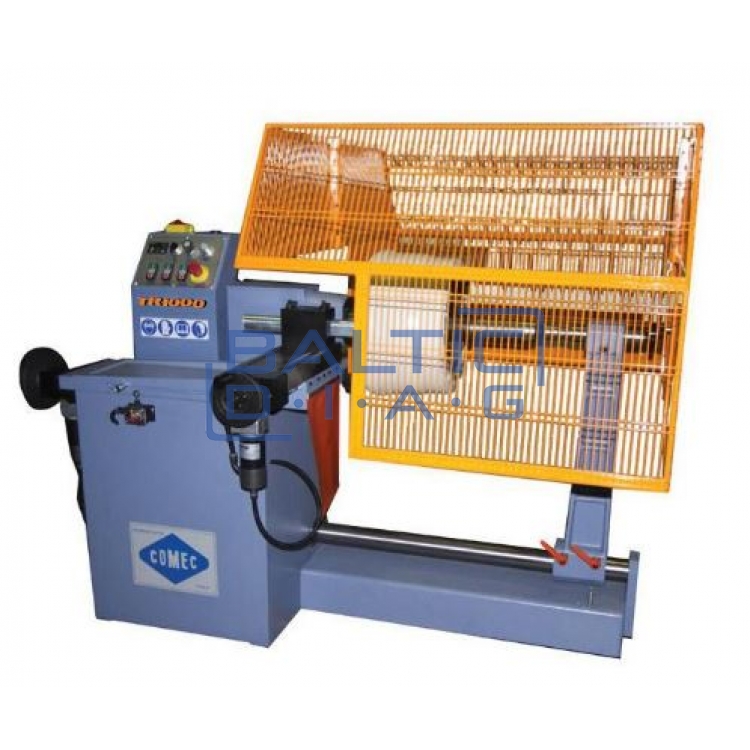

* NOTE: The photo shows a version of the TR1000.CPS machine with an additional support paw. Ask for the price of this kit.
