Car configurator MagicMotorSport FLEX

Car configurator MAGICMOTORSPORT FLEX

Manufacturer: MAGICMOTORSPORT (Italy); Warranty: 24 months

Description:

This device is used for simple tuning, reprogramming or modification of car software, the web interface reveals the full potential of this device. The connection is made directly through the OBD connector or in Tricore mode. For advanced repairs, use the Flexbox module, which allows programming in BDM, Bootloader, JTAG and AUD modes. The device is capable of detecting possible login or connection errors. Customize your FLEX device according to your needs, choosing SW packages and accessories that best suit your workload.

The FLEX device is the solution for all modification and programming needs, as it adapts to every situation thanks to the included accessories that allow easy connection in any way. Get started with a professional programming tool that allows you to access the highest level of technology on the market.

FLEX is an innovative mechatronics workshop tool that fully supports the latest developments in the automotive tuning and repair market. With this tool, you can increase your productivity and raise your vehicle repair service to a higher level by purchasing the new FLEX, which is universally used and suitable for every service.

MMS HELPDESK is a platform that provides remote technical support. No matter where you are, remote support with professional and qualified specialists is available to you 24/7 with chat and ticket support. Discover the unlimited possibilities that FLEX offers with MAGICMOTORSPORT's knowledge base and services.

MAGICMOTORSPORT FLEX is adapted to the following transport:

• For passenger cars

• For motorcycles
• For minibuses
• For buses
• For trucks
• For tractors
• For industrial transport
•  For ships

Connect your vehicles to the most advanced MAGICMOTORSPORT technologies using the various modes offered to you. Using FLEX, you will be able to efficiently configure and modify all control units: engine, transmission, safety devices and others in the repaired vehicle.

ODB - Provides access to the most commonly used ODB standards, including:

• ISO 15765:2 x CAN

• ISO 99141-2 & ISO 14230: 2 x K-LINE, 1xL-LINE
• Ethernet
• SAE J1850 PWM, VPW
• SAE J1708

BENCH - access to OBD on the bench or even a full backup by reading and writing without opening the control unit:

• Bosch Tricore engine control units

• Transmission control units

BOOT - in this mode, various modes are supported:

• BDM MPC5xx

• Bootloader C167
• Bootloader ST10F2xx
• Bootloader TC17xx
• Bootloader Nexus MPC/SPC 5xxx
• JTAG Renesas SH705x
• JTAG Renesas SH72xxx
• AUD NEC 76F00xx


PERSONALIZE YOUR FLEX HW WITH VARIOUS SW PACKAGES:

Master:

• Software Flex Infineon TC17xx/TCXXX Master = 1800.00 Eur + VAT
• Software Flex OBD Bench ECU Master = 2400.00 Eur + VAT
• Software Flex TCU OBD + Boot + Bench Master = 1700.00 Eur + VAT
• Software Flex Motorola MPC5xx Master = 650.00 Eur + VAT
• Software Flex Nexus MPC5xxx Master = 500.00 Eur + VAT
• Software Flex Full package Master = 4900.00 Eur + VAT
• Software Flex Renesas SH7xxxx Master = 500.00 Eur + VAT
• Software Flex Siemens C165/166/167 Master = 250.00 Eur + VAT
• Software Flex ST10F2xx Master = 250.00 Eur + VAT
• Software Flex NEC 76F00xx Master = 500.00 Eur + VAT
• Software Flex Bike ECU OBD + Bench Master = 350.00 Eur + VAT

Slave:

• Software Flex Infineon TC17xx/TCXXX Slave = 600.00 Eur + VAT
• Software Flex ECU (car, vans, bikes) OBD + Bench Slave = 900.00 Eur + VAT
• Software Flex TCU OBD + Bench Slave = 800.00 Eur + VAT
• Software Flex Motorola MPC5xx Slave = 300.00 Eur + VAT
• Software Flex Nexus MPC5xxx Slave = 250.00 Eur + VAT
• Software Flex Full package Slave = 1650.00 Eur + VAT
• Software Flex Renesas SH7xxxx Slave = 250.00 Eur + VAT
• Software Flex Siemens C165/166/167 Slave = 150.00 Eur + VAT
• Software Flex ST10F2xx Slave = 150.00 Eur + VAT
• Software Flex NEC 76F00xx Slave = 200.00 Eur + VAT
• Software Flex Bike ECU OBD + Bench Slave = 200.00 Eur + VAT

Choose the right accessories for your kit:

• FLEX branded suitcase - FLX8.30
• MAGBench V3 Universal Kit - FLK08
• Challenger connector - MAGP0.3.23
• Toyota Denso JTAG Solder Connector - FLX4.3

Technical parameters:

• LED indicators: operation / data transmission / errors

• PC connection: USB 2.0
• Power supply: 12V 5A / 24V 2.5 A
• Communication connections: ISO 15765:2 x CAN; ISO 99141-2 & ISO 14230: 2 x K-LINE, 1x L-LINE; Ethernet; SAE J1850 PWM, VPW; SAE J1708
• Protection measures: ESD 1kV, overvoltages, overloads, overheating, polarization, USB galvanic isolation
• Universal 15 In/Out connectors
• Voltages: internal 3.3V - 5V, external 1.8 - 5.5V
• JTAG, BDM, AUD, UART

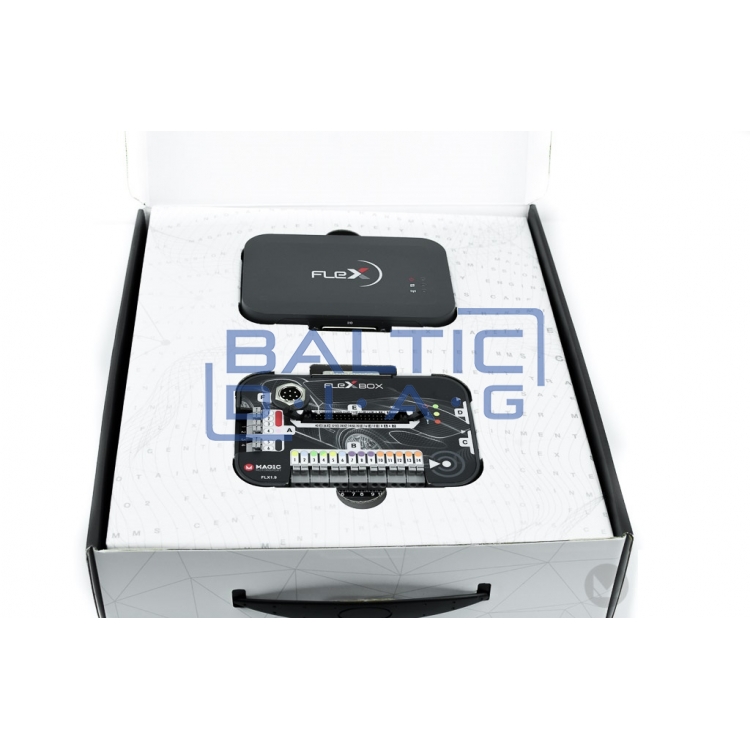

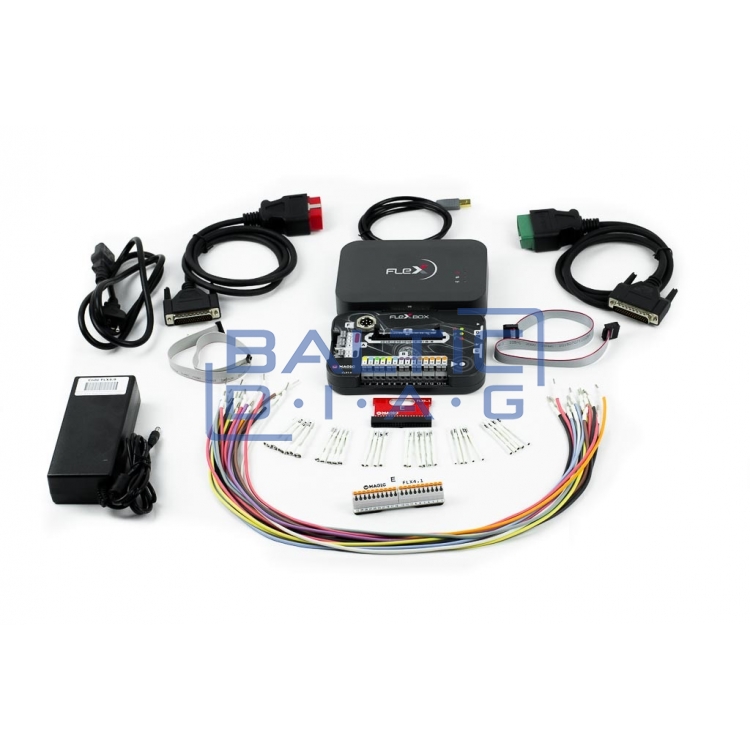

Complete set:

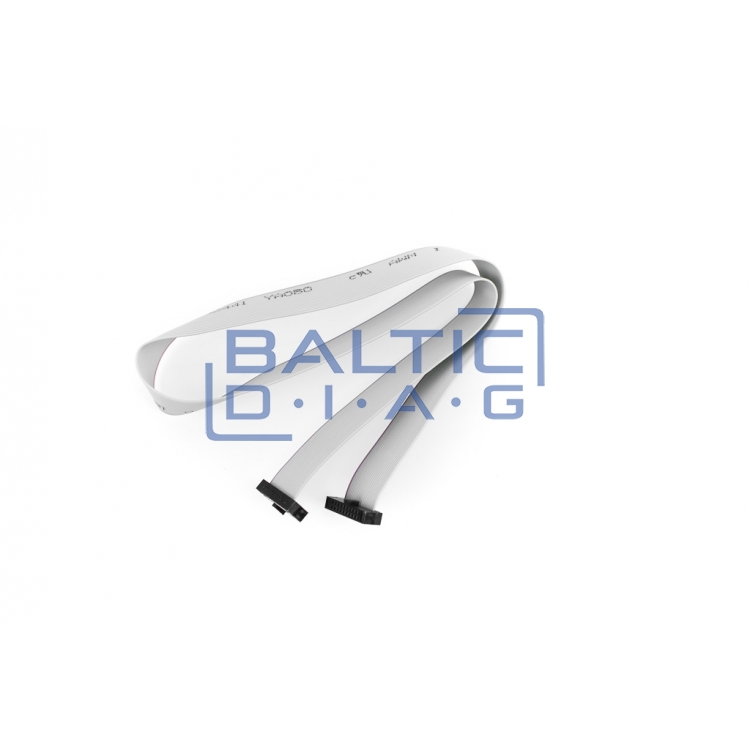

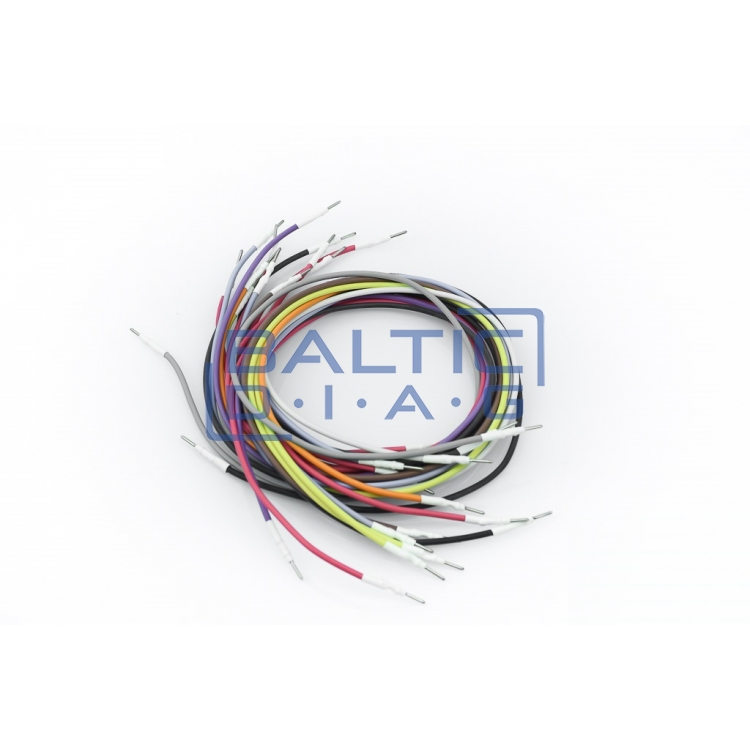

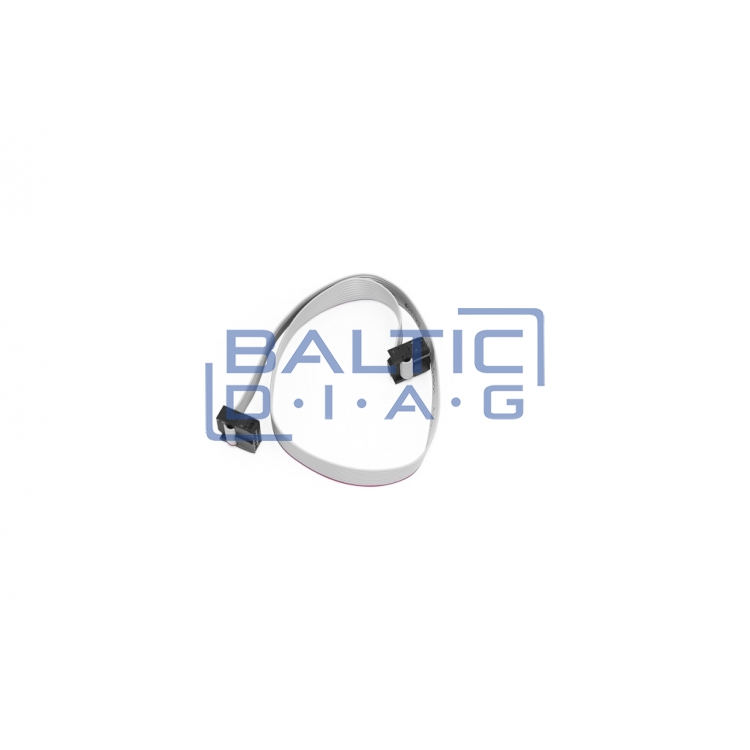

• FLK35 - Cable set: FLX3.5

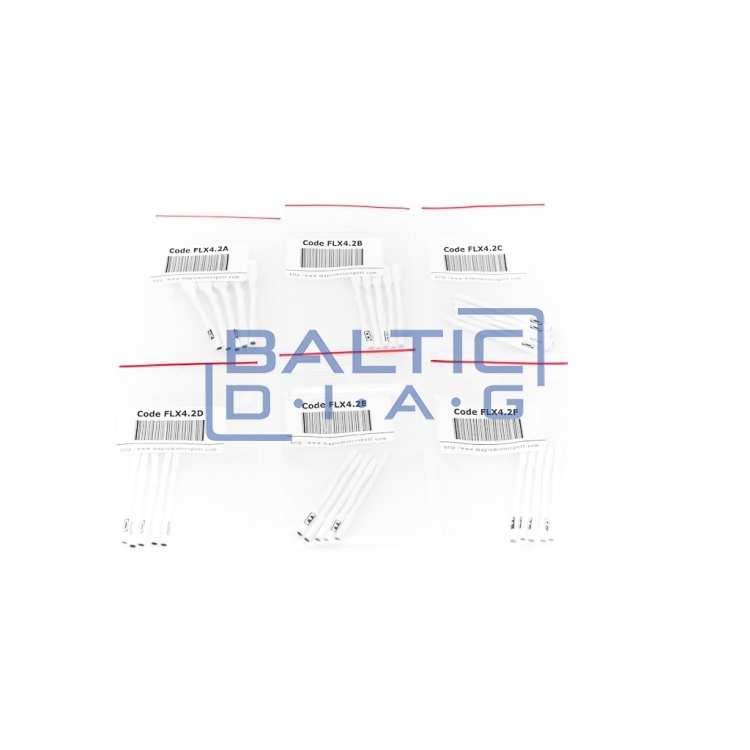

• FLK42 - Adapter set: set of 6 contacts with adapter FLX4.

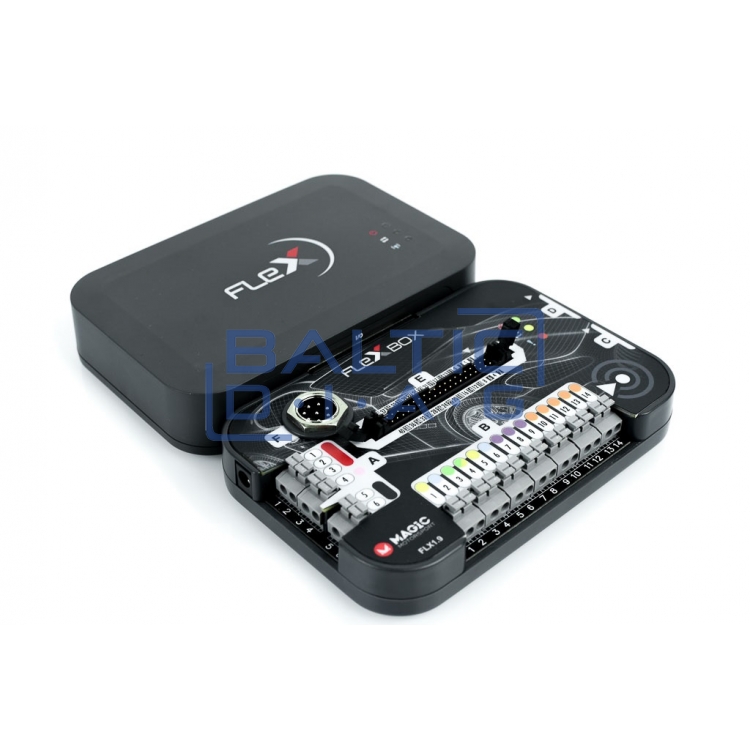

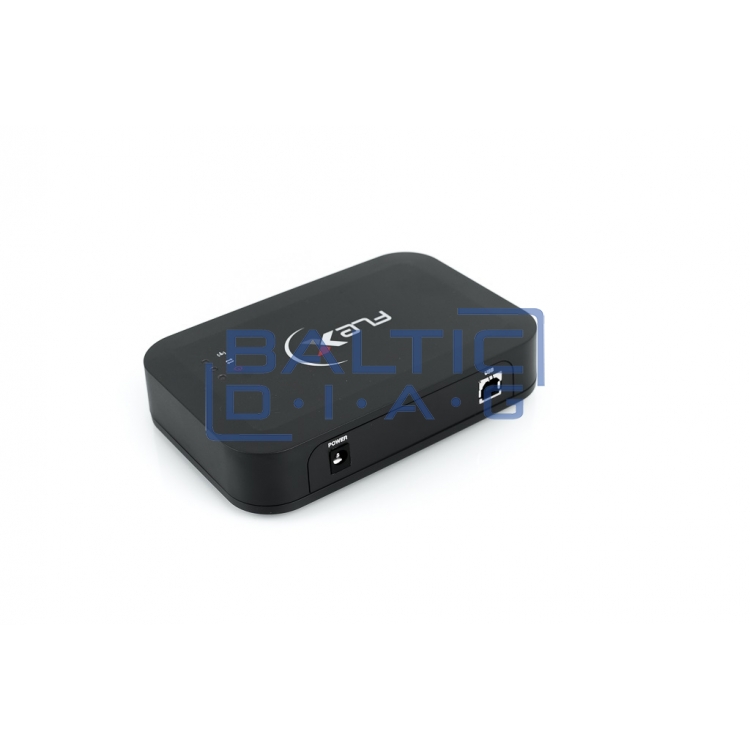

• FLX1.1 - FLEX base module

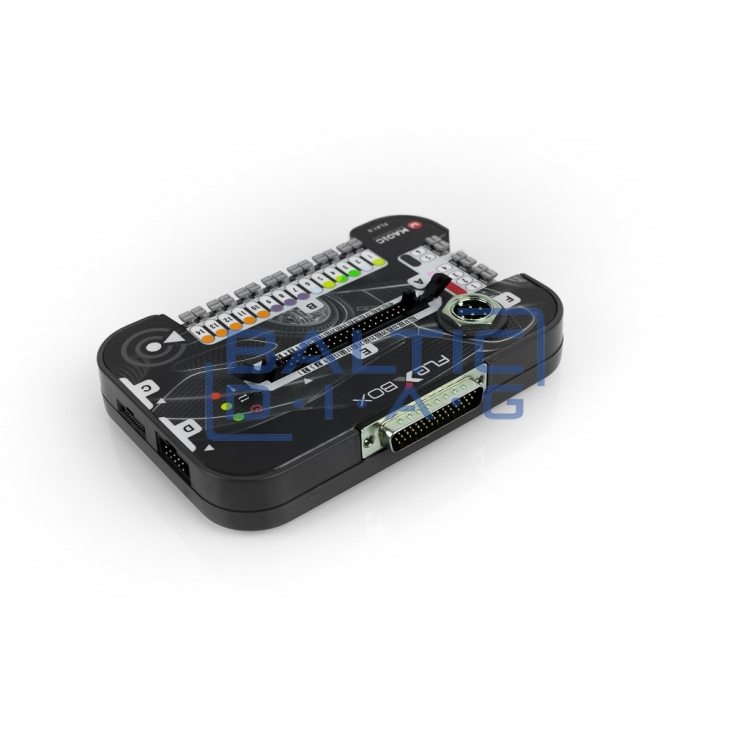

• FLX1.9 - FlexBox module for FLEX

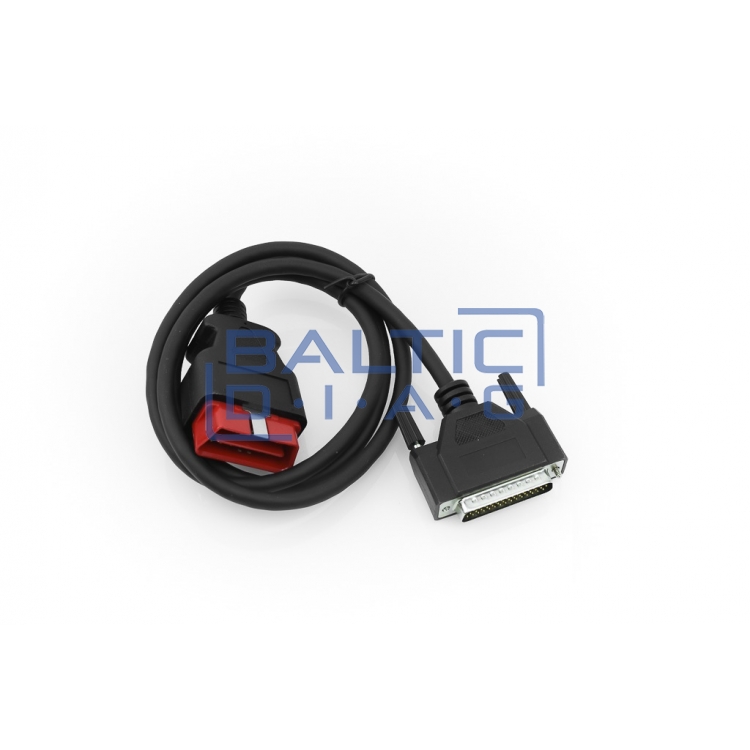

• FLX2.10 - OBD connection cable: FLEX to CAN/Kline RED
• FLX2.11 - OBD connection cable: FLEX to ENet GREEN
• FLX3.9 - PC connection: USB 2.0 AM-BM BLK 1.8m

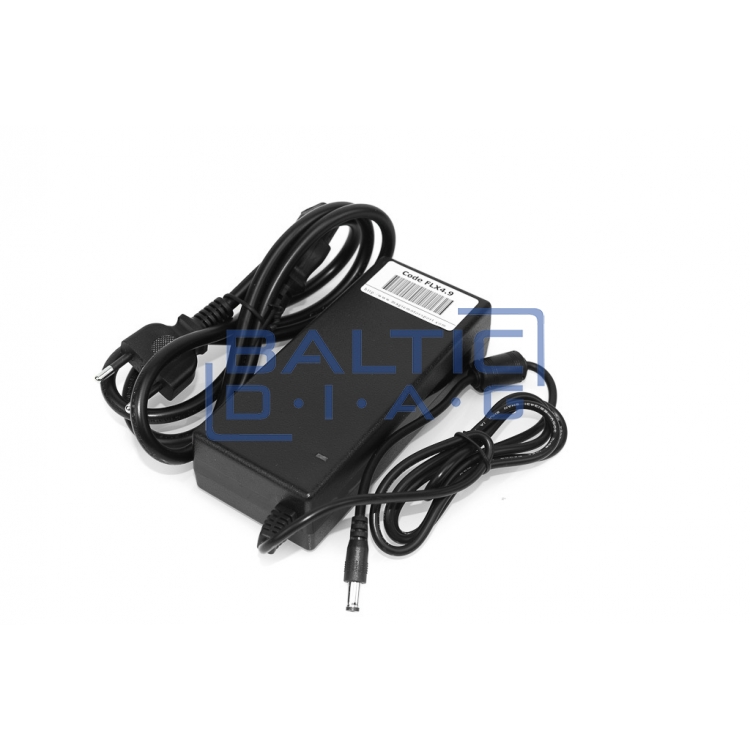

• FLX4.9 - Measuring connector 110-240V 14V 5A
• FLX3.3 - Connector cable: FlexBox port C to NEC 7F00 XX
• FLX3.4 - Connector cable FlexBox port D to BDM MPC5xx

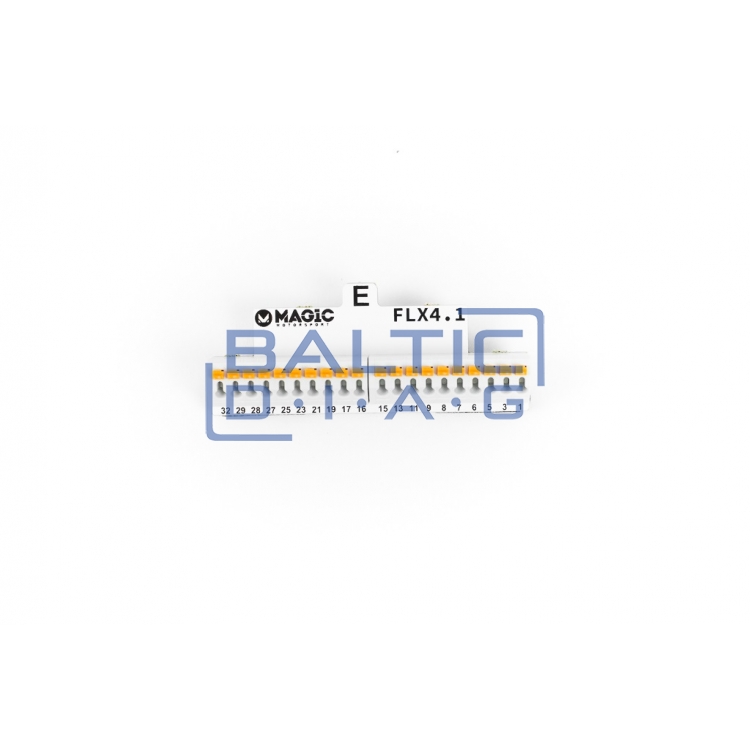

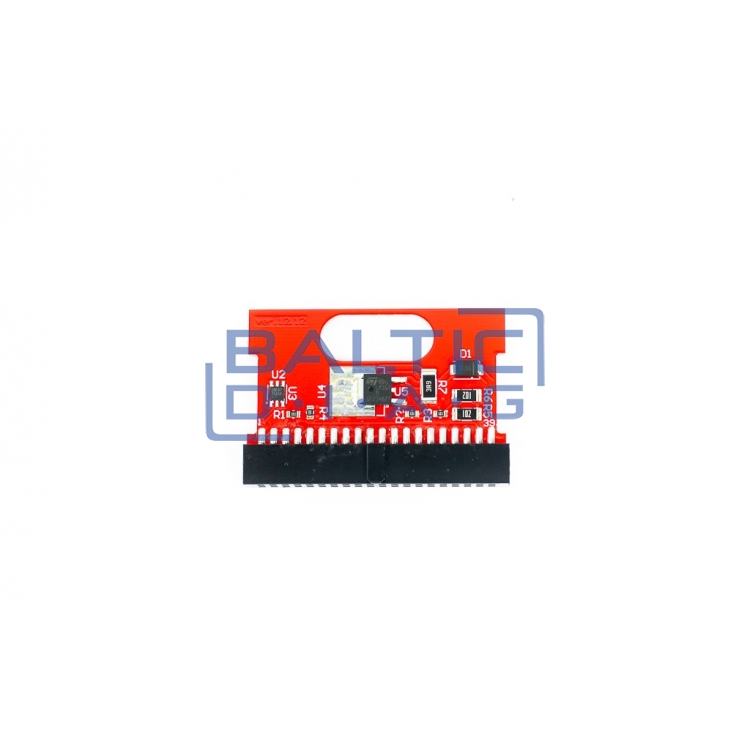

• FLX4.1 - FlexBox port E 40 pins adapters for FLX3.5
• FLX9.1 - Flex & FlexBox Diagnostic Adapter
