Boat and jet ski diagnostic equipment OBDStar D800

Boat and jet ski diagnostic equipment OBDStar D800

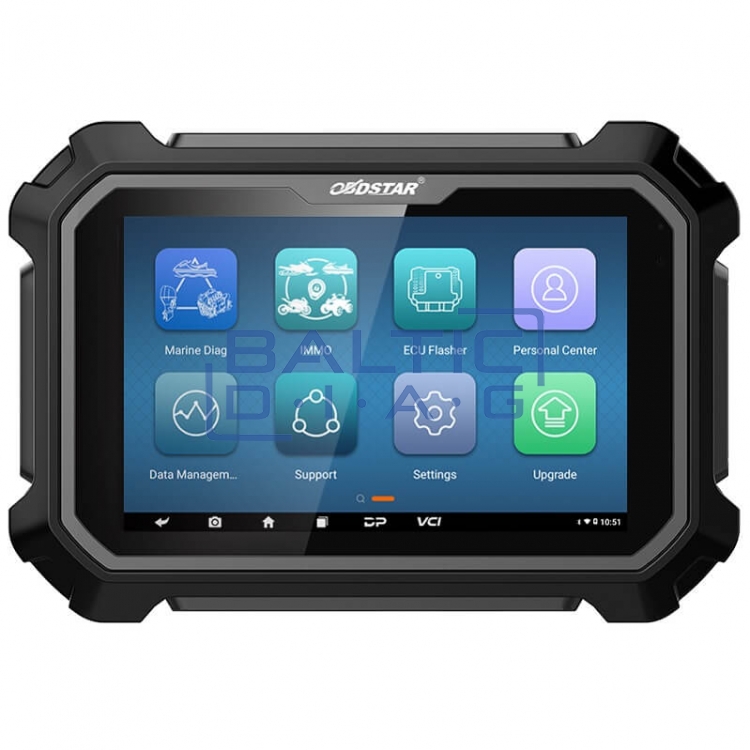

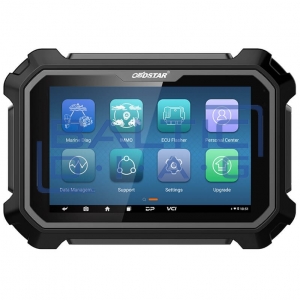

D800 is a new generation of diagnostic equipment focused on water transport. This smart diagnostic is made using a Samsung Exynos processor and has an 8" touch screen that conveys extremely fast and convenient control of the tablet. The D800 diagnostic tool comes with the latest 3.0 APK firmware, which offers various additional ease of use, such as automatic vehicle model detection, quick fault code scan and dashboard list, at the touch of a button. Equipped with ultra-fast update function and built-in auxiliary functions, it is one of the best assistants in the marine transport workshop.

Features:

• Android 5.1.1 operating system
• Simple and easy to understand art that is easy to understand and use
• Provides full diagnostic functions such as: error scanning, error clearing, live parameter monitoring, various component activation, coding, setting adjustment, etc.
• The possibility to adjust the layout of the working areas according to your wishes and needs
• Monitor, record and view live parameters. This will allow you to quickly and accurately identify malfunctioning sensors or malfunctions of various components
• Wi-Fi access to the Internet, possible equipment updates, at the push of a button
• Ability to have online access to the OBDStar technician team

Functions:

• The OBDStar mobile application has such functions as visual information about the location of the ODB diagnostic connector, error code scanning, technical equipment overlay, service functions (resetting the service service interval), basic diagnostic functions. Working with the D800 will make your repair work much easier and faster
• Exclusive database of electrical schematics and electronic components
• The information source is being changed. Option to choose display method: text, line chart, column chart
• Auto Vehicle Scan, Active GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initializations, Gear Alignment, Merc TDS Reset, Remote Control Parameter Reset, Engine Reference Settings. You will be able to set, tilt limit, SMUX configuration, steering wheel centering, system calibration, torque adjustment and other various functions

Supported manufacturers:

Evinrude, Hidea, Honda, Johnson, Kawasaki, Mariner, Mercury / Mercury racing, Parsun, Sea-Doo (BRP), Selva Marine, Seven Marine, Suzuki, Tohatsu, Yamaha, etc.

Additional manufacturers available:

Caterpillar, Cfmoto, Crusader Engines, Cummins Marine, Cummins Mercruiser Diesel, Daedong, Daf Marine, Fnm Marine, Ford Marine, Fpt (Fiat Powertrain Technologies), Hyundai Seasall, Ilmor, Indmar, John Deere Marine, Kodiak Marine, Kohler Power Systems, Lombardini Marine, Malibu, Man Marine, Marine Power, Mtu, Panther Airboats, Pcm Marine Engines, Perkins, Scania Marine, Sisu, Steyr Motors, Toyota Marine, Vm Motori, Volkswagen Marine, Volvo Penta, Yanmar...

Constantly - additional functions are being developed for various manufacturers.

Technical data:

• Operating system: Android 5.1.1
• Processor: Exynos 4418, quad-core ARM cortex A9
• Battery: 3700 mA, Li-ion

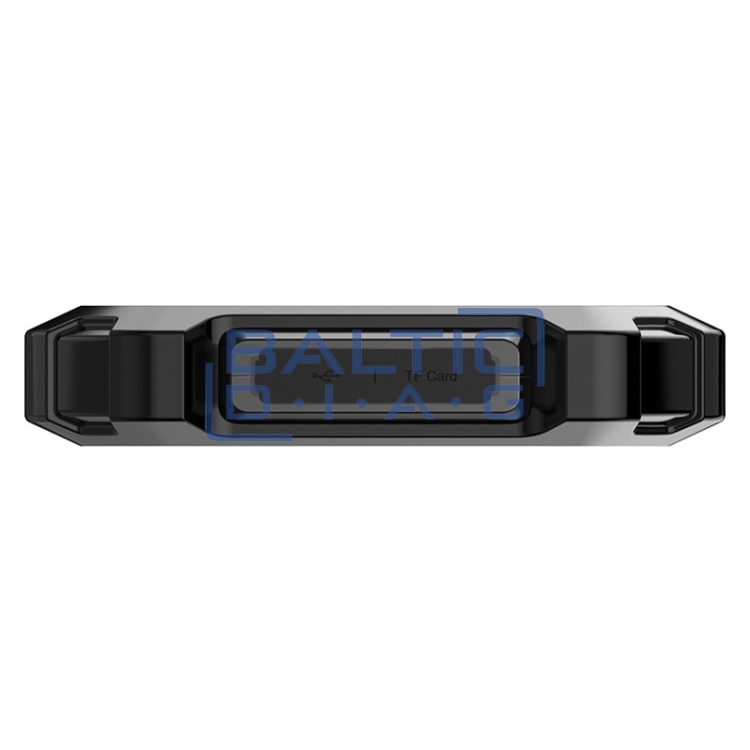

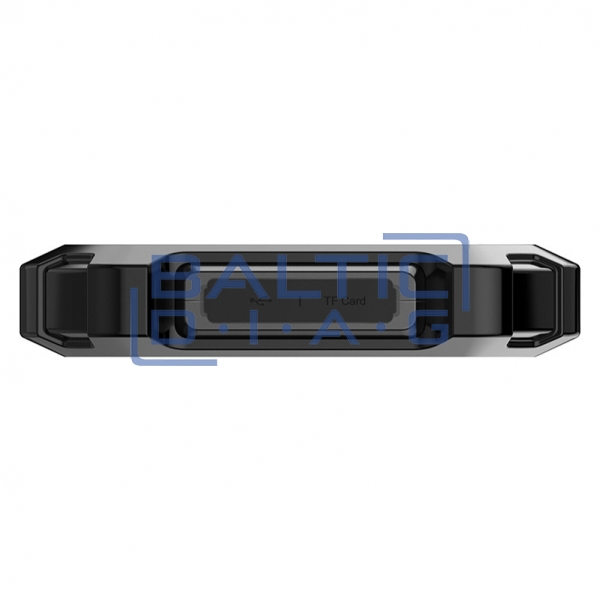

• Supported SD card: 32 GB, Micro SD
• Internal memory: 32 GB

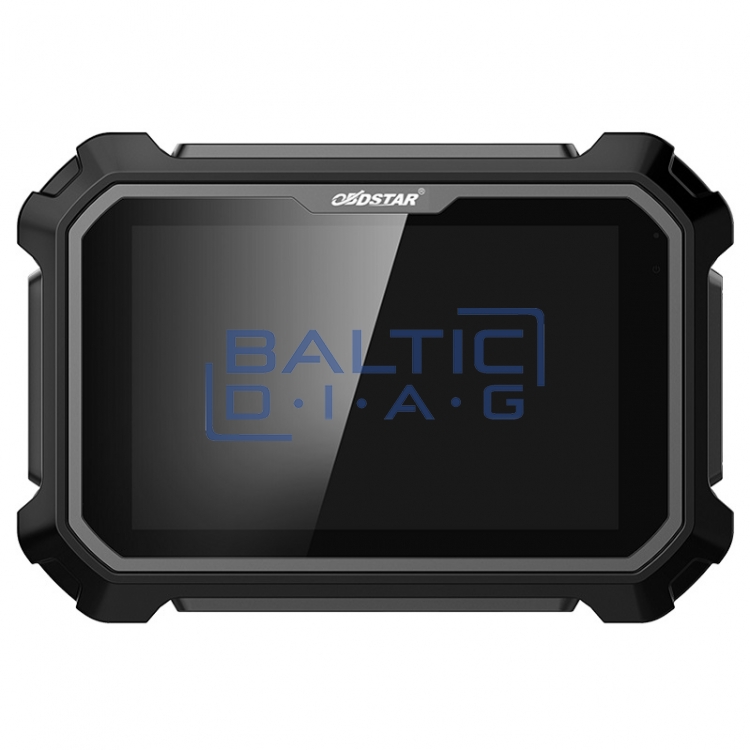

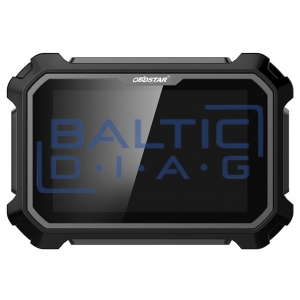

• Screen: LDC, 8" inches, touch
• LCD resolution: 1280 x 800
• Internet connection: Wi-Fi

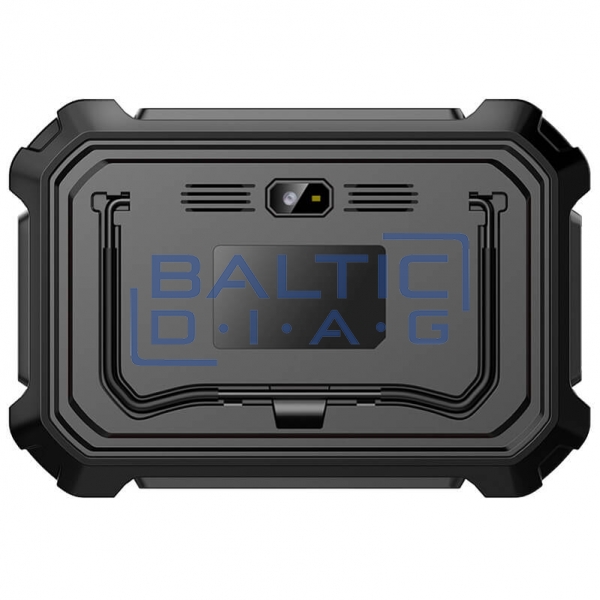

• Video camera: 5 Mpix
• Operating temperature: -20°C ~ +55°C
• Weight: 1 kg
• Dimensions: 254 x 174 x 35 mm

Accessories:

A set:

• Main diagnostic cable
• Power cable
• Multifunctional cable
• Honda connector
• BRP connector
• Yamaha connector
• Kawasaki connector
• Charger

B set:

• Main diagnostic cable
• Power cable
• Multifunctional cable
• Honda connector
• Pursun connection
• BRP connector
• Mercury connection
• Yamaha connector
• Suzuki connector
• Mercury connection
• Evinrude connector
• Kawasaki connector
• Tohatsu connector
• Tohatsu connector, other design
• Charger

Kit prices:

• Set A: EUR 2099.00 with VAT
• Set B: EUR 2499.00 including VAT
