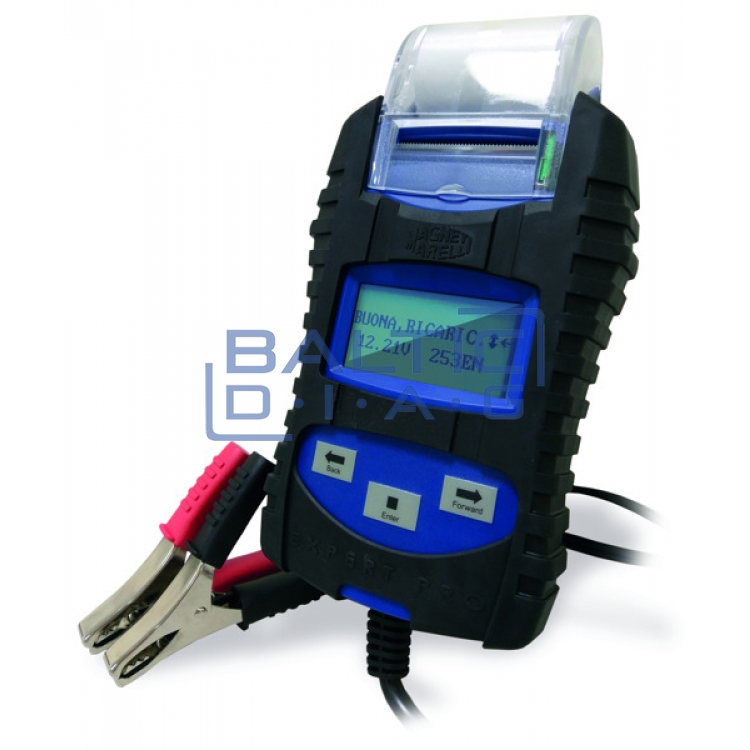

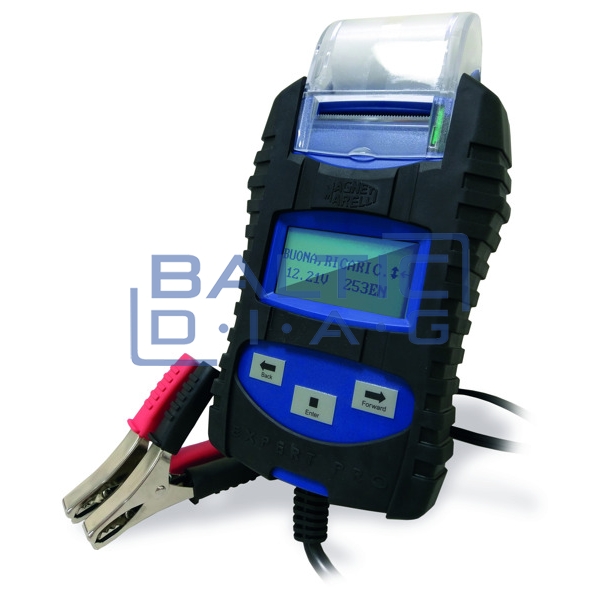

Battery and charge tester Magneti Marelli Bat Expert Pro

Battery and charge tester Magneti Marelli Bat Expert Pro

Manufacturer: Magneti Marelli, Italy; Warranty: 24 months

Description:

Bat Expert Pro is a versatile device for testing batteries and other related parts, including the generator and starter. The device monitors voltage drops when the battery is charged by the starter and other devices while the car is in use. All tests can be performed on the following batteries: gel, AGM (automatic charging), VRLA (semi-automatic charging), SLI (standard) and Start & stop. Excess current can be supplied according to SAE, EN, IEC, DIN and JIS standards. Not only can all tests be monitored through a clear, dimmable display, but results can be printed immediately thanks to the integrated printer. The printed results will provide all the necessary information about the battery, generator and voltage regulator.

Technical parameters:

- for testing 6 and 12 V batteries;

- 12 and 24 V charging systems;

- Operating temperature: 0 - 50 ° C;

- Additional power supply: 4 x 1.5 V (AA);

- Liquid crystal display;

- Polarization protection;

- Test and bar code printing, with all parameters of the battery being tested;

- Thermal printer;

- Additional PC application that allows you to scan saved test codes.

Battery tests:

- Voltage, current;

- Excess current;

- Graphical display of battery status percentage and charge level;

- Recommendations for further action (recharge, change, urgent change).

All tests can be performed on rechargeable batteries.

Initial currents can be set according to SAE, EN, IEC, DIN or JIS standard.

Car tests:

- Voltage drop during start-up;

- Zero load test (generator and voltage regulator);

- Load test (Also checking the efficiency of installed electrical equipment);

- Voltage stability test (checking the voltage regulator and generator diodes).
