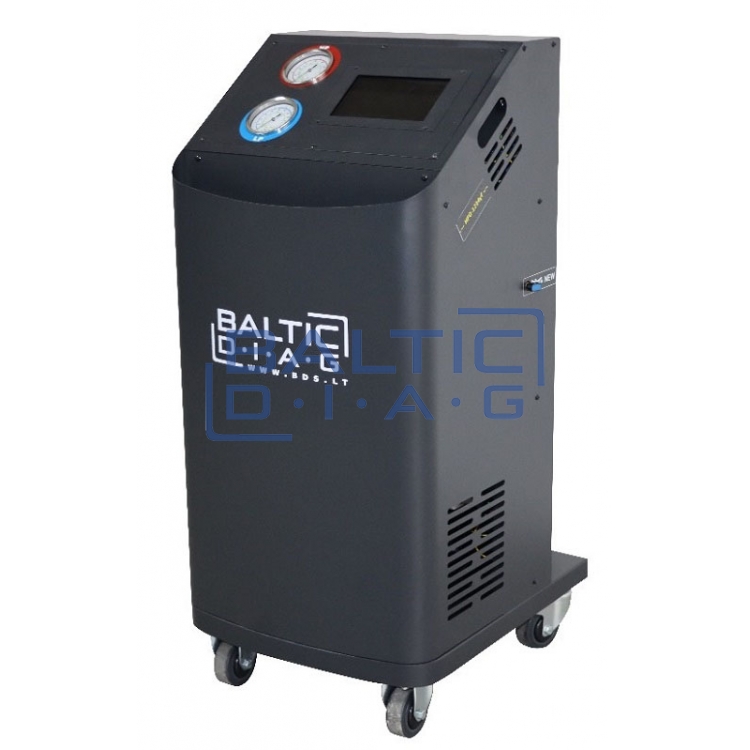

Automatic conditioner filling station BD-6S

Automatic conditioner filling station BD-6S, with optional refrigerant R134a / R1234yf

BD-6S air conditioner filling station, it is one of the initial models of air conditioner filling stations. It is perfect for people who want to start air conditioner repair work or already advanced professionals. By purchasing this station before starting work, you will have the opportunity to choose which refrigerant you want to work with. Choices of R134a and R1234yf refrigerants are available.

Key Features:

• Refrigerant filling
• Recovery
• Vacuuming
• Oil injection
• Filling the internal capacity
• Fully automatic mode

Features:

• Heating tape
• Automatic control valves
• Additional hose flushing function
• Database and free updates
• Integrated equipment pipelines
• Condensing and cooling fan installed
• The necessary pressure is created to extract the used oil
• Automatic service reminder
• Easy calibration of electronic scale
• Lithuanian language menu
• When used in conjunction with additional equipment, this air conditioning filling station can work with electric cars and hybrid cars


Technical parameters:

• Supply voltage: 230 V / 50 - 60 Hz / 1 fz
• Extraction efficiency: > 95%
• Compressor power: 3/8 HP
• Vacuum pump performance: 120 l/min
• Compatible with refrigerant: R134a or R1234yf
• Refrigerant scale accuracy: ± 10 g
• Refrigerant cylinder capacity: 12 kg
• Number of oil bottles: 2 pcs
• Sizes of new / used oil containers: 250 / 400 ml
• Maximum pressure: 20 bar
• Agent filling speed: 2 kg/min (Max.)
• Screen: 7" inches, touch screen
• High pressure manometer: 1 ~ 30 bar
• Low pressure manometer: 1 ~ 16 bar
• Average refrigerant extraction speed: 250 g/min
• Dimensions: 630 x 670 x 1060 mm
• Package dimensions: 750 x 670 x 1160 mm
