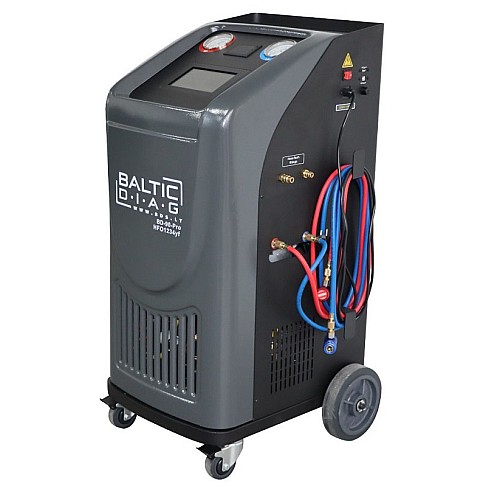

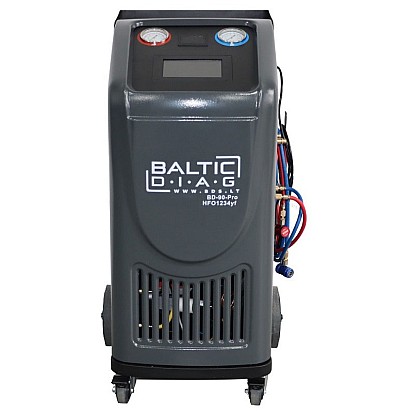

Automatic air conditioner filling station BD-90 PRO R1234yf

Automatic air conditioner filling station BD-90 PRO R1234yf

Country of origin: China, 24 months warranty period

The BD-90 PRO R1234yf Automatic Air Conditioner Filling Station is designed for the professional servicing of automotive air conditioning systems using R1234yf refrigerant. This fully automated service station enables the complete A/C system service cycle - Freon extraction, system vacuuming, leak check, oil evacuation and Freon filling. An integrated vehicle database with thousands of vehicle models allows you to quickly select the required parameters and efficiently service a wide fleet of vehicles. The touch-screen colour display ensures easy operation and the integrated printer allows you to instantly report on the work carried out to the customer.

The air-conditioning stops are fully controllable in English. In addition, more than 20 other popular languages are available: English, Russian, Polish, Estonian, German, French, Spanish and others.

After purchasing and unpacking the filling station, it is necessary to loosen the scale screw on the back. Failure to loosen this screw may result in damage to the tank load cell.

Technical specifications:

• Freon type: R1234yf
• Manual control valves: 2
• Display: 7" touch screen, colour
• Refrigerant capacity: 13,6 kg
• Measurement accuracy: ±10 g
• Freon filling speed: 2000 g/min
• Recirculation rate: 250 g/min
• HP indicator range: -1-30 bar
• LP indicator range: -1-16 bar
• Recovery rate: ≥95 %
• Compressor power: 3/8 HP
• Vacuum pump capacity: 120 l/min
• Number of oil containers: 3 pcs.
• New oil capacity: 250 ml
• Used oil capacity: 400 ml
• Accuracy of measurement of new/used oil/UV material: ±5 g
• Power supply: 220 V / 50-60 Hz
• Power: 280 W
• Maximum working pressure: 20 bar
• Dimensions: 560 × 630 × 1070 mm

The BD-90 PRO R1234yf Automatic Air Conditioner Filling Station is a reliable and efficient equipment for garages that require fast, accurate and safe servicing of air conditioning systems. Modern automatic functions, an integrated vehicle database and reliable components ensure high productivity, professional customer service and long-term reliability in heavy-duty applications.
