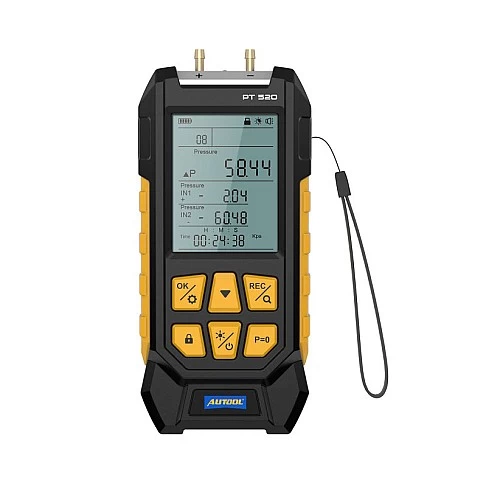

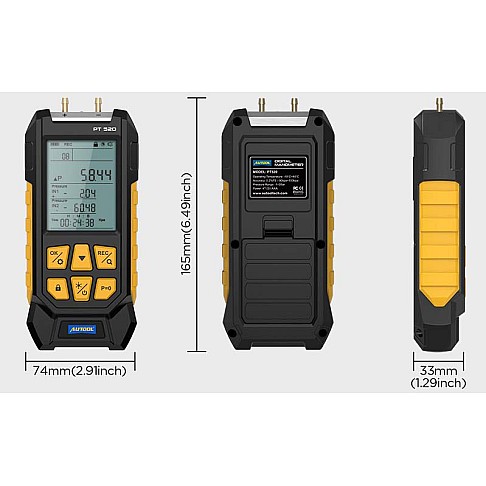

Air pressure measuring device Autool PT520

Air pressure measuring device Autool PT520

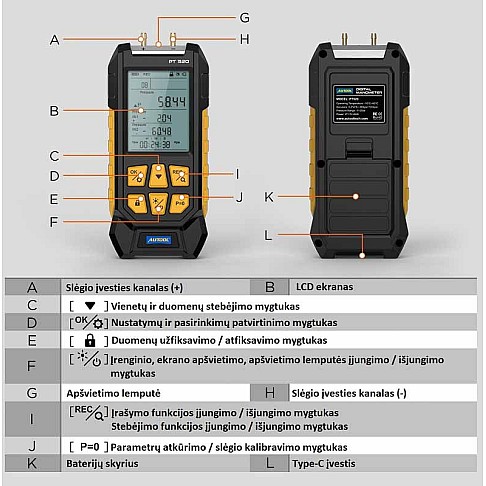

Autool PT520 device which is for intake manifold vacuum system check, negative pressure detection, brake system pressure detection, crankcase negative pressure detection, exhaust valve negative pressure detection, etc. By using various adapters, you will be able to adapt this device to different cars and their systems, also the device will ensure high accuracy of measurements and quick results. Autool PT520 will easily find a place in many car repair shops.

Features:

• High precision pressure sensor
• Ability to capture and save data
• Path measurement values are supported
• Wide range of applicability
• Various measuring tips
• Unique details
• Long warranty period
• Positive and negative pressure measurements
• Measurement of maximum and minimum pressure
• Automatic device shutdown

Measured impressions:

• Kpa | -100 ~ 200 | ±0.01
• Pa | ±100000 | ±1
• hPa | -1000 ~ 2000 | ±0.1
• Torr | -750 ~ 1500 | ±0.1
• mbar | -1000 ~ 2000 | ±0.1
• inHg | -29.52 ~ 59.06 | ±0.01
• mmHg | -750 ~ 150 | ±0.1
• inH20 | -401.4 ~ 802.95 | ±0.01
• mmH20 | -10197 ~ 20394 | ±1
• psi | -14.5 ~ 29.01 | ±0.01
• kg/cm2 | -1 ~ 2.04 | ±0.01

Technical parameters:

• Power supply: 4 x 1.5 V, AAA batteries
• Measuring range: - 100000 ~ 100000 Pa
• Measuring range: -1000 ~ 2000 hPa
• Measuring range: -100 ~ 200 kPa
• Accuracy of measurements: ± 0.25% FS
• Rounding of values: 1 pa; 0.1 hpa; 0.01 kPa
• Operating temperature: -10 °C ~ 60 °C
• Storage temperature: - 20 °C ~ 65 °C

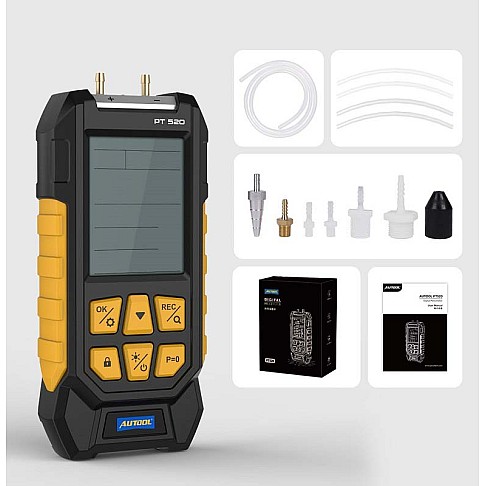

Complete set:

• Autool PT520 device
• Adapter set x 7 pcs.
• Hose, 15 cm
• Hose, 25 cm x 2 pcs.
• Narrower hose, 25 cm x 2 pcs.
• User manual
