Welding table GPPH TWT ECO 1000x600 mm
Welding table GPPH TWT ECO 1000x600 mm

Welding table GPPH TWT ECO 1000x600 mm

  • SKU: BD875249
1,076.90 €

GPPH GPPH
Prices shown include tax
Add to Cart

Send Message

Description

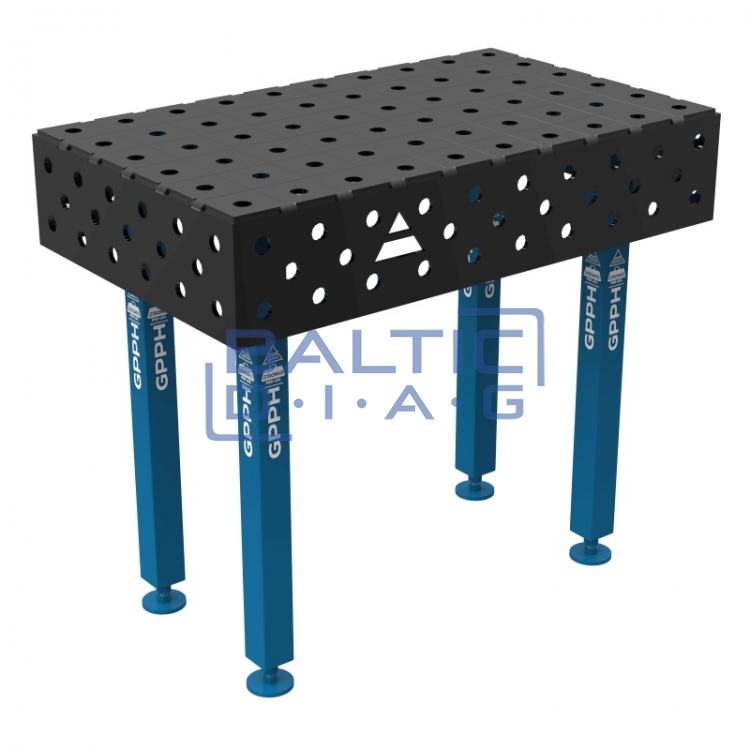

Welding table GPPH TWT ECO 1000x600 mm
Technical data:
Dimensions: 1000x600 mm
Side plate: 190 mm
Table weight: 110 kg
Load: 1000 kg
Number of legs: 4
It is possible to order legs with wheels
Description:
Thickness: 8 mm
Table legs are made of 60x60 mm profile
Stable and massive construction
Max. leg load 250 kg
Highest quality
Excellent table smoothness: (+/- 0.5 mm)
Made of: S355J2 + N
Ø16 or ø28 holes 100x100
Three mesh holes on 4 sides
Broken and milled holes to make the tool easy to assemble
Table height adjustment with standard legs approx. 880-930 mm
Milled holes 100x100 mm
Possibility to use stainless steel surfaces
The tables can be freely adjusted to expand the work surface
Manufactured according to the standard: ISO 2768-1
Code: PLUSTWT.ECO.10060
