Welding and Grinding Fume Extraction Table KMF Downdraft FRESHWELD

Country of origin: Turkey, warranty period – 24 months

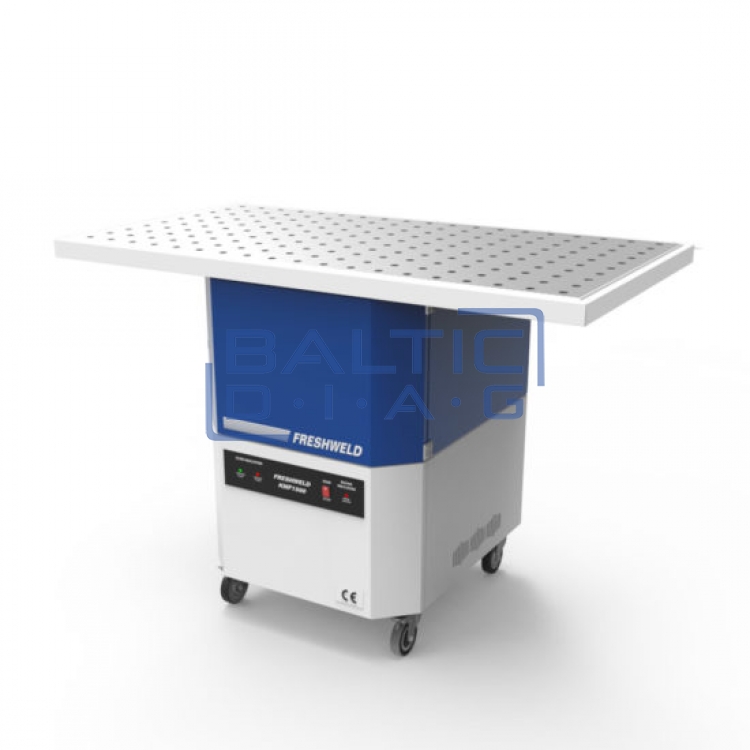

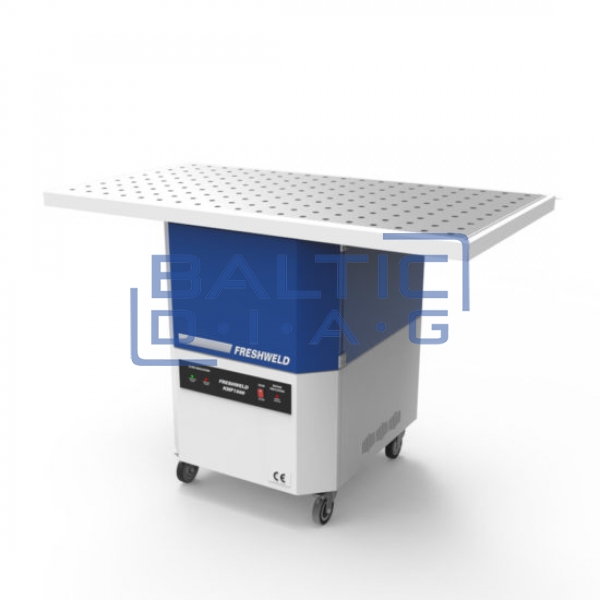

The KMF Downdraft is a mobile welding and grinding fume extraction table with a disposable cassette filter, designed for downward-directed collection of contaminated air directly from the work surface. This table is ideal for welding, grinding, leveling, and other industrial processes that produce hazardous fumes or fine dust particles. With integrated safety systems and efficient filtration, it ensures a clean and safe working environment.

Features:

• Mobile unit with lockable wheels.
• Downdraft extraction ensures fumes and dust do not reach the operator’s respiratory tract.
• Fully compliant with European Machinery Safety Regulations.
• Maintenance is only required when replacing the filter – minimizing downtime, with filter change indicators to notify when needed.
• Washable aluminum mesh pre-filter reduces fire risk caused by sparks.
• The unit will not operate in the case of incorrect phase sequence or a missing phase – protecting the motor from damage.
• A warning lamp activates if the fan rotates in the wrong direction.
• Quiet operation – only 72 dB (comparable to a vacuum cleaner).
• Supplied with a 3-meter power cable.
• Equipped with an F9 class fine filter (per EN 779), 95 ≤ Em.

Technical Specifications:

• Filtration level: low to medium fume concentrations.
• Filter: disposable cassette type (uses F9 class filter).
• Armored fan: integrated.
• Applications: welding, grinding, dust, and fume extraction.
• Power supply: 3x400V / 50Hz (other voltage options available).
• Noise level: 72 dB.
• Cable length: 3 m.
• Packaging: palletized, shrink-wrapped with cord straps.

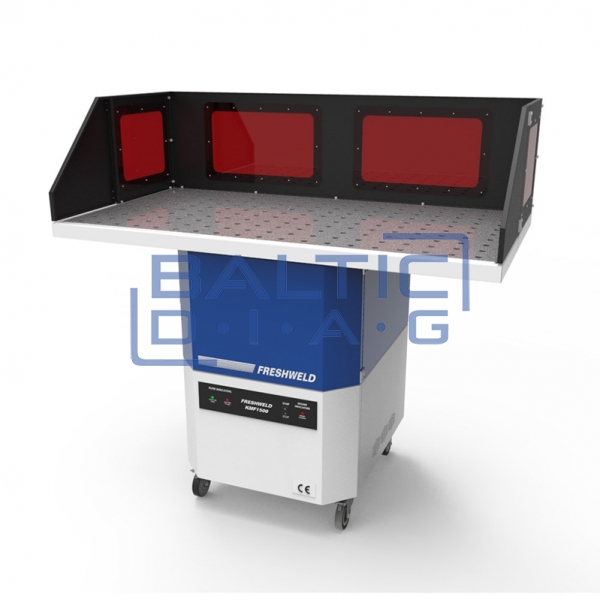

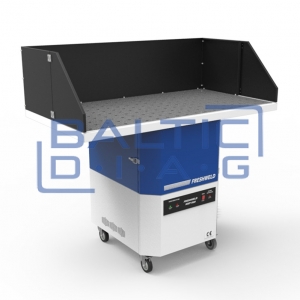

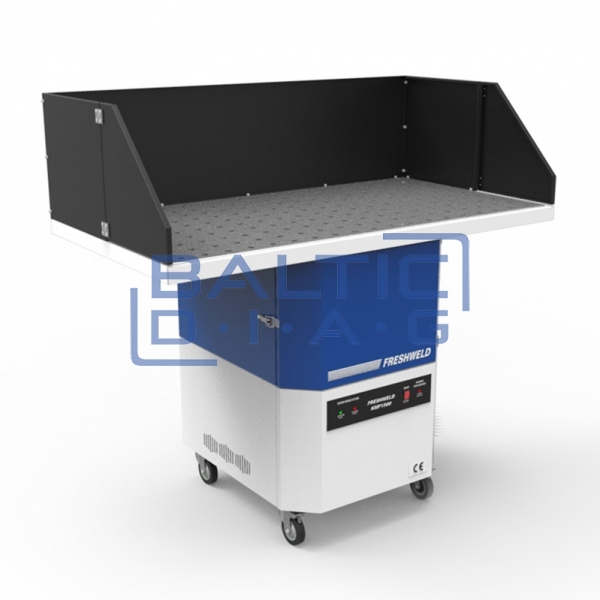

• Additional options: customizable shields (visor height and protection options available).

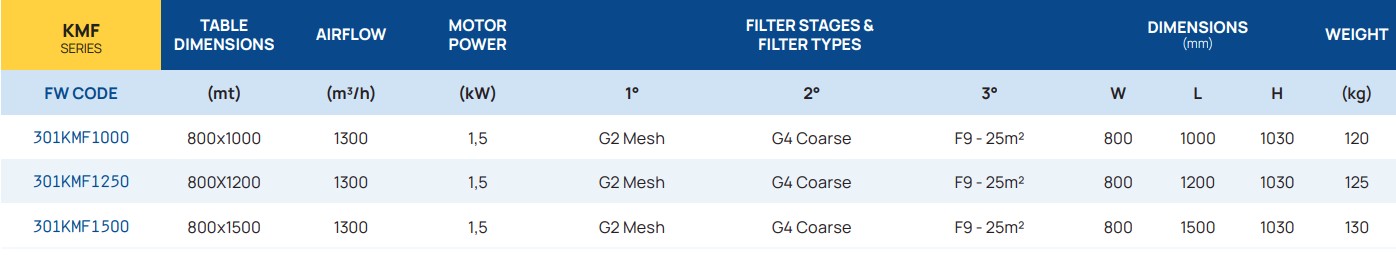

AVAILABLE VERSIONS:
