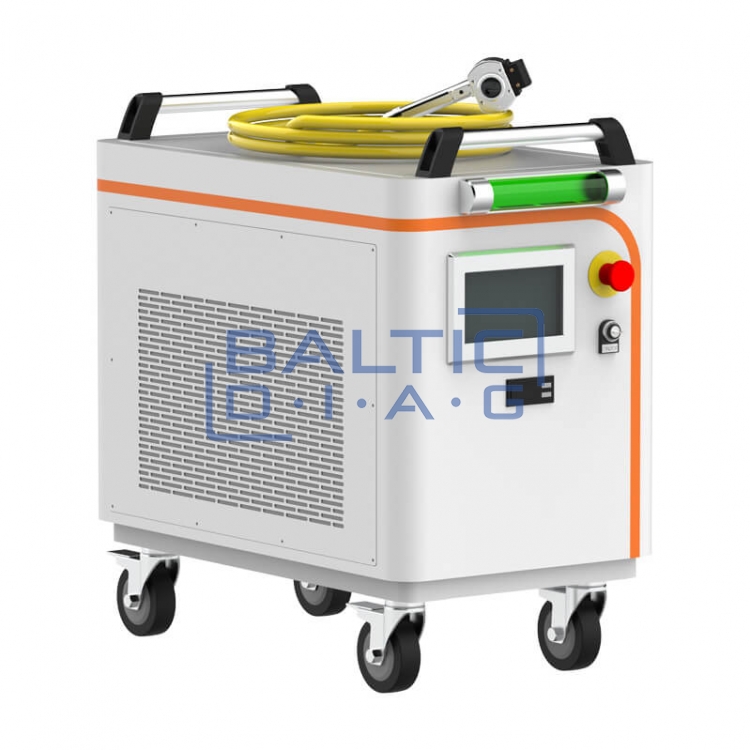

Water-cooled pulsed laser cleaning machine TPC-300W

Water-Cooled Pulsed Laser Cleaning Machine TPC-300W

Country of origin: China, warranty period - 24 months

The TPC-300W is a powerful 300W pulsed laser cleaning machine with a water cooling system, designed for the efficient removal of rust, old paint, oil, graffiti, oxides, and other contaminants from various surfaces. It can be used for cleaning wood, marble, metal, stone, rubber, and other materials, ensuring 100% surface protection without damage. This machine is widely used in industrial applications, automotive part cleaning, engine and tire maintenance, foundry refurbishment, the construction sector, and more.

Features:

• High power: 300W pulsed laser ensures fast and effective cleaning.
• Adjustable power: Can be adjusted from 10% to 100%, allowing customization for different tasks.
• Water cooling system: Ensures stable operation even during prolonged use (8-12 hours).
• Wide scanning width: Available options – 175mm, 210mm, or 250mm.
• Lightweight laser cleaning head: Weighs only 1.3 kg, making it easy and comfortable to use.
• Intuitive control system: High-resolution display with the ability to save work parameters.
• 8 cleaning modes: Allows quick switching between different cleaning settings.
• High-quality “Raycus” laser source: Lifespan of up to 100,000 hours.
• Easy mobility: Equipped with four steerable wheels for convenient transport.
• Protective construction: All components are covered with soft materials to prevent damage from impacts.
• Overheating protection: Automatic warning signal if the temperature becomes too high.

Technical Specifications:

• Model: TPC-300W
• Maximum power: 300W
• Adjustable power range: 10%-100%
• Laser wavelength: 1064 nm
• Power consumption: 2800W
• Laser source: “Raycus” 300W
• Maximum pulse energy: 15 mJ
• Pulse frequency: 10-50 kHz
• Fiber optic cable length: 10M (optional 15M)
• Scanning width: 175/210/250 mm
• Operating voltage: 220V ±10%, 50HZ/60HZ
• Electric current: 15.9 A
• Operating temperature: 10-40℃
• Storage temperature: -10-60℃
• Relative humidity: <80%
• Machine dimensions: 720x420x590 mm
• Total weight: 110 kg
• Laser head weight: 1.3 kg
• Focal length: F160, F200, F254, F300 (optional choices)
• Safety classification: Class 4

Additional Information:

• Packaging: Waterproof and moisture-resistant plywood case (730x430x605 mm), total weight approximately 145 kg.
• Protective lenses: Lifespan of 2200-2500 hours, 10 pieces included in the package.
• Operating costs: Annual lens consumption is approximately 20-30 pieces (depending on usage).
