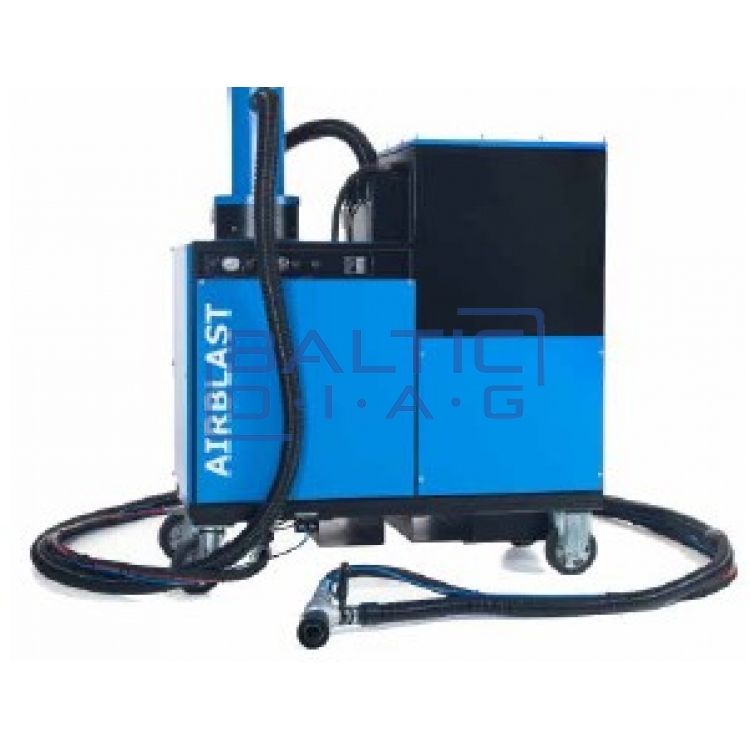

Vacuum sandblasting system Airblast AB-1060 EP / PN (dust-free)

Vacuum sandblasting system Airblast AB-1060 EP / PN (dust-free)

The vacuum sanding system of this model is available in various versions, which allows you to choose the most convenient sanding unit.

The AB-1060 is designed primarily to work with vacuum and light to medium grade abrasives such as alumina, garnet, olive sand, glass beads and plastics. With an average sanding width of up to 50 mm, this machine is mainly used for the following works: tank construction, heavy steel construction, yacht and shipbuilding, welding cleaning and finishing, marine and underground pipeline industries, thermal metallization coating, aircraft manufacturing, granite and natural stone. For cement structures, road marking cleaning, polystyrene and fiberglass production. Fully automatic and electro-pneumatic model available.

Functionality:

One device for everything, including automatic dust extraction and an abrasive reuse system.

Quick-change sandblasting nozzle for sandblasting various surfaces.

Fully pneumatic or electro-pneumatic model.

Low to medium pressure sandblasting: 1.5 bar to 5.5 bar.

Can be included in the automatic sanding system.

Advantages:

Completely dust-free, environmentally friendly device

Other workstations may be located near the sandblasting workstation.

Zero dust dispersion in the workplace.

Many common shapes can be scraped off without much hassle.

Low labor costs due to the use of used steel abrasives.

Flexible and versatile equipment.

Surface

Type of abrasive

Surface quality is achieved

Abrasive size

Average amount of work performed

Steel: corrosion, coating removal

Alumina, steel pellets, metal pellets

SA 2 ½ (SP10)

0.8 - 1.2 mm. G17 / G24

4 - 6 m2

Welding seams: steel

Alumina, steel

SA 2 ½ (SP10)

0.8 - 1.2 mm. G17 / G24

70 - 80 m / h

Technical data:

Working principle Electro-pneumatic, single-chamber Pneumatic, single-chamber

Abrasive capacity 40 l 40 l

Maximum hose length 10 m 30 m

Empty weight 560 kg 525 kg

Dimensions (Length x Width x Height) 157 x 75 x 186 cm 157 x 75 x 186 cm

Maximum working pressure

1.5 - 5.5 bar

1.5 - 5.5 bar

Recommended airflow

3500 l / min

3500 - 7000 l / min

Electric power

4000 W

Power supply

400 V

Average sanding area

50 - 75 mm

50 - 75 mm

Maximum abrasion size

1.5 mm

1.5 mm

Recommended abrasive

Alumina

Alumina

The AB-1060 kit includes:

10 m (EP), 15 m (PN) hose for sanding, abrasive compression, double control hose with trigger and all necessary connections.

Hardened aluminum head, sanding head, with flat inside, sanding head with 90 inner tube and 6.4 mm boron nozzle.

Set of standard brushes (flat brush, brushes with 90 ° inner, outer angle).

Adjustable flow and pressure gauges, pneumatic.

Instructions for use, in English.

Warranty.

Additional accessories:

Sandblasting hose extension, 10 m (PN)

Sandblasting hose extension, 15 m (PN)

Sandblasting hose extension, 25 m (PN)

Large sanding head, with Borium Carbide nozzle

Trolley with large sanding head.
