20mm 550W Metal Lathe
20mm 550W Metal Lathe

20mm 550W Metal Lathe

  • SKU: BD16575
1,424.00 €

LD LD
Prices shown include tax
Add to Cart

Send Message

Description

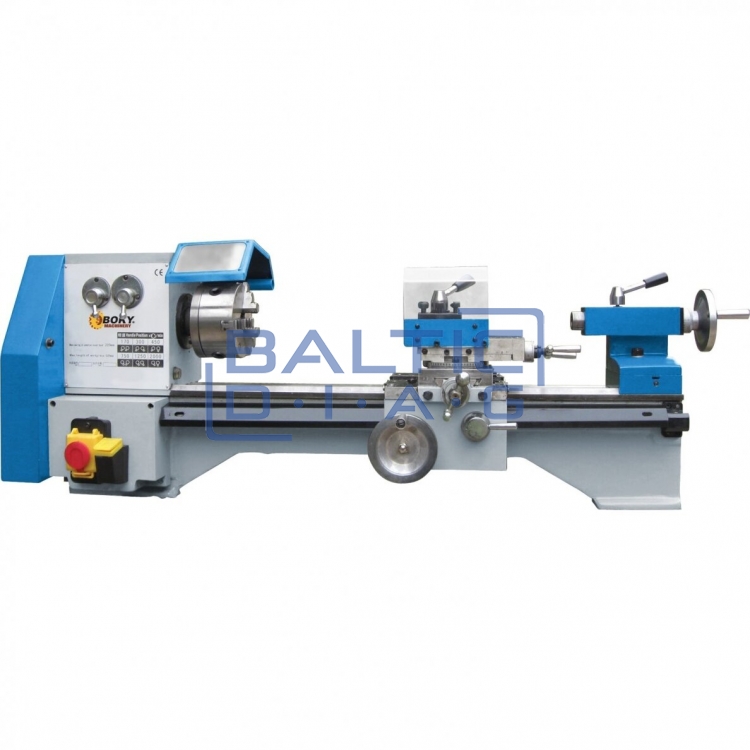

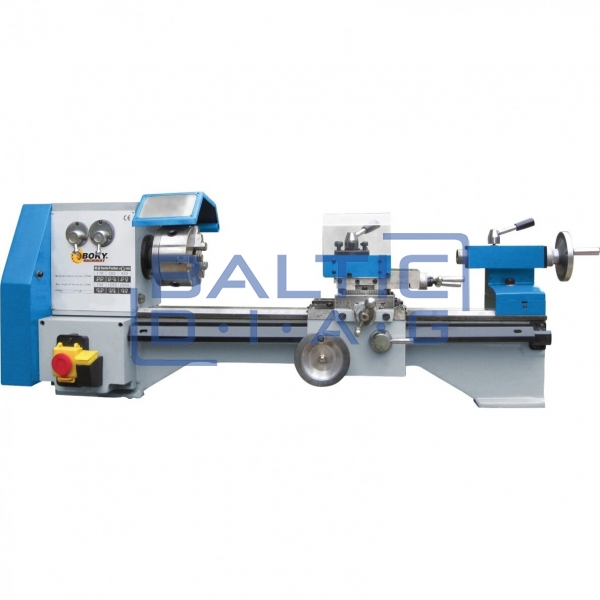

Metal Lathe 20mm 550W

Precise and powerful lathe for various metalworking tasks. Perfect for both home workshops and small businesses or professional use.

Features:
  • Voltage/power: 230V/0.37 kW
  • Center distance: 520 mm
  • Center height above bed: 110 mm
  • Maximum workpiece diameter above bed: 200 mm
  • Maximum workpiece diameter above cross slide: 122 mm
  • Spindle bore: Ø 20 mm
  • Chuck: MK3 (No.3 Morse)
  • Speed range: (6) 170 - 1950 rpm
  • Longitudinal feed: (5) 0.04 - 0.2 mm/rev
  • Metric threading: (17) 0.25 - 3.0 mm
  • Inch threading: (17) 8 - 48"
  • Cross slide travel Z axis: 115 mm
  • Rear support taper travel: 50 mm
  • Rear center taper: MK2 (No.2 Morse)
  • Dimensions: 1250 x 570 x 560 mm
  • Weight approx.: 110 kg
