USB autoscope IV automotive diagnostic oscilloscope
USB autoscope IV automotive diagnostic oscilloscope
New

USB autoscope IV automotive diagnostic oscilloscope

  • SKU: BD70468
2,199.00 €

Prices shown include tax

Send Message

Description

USB Autoscope IV Automotive Diagnostic Oscilloscope

Country of origin: Ukraine, warranty period - 24 months

The USB Autoscope IV is a new-generation automotive diagnostic oscilloscope and engine analyzer designed for displaying, recording, and analyzing signals from various automotive electronic, vacuum, and pressure systems. It is ideal for professional workshops and technicians performing comprehensive vehicle diagnostics.

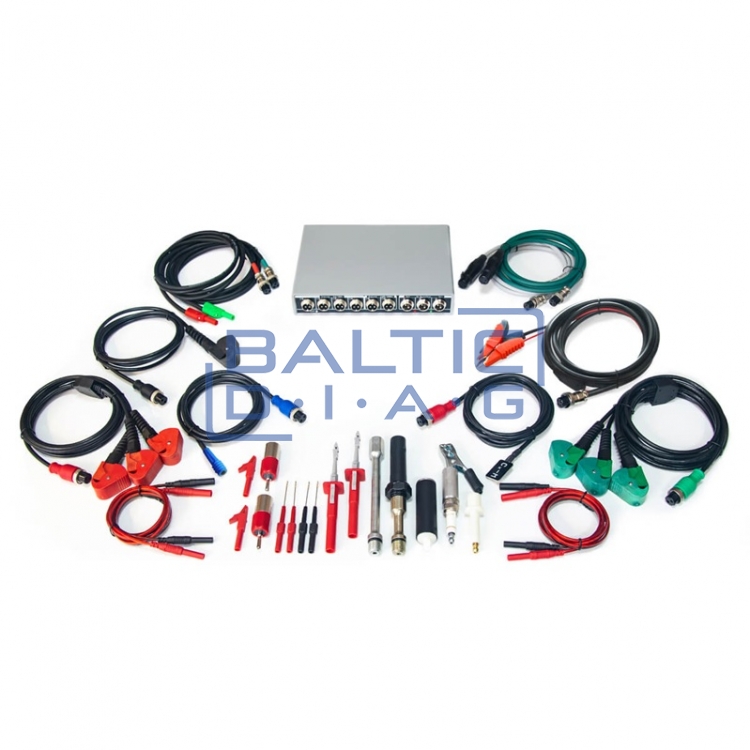

Features:
  • USB Autoscope IV – a multifunctional automotive oscilloscope connected via USB
  • Device holder – for convenient mounting of the oscilloscope during operation
  • DIS Cx6 capacitive probes – for diagnosing DIS and distributor ignition systems
  • Synchronization transducer – used for cylinder synchronization via a spark plug wire
  • Cx-M universal capacitive probe – captures voltage waveforms from the secondary circuit of unshielded ignition coil systems
  • Lx-M universal inductive probe – for diagnosing ignition systems with shielded coils
  • Spark gap tester – used in place of the spark plug during in-cylinder pressure testing
  • High voltage adapter – connects the ignition coil to the spark plug using an additional high-voltage wire
  • Px35 in-cylinder pressure transducer – displays pressure waveforms from inside the engine cylinder
  • PxLonger M14 adapter – for deep spark plug wells (M14x1.25 thread)
  • Dx vacuum transducer – captures intake manifold vacuum, crankcase low pressure, and exhaust gas flow waveforms
  • Universal cables (2 pcs) – for connecting the device to transducers or adapters
  • Measuring adapters (2 pcs) – for use with universal cables
  • Illuminated test probes (2 pcs) – with LED lighting and standard 4mm banana connectors
  • Needle probes (4 pcs) – for connecting to vehicle electrical contacts
  • Small crocodile clips (2 pcs) – for connecting to exposed terminals without damaging the wiring
  • Insulation piercing probes (2 pcs) – for minimal-damage wire piercing during testing
  • Probe extensions (4 pcs) – for reaching difficult-to-access areas
Technical specifications:
  • Connection type: USB
  • Power supply: via USB port
  • Number of channels: 8
  • Primary diagnostic applications: ignition systems, pressure and vacuum measurement, analysis of electronic signals
  • Kit type: full standard set
