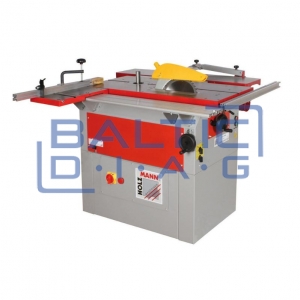

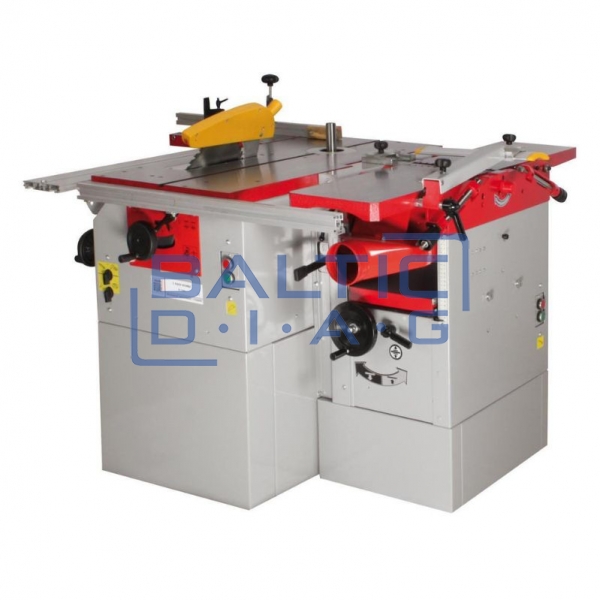

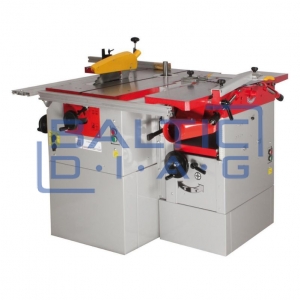

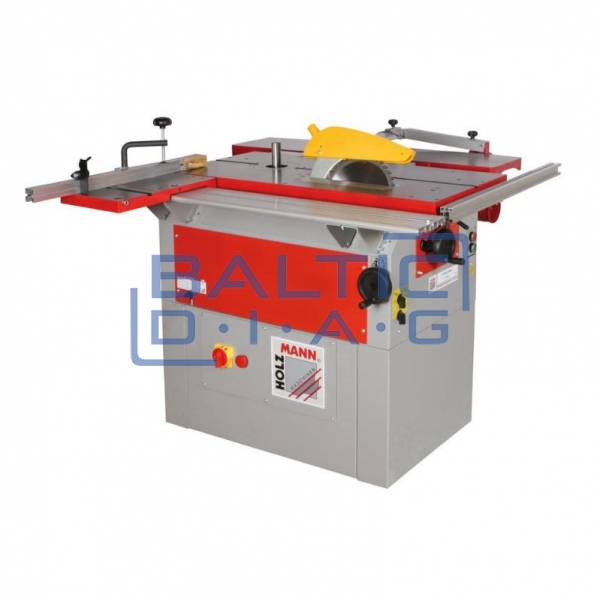

Universal combination 5-in-1 Holzmann K5260L

Universal combination 5-in-1 Holzmann K5260L

Country of origin: Austria, warranty period - 24 months

Note: Available in 400V or 230V

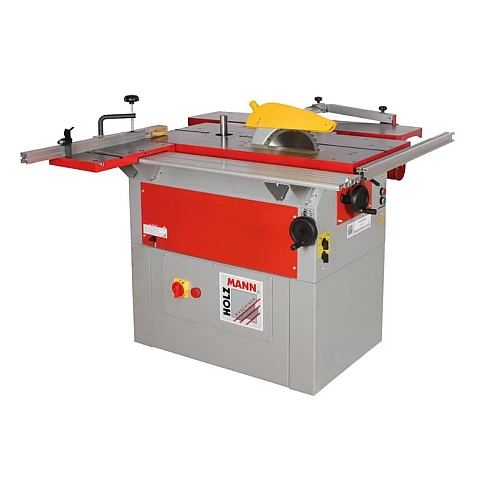

The Holzmann K5260L is a compact and versatile multifunctional woodworking machine designed for enthusiasts with limited workshop space. Five functions in one unit allow for efficient cutting, milling, planing, and thicknessing of wood. Each module is powered by a separate motor, ensuring long-lasting performance. A solid three-knife planing shaft, large cast iron table, and convenient switching between operation modes guarantee quality and comfort during work.

Functions:

• 5 functions in one machine
• Compact size and optimal price-performance ratio
• Each unit powered by an independent motor
• Quick and easy switching between operation modes

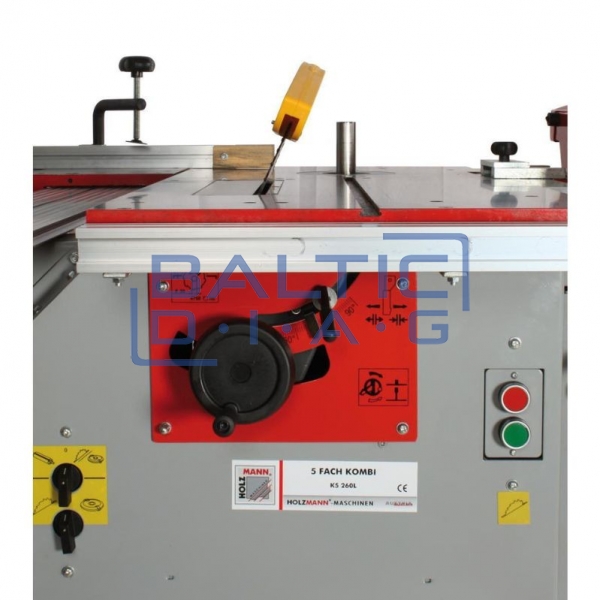

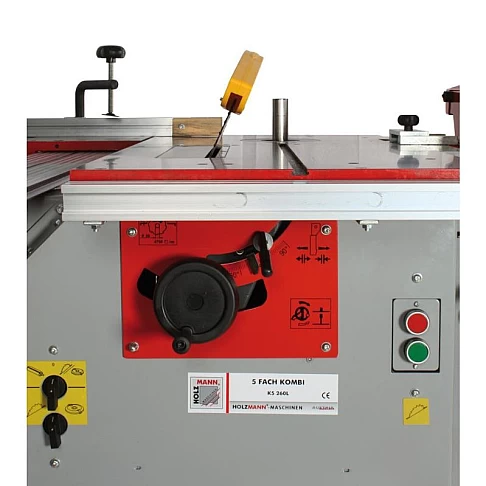

• Saw blade tilt adjustable by handwheel (90–45°)
• Large, precision-ground cast iron table with mitre gauge control
• Robust three-knife planing shaft with HSS knives

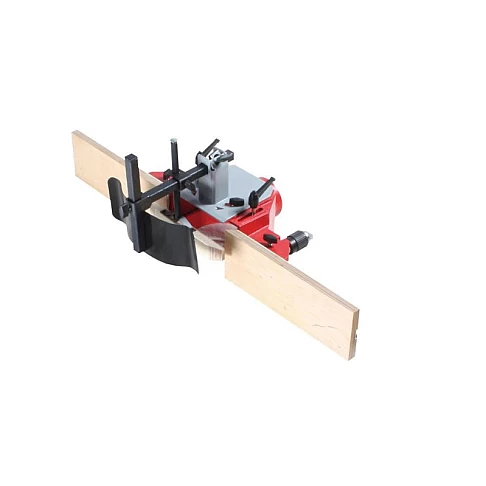

• Included: shaper hood with guide rail and protective plate, mitre gauge with workpiece clamp, end stop, rip fence, tiltable planer fence, gauge, tools

Technical specifications:

• Infeed table length: 1090 mm
• Max. planing depth: 5 mm
• Planer fence: 715 x 130 mm, tilt angle 90–45°
• Motor power S1 (100%): 2200 / 1500 / 1500 W
• Motor power S6: 3100 / 2100 / 2100 W
• Voltage: 400 V
• Feed speed: 8 m/min
• Table size: 980 x 470 mm
• Table height: 840 mm
• Sliding table: 250 x 400 mm
• Dust extraction port: 100 mm
• Max. cutting height 90°: 78 mm
• Max. cutting height 45°: 60 mm
• Max. cutting width at rip fence: 510 mm
• Thicknessing height: 5–195 mm
• Planing shaft diameter: 75 mm
• Shaft speed: 4500 rpm
• Number of knives: 3
• Spindle moulder shaft diameter: 30 mm
• Spindle speed: 6500 rpm
• Spindle stroke: 100 mm
• Max. clamping height: 80 mm
• Table opening: 145 mm
• Max. tool diameter below table: 140 mm
• Max. tool diameter above table: 160 mm
• Mitre fence: 350 x 125 mm
• Saw blade: 254 mm
• Saw blade speed: 4750 rpm
• Net weight: 375 kg
• Gross weight: 390 kg
• Packaging dimensions (W x L x H): 1170 x 1300 x 970 mm
