Two-Post Triple Parking Lift

Country of origin: China, warranty period – 24 months

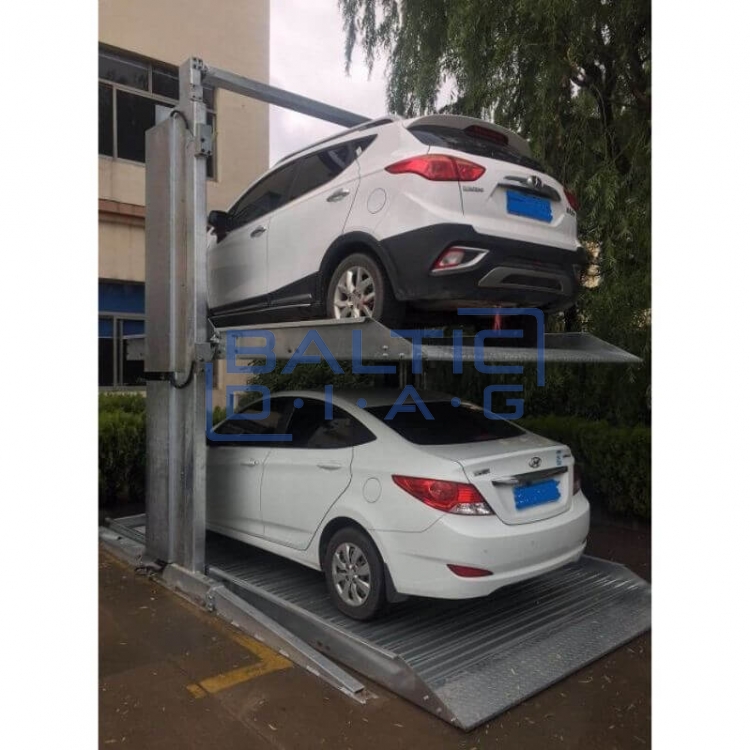

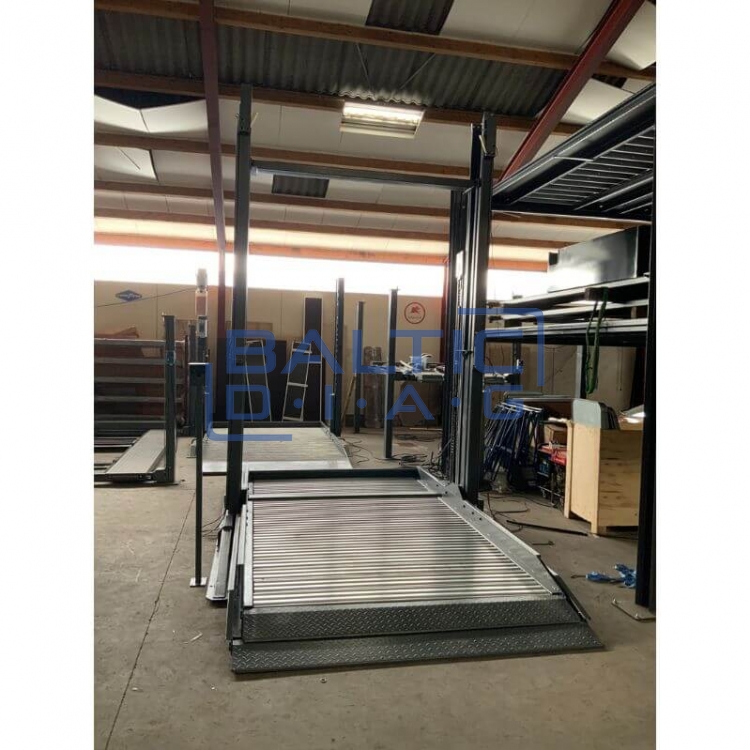

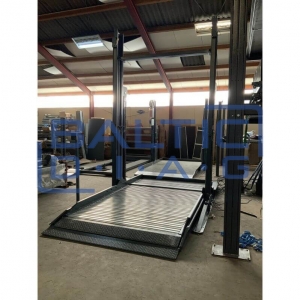

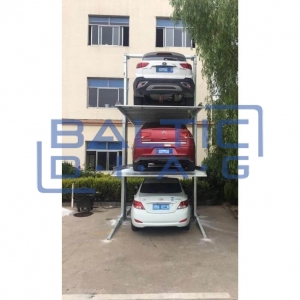

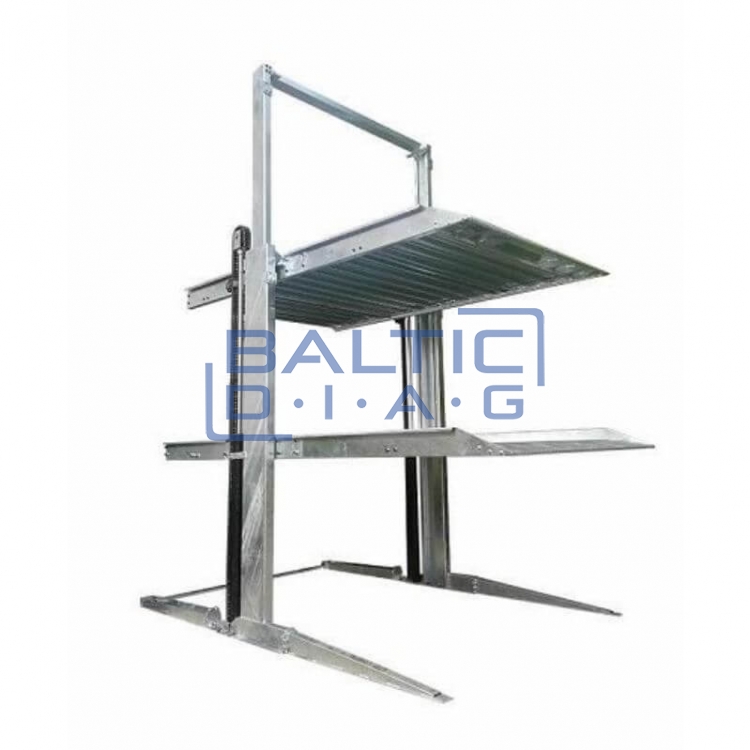

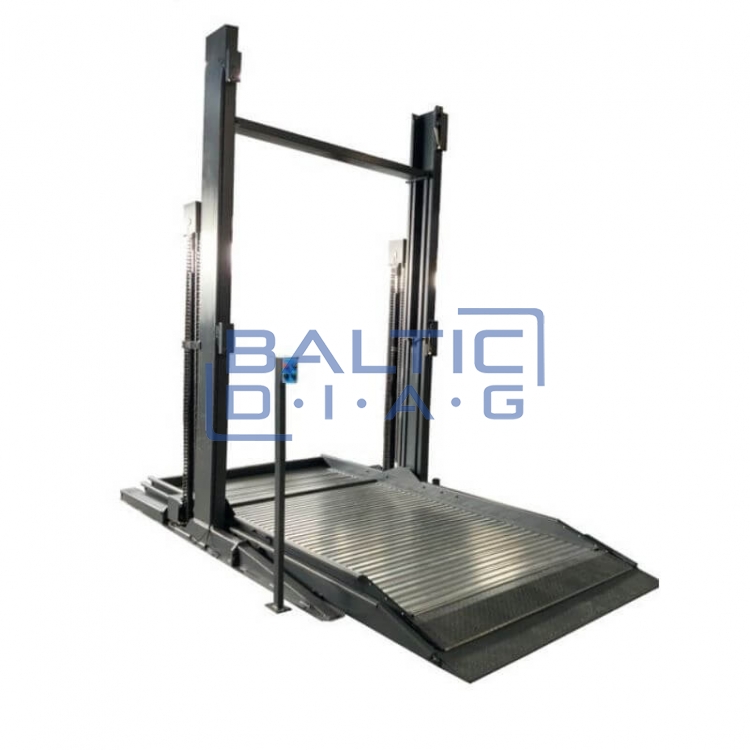

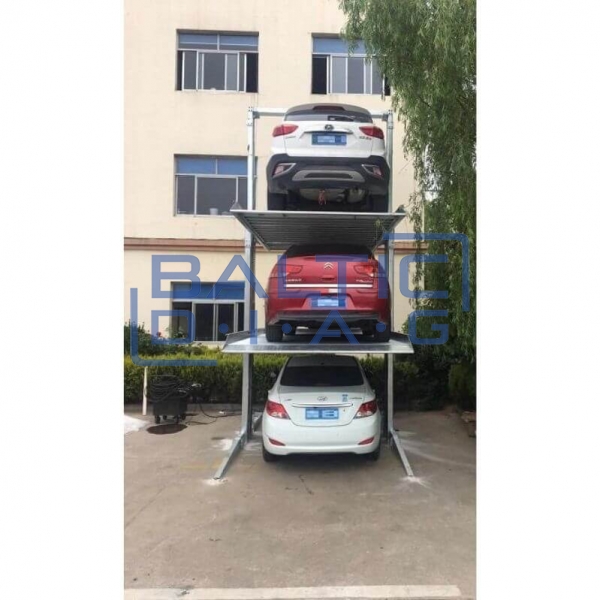

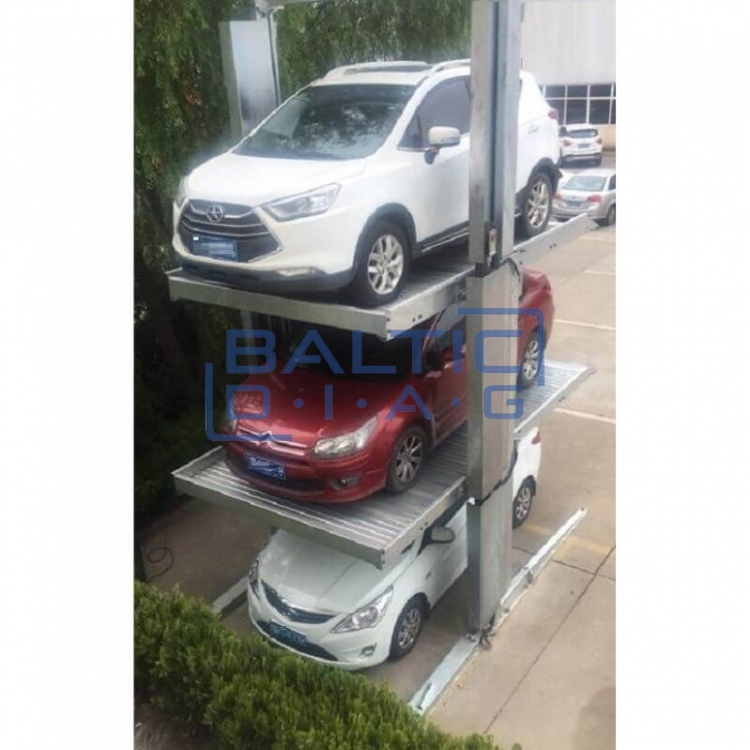

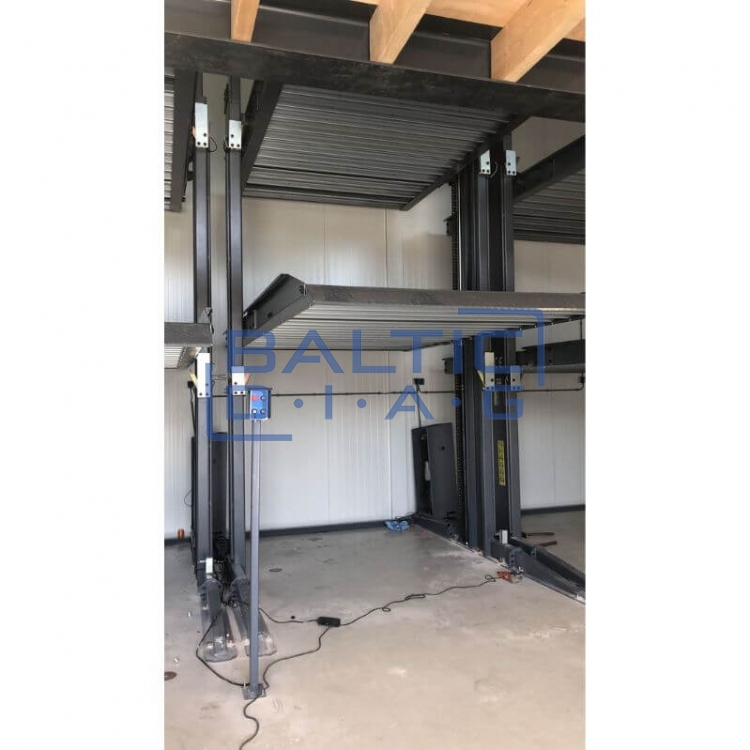

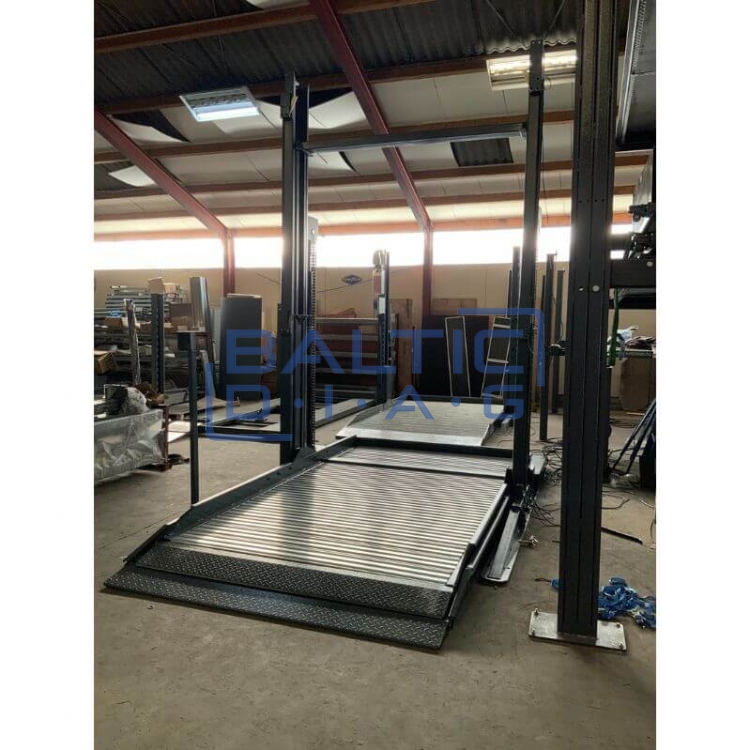

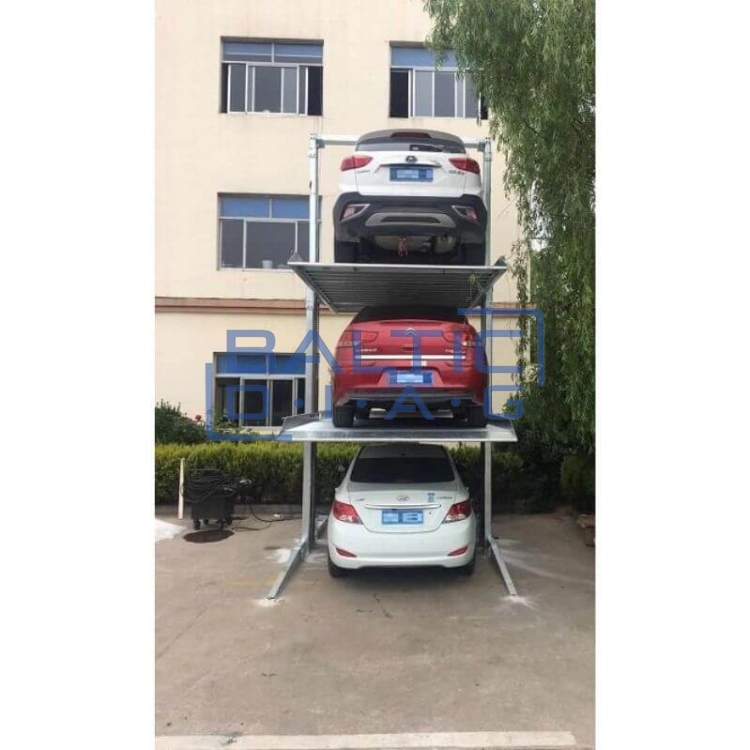

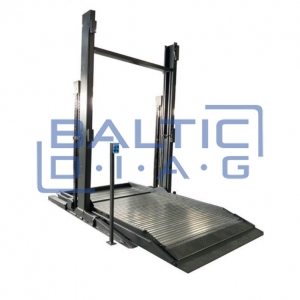

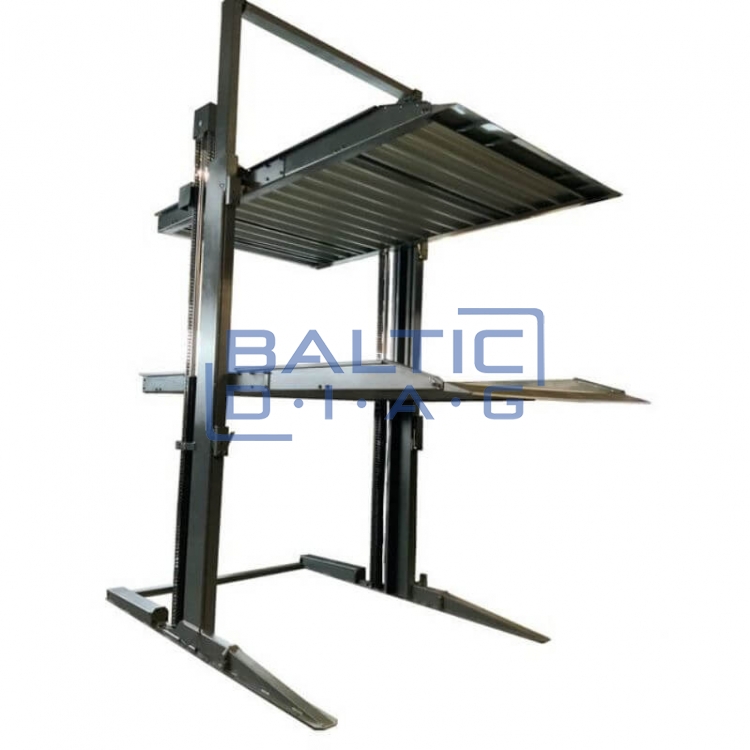

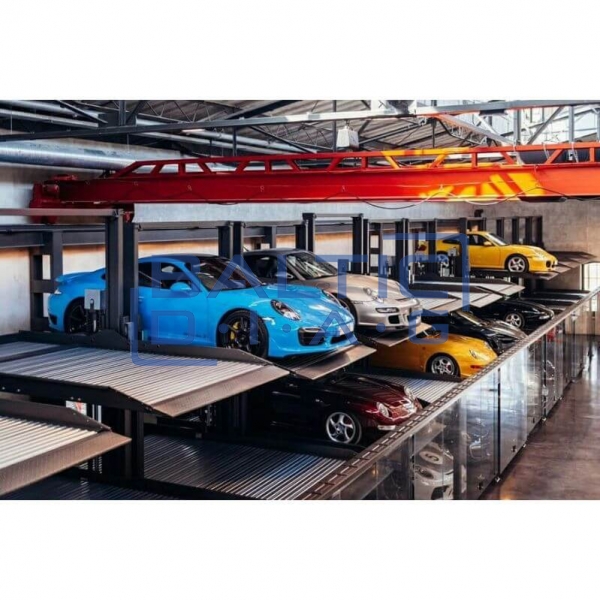

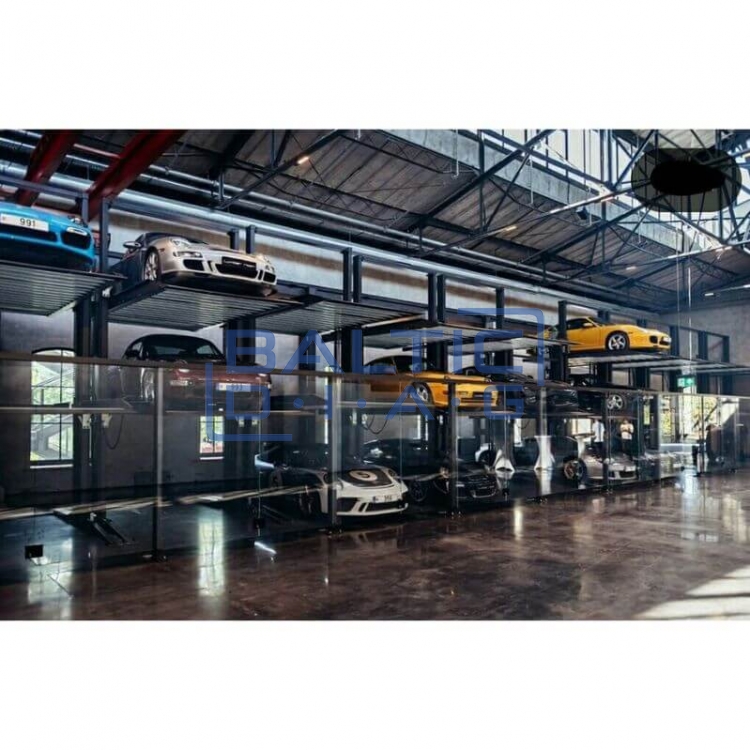

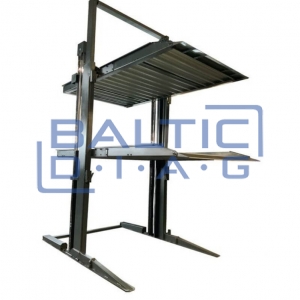

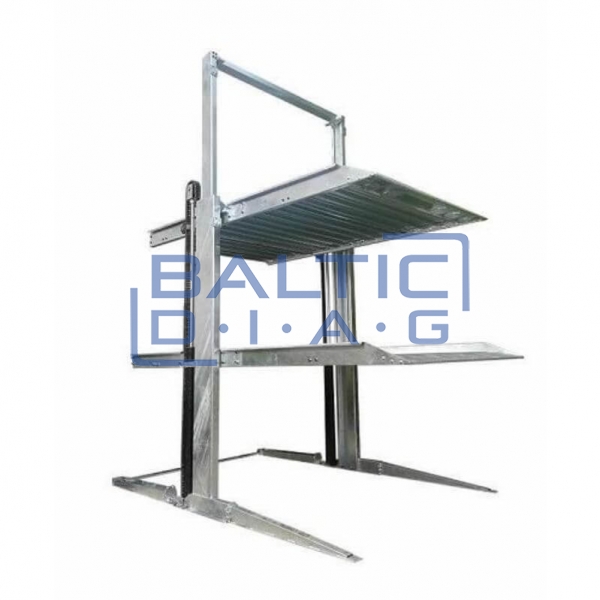

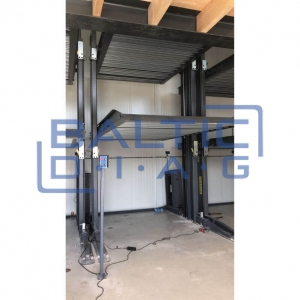

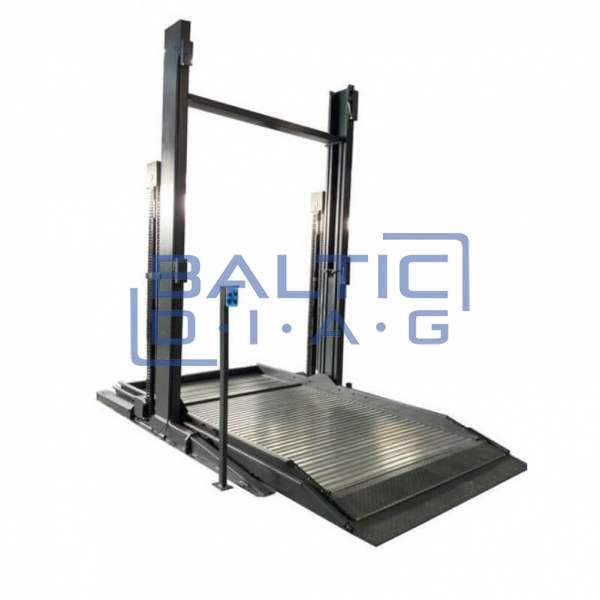

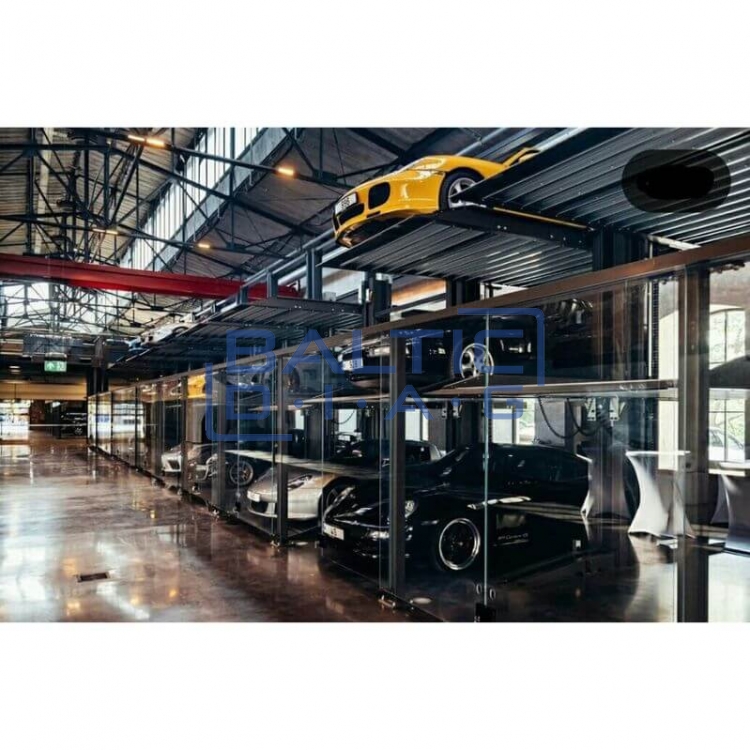

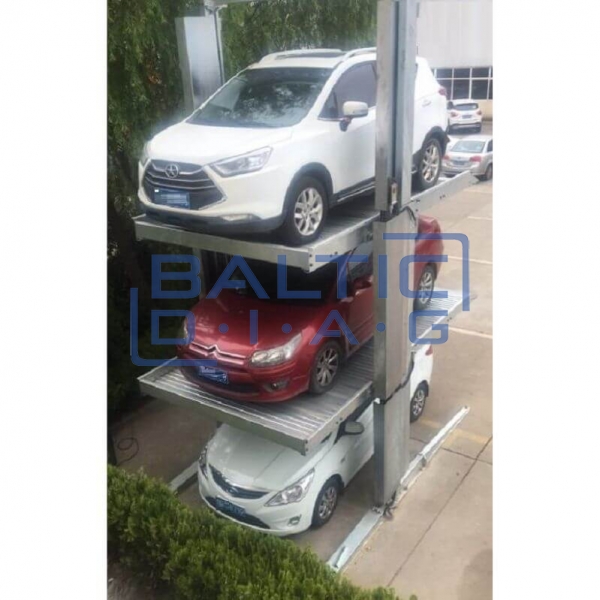

This is an extremely compact two-post parking lift that allows parking of up to three vehicles vertically in a single spot. The closed-type platforms with low ramp height enable easy access even for low-profile vehicles while also protecting against fluid leakage from vehicles parked above. The lift measures just 4854 mm in length, 2604 mm in width, and 5647 mm in height, making it ideal for use in tight spaces such as garages, storage facilities, or valet parking areas. The lift is operated via a control box, which can be mounted either on a wall or on the column. Structural stability is ensured by the overhead crossbeam.

Features:

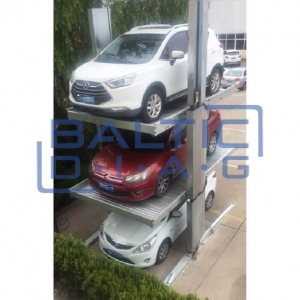

• Capability to park 3 cars vertically
• Maximum load capacity per vehicle: 2000 kg

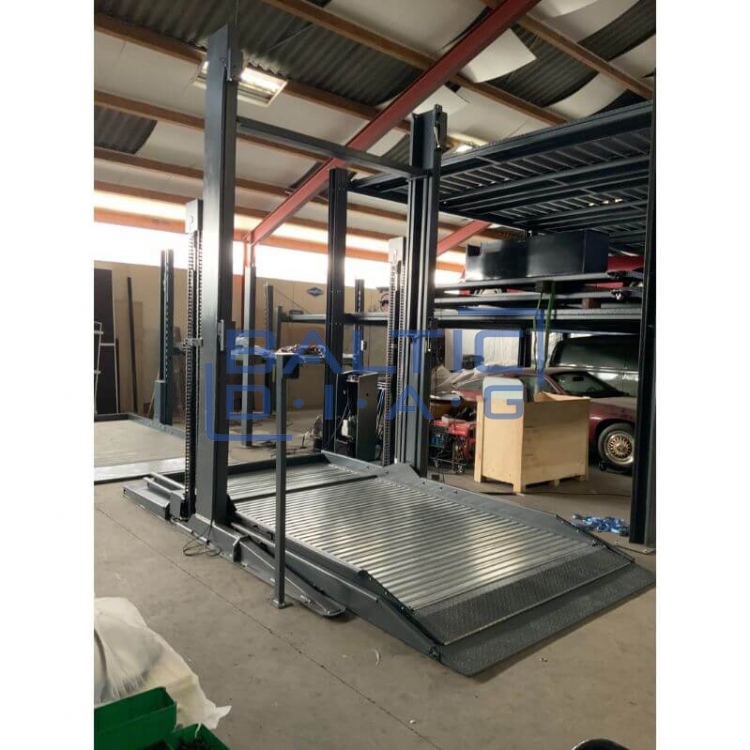

• Closed platforms – leak protection from vehicles above
• Low ramp height – easy access for all vehicles
• High lifting speed through hydraulic cylinder and chain drive (no cables)
• Simple push-button operation

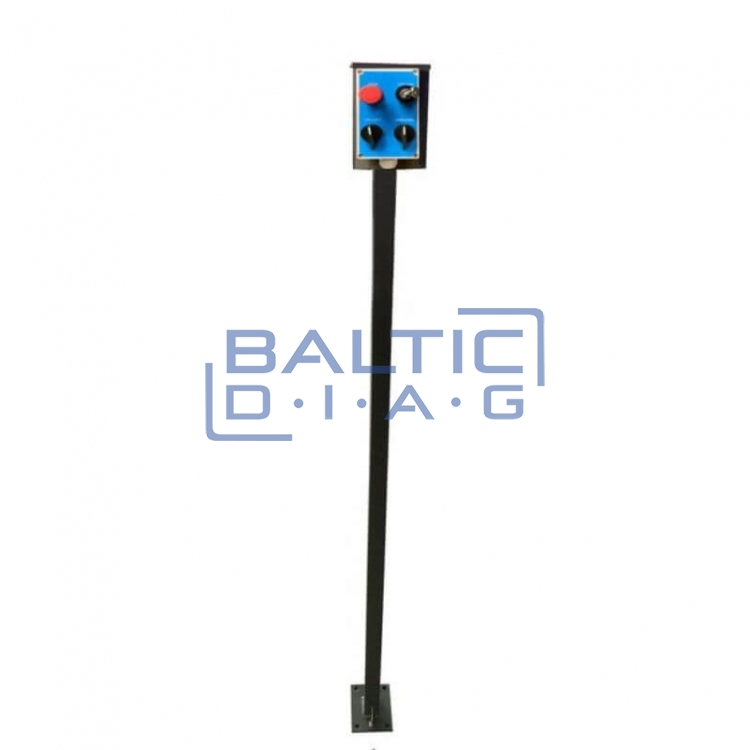

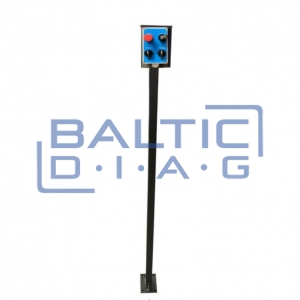

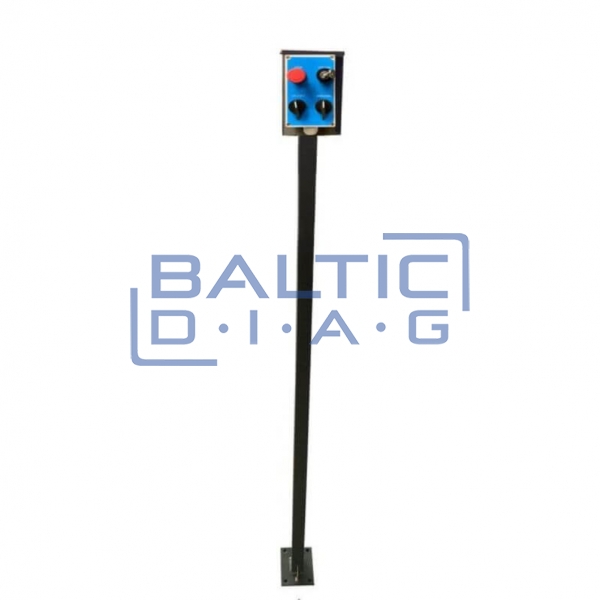

• Control box mountable on wall or column
• Suitable for both SUVs and sedans
• High structural stability thanks to upper cross connection
• CE-certified safety standards
• Separate motor unit – installed behind the lift

Technical Specifications:

• Lifting capacity: 2000 kg per vehicle
• Lifting height: 2100 / 1650 / 1650 mm
• Drive-through width (1st platform): 2254 mm
• Drive-through width (2nd platform): 2200 mm
• Drive-through width (3rd platform): 2113 mm
• Maximum lift width: 2700 mm
• Required ceiling height: at least 5700 mm
• Motor power: 2.2 kW
• Power supply: 230 V, 50 Hz
• Control: control box
• Control voltage: 24 V (low voltage)
• Lock-in mechanism: dynamic
• Unlocking: automatic
• Lifting speed: approx. 45 seconds
• Fuse: 16 A, type C (slow-blow)
• Surface coating: powder coating
