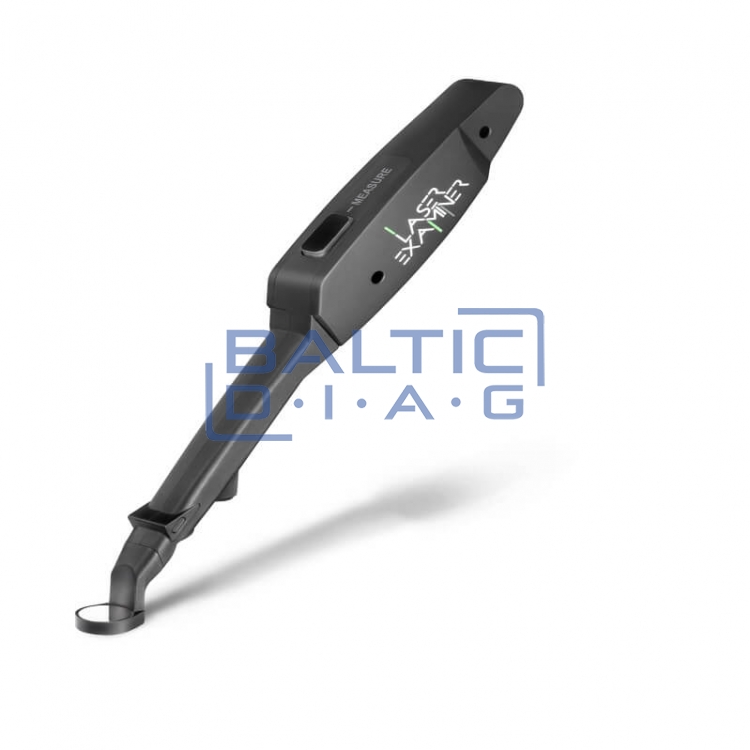

Tire tread depth and brake disc measuring device TEXA Laser Examiner 2

Tire tread depth and brake disc measuring device TEXA Laser Examiner 2

Manufacturer: Texa, Italy; Warranty: 2 years

Safety and comfort while driving are becoming more important than ever. Therefore, it is recommended to regularly perform various checks, which include checking the condition of tires and brake systems. This tire tread depth and brake disc measuring device Laser Examiner 2 is a small, practical device that can measure brake disc wear with extreme accuracy, even to the tenth of a millimeter, and for this you will not need to remove the wheels from the cars. Also, using a simple, additional adapter, you will have the opportunity to perform tire tread depth measurements. With the Texa Laser Examiner 2, you will perform these tests quickly and easily, you will have the opportunity to provide customers with a detailed report on the condition of their vehicle's tires and brake system and you will be able to ensure professional service.

Brake disc condition measurement:

Laser Examiner 2 – allows you to quickly and easily check the wear of brake discs, and to do this, you do not even have to remove the wheel from the car. Thanks to the magnet integrated into the device probe, you only need to place it on the brake disc to be measured. By pressing a button, the Laser Examiner 2 creates a laser beam across the brake disc. During the next press, an image is captured, which is then analyzed by a micro-camera. The device processes the measurements in real time and compares them with a predetermined minimum value. The results obtained are presented in both numerical and visual form, providing the mechanic with clear results.

Tire tread depth measurement:

Just like the condition of the brake discs, tire tread wear must be checked regularly. A significantly reduced tread depth increases the vehicle's instability, makes the tire more vulnerable and can contribute to the driver losing control in the rain due to aquaplaning. Thanks to a special magnetic head, you will be able to measure the remaining tread depth of the tires. You just need to place it on the tire, where a special laser beam will be projected through the tire surface and objective measurement results will be provided.

Highly professional and easy to use:

In order to most effectively check and manage all the information provided, obtained from the measurements of the brake discs and tire condition, Texa has developed software for computers with Windows operating systems and the Axone Nemo program, which is necessary for proper work with the Laser Examiner 2 device. Thanks to them, the mechanic can quickly perform an objective inspection process for all wheels, using a simple and intuitive graphical interface. The main menu of the device is divided into three functions: “Brake discs”, “Tyre tread” and “quick check”. By selecting “quick check”, the employee can quickly check the wear level of both the brake discs and the tire tread, which is especially useful for vehicles that have arrived at the car repair shop for repair work. During this check, the customer gets a clear picture of the condition of the vehicle upon arrival. You will also be able to provide customers with a detailed inspection report.

Accurate customer management system:

The LASER EXAMINER 2 device software also includes a customer management system, which is essential for maintaining customer loyalty. It allows the service or tire specialist to process all brake disc and tire measurements as efficiently as possible, creating a detailed and always updated database that stores driver and vehicle information along with the results of the tests performed. This system also allows you to schedule regular vehicle maintenance or inspections.

Ergonomic design:

Due to the extended stem design and ergonomic handle, the Laser Examiner 2 is designed for easy and simple use, even in cases where the shape of alloy or steel rims makes access to the brake discs difficult.

Technical parameters:

• Laser class: class1
• Laser beam length: 520 nm
• Memory: 8 Mb RAM
• Operating system: Windows
• Power input: USB 2.0
• Video camera: 1 mgpx
• Battery: Li-ion, 600 mAh
• Interface: Bluetooth
• Compatible with software systems: Android, Windows, iOS
• Dimensions: 250 x 40 x 20 mm
• Weight: 90 g

Package:

• Texa Laser Examiner 2 device
• Special adapter for tire tread measurement
• Battery battery charger
• Mechanical calibration accessory
