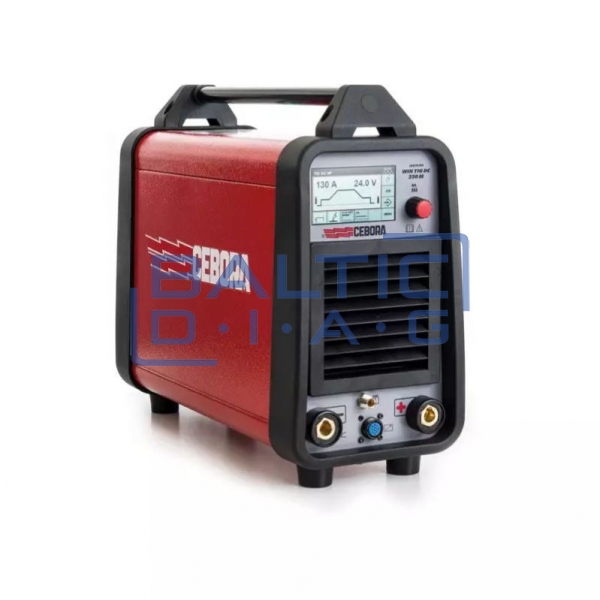

TIG welding machine WIN TIG DC 250 T CEBORA

TIG welding machine WIN TIG DC 250 T CEBORA

Country of origin: Italy, warranty period – 24 months

WIN TIG DC 250 T is a three-phase multi-voltage inverter TIG and MMA (DC) pulsed welding machine designed for professional use in various industrial sectors. The device supports both 208/220/230 V and 400/440 V input voltages, and features high power output, a wide current adjustment range, and an excellent duty cycle. It is suitable for use in metal fabrication, energy, shipbuilding, industrial maintenance, and other fields where precise and stable welding is required.

Functions:

• TIG and MMA (manual arc) welding in one device
• Pulsed TIG mode with high-frequency arc ignition
• Wide current adjustment range up to 250 A
• High duty cycle – suitable for intensive work
• Supports two three-phase voltage options – 208/230 V and 400/440 V
• Suitable for welding various material thicknesses
• High-efficiency inverter technology

Technical specifications:

• Power supply: three-phase, 208/220/230 V ±10% or 400/440 V ±10%, 50/60 Hz

Fuse:

• TIG mode – 16 A (230 V), 10 A (400 V)
• MMA mode – 16 A (230 V), 10 A (400 V)

Power in TIG mode:

• 230 V: 5.7 kVA 25%, 4.8 kVA 60%, 4.0 kVA 100%
• 400 V: 6.2 kVA 35%, 5.0 kVA 60%, 4.0 kVA 100%

Power in MMA mode:

• 230 V: 7.5 kVA 30%, 4.9 kVA 60%, 4.5 kVA 100%
• 400 V: 7.0 kVA 30%, 5.2 kVA 60%, 4.5 kVA 100%

Current adjustment range:

• TIG: 5–250 A (230 V – up to 230 A)
• MMA: 10–210 A (230 V – up to 210 A)

Duty cycle (10 min at 40 °C):

• TIG: 230 A 25%, 180 A 60%, 150 A 100%
• MMA: 210 A 30%, 150 A 60%, 135 A 100%
• Protection class: IP23 S
• Weight: 22.7 kg
• Dimensions (LxWxH): 207 x 437 x 411 mm
