Country of origin: Italy, warranty period – 24 months
Optional accessories for this device are listed below!

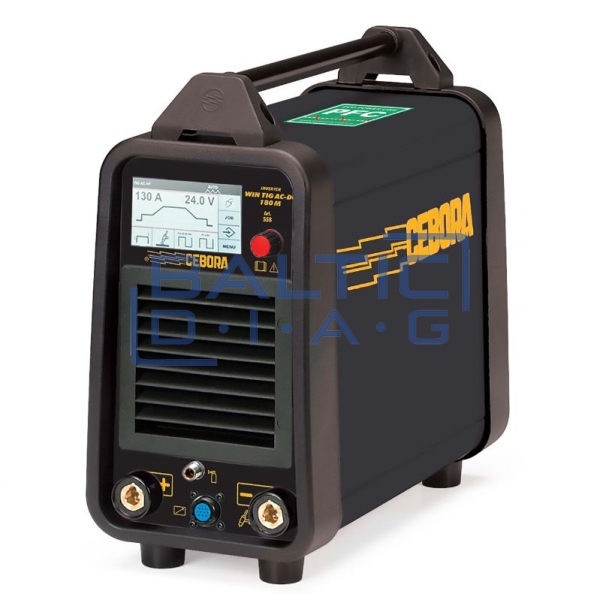

WIN TIG AC-DC 180 M is a single-phase TIG and MMA welding machine with pulsed mode and inverter technology, suitable for both direct (DC) and alternating (AC) current. The unit features a compact design, a wide current adjustment range, and reliable high-frequency arc ignition, making it ideal for working with non-ferrous metals and aluminum. It is a perfect solution for small repair jobs, metal structures, and craftsmen seeking mobility and versatility.
Functions:
TIG and MMA welding with DC and AC current
Pulsed TIG mode
High-frequency arc ignition (HF)
Wide current adjustment range
Compact and lightweight design – only 17.5 kg
Suitable for welding aluminum, steel, stainless steel, and more
Technical specifications:
Power supply: single-phase, 230 V +15% / -20%, 50/60 Hz
Fuse: 16 A, slow-blow
Power in TIG mode: 4.4 kVA 25%, 2.5 kVA 60%, 2.2 kVA 100%
Power in MMA mode: 4.4 kVA 30%, 3.2 kVA 60%, 3.0 kVA 100%
Current adjustment range:
TIG: 5–180 A
MMA: 10–130 A
Duty cycle (10 min at 40 °C):
TIG: 180 A 25%, 110 A 60%, 100 A 100%
MMA: 130 A 30%, 100 A 60%, 100 A 100%
Protection class: IP23 S
Weight: 17.5 kg
Dimensions (LxWxH): 207 x 500 x 411 mm
Available accessories:
TIG torch BINZEL 'ABITIG 200' – 4 m (200 A – 35%)
TIG torch BINZEL 'ABITIG 200' UP/DOWN – 4 m (200 A – 35%)
Transport trolley with space for gas cylinder (⌀180 mm)
Remote control panel for welding current adjustment
5 m extension cable for remote control
Foot pedal for current adjustment with 5 m cable and ON/OFF switch
Adapter for simultaneous connection of torch and pedal
