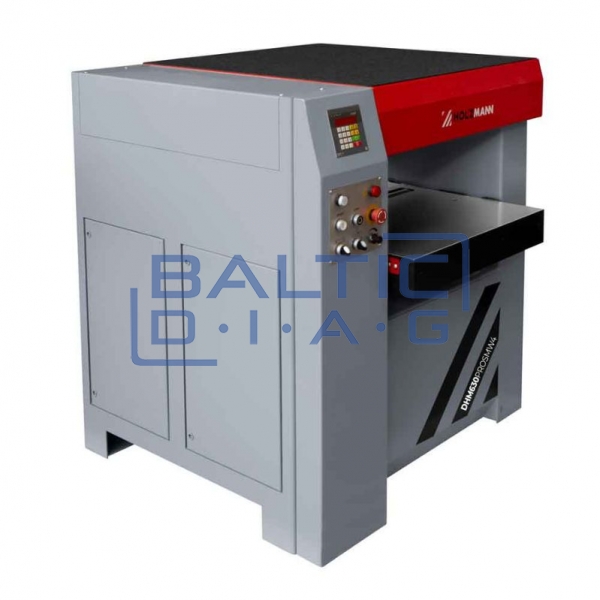

Thickness planer Holzmann DHM630PROSMW4_400V

Thickness planer Holzmann DHM630PROSMW4_400V

Country of origin: Austria, warranty period - 24 months

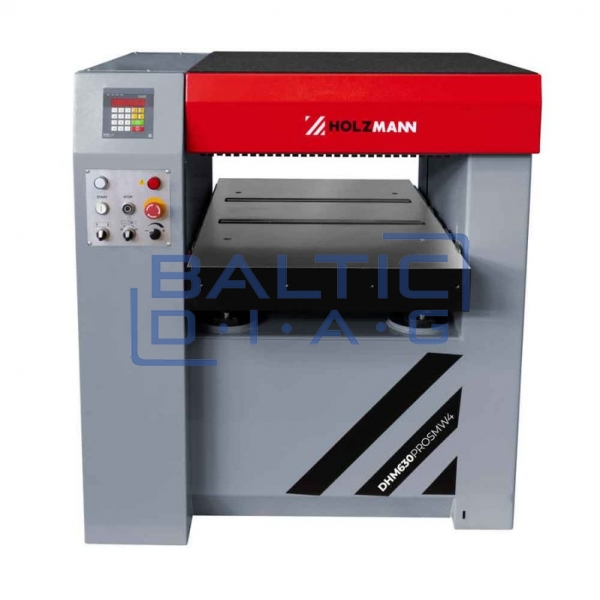

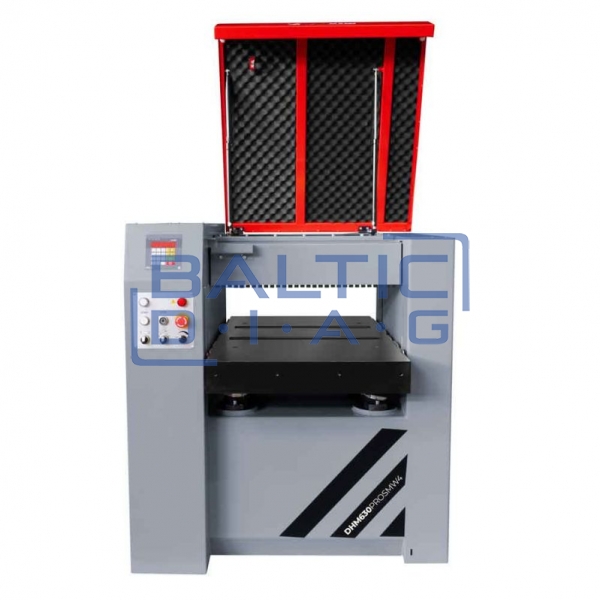

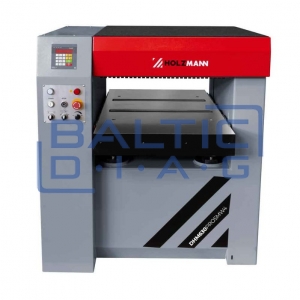

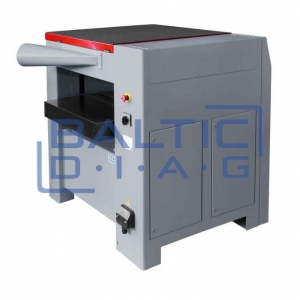

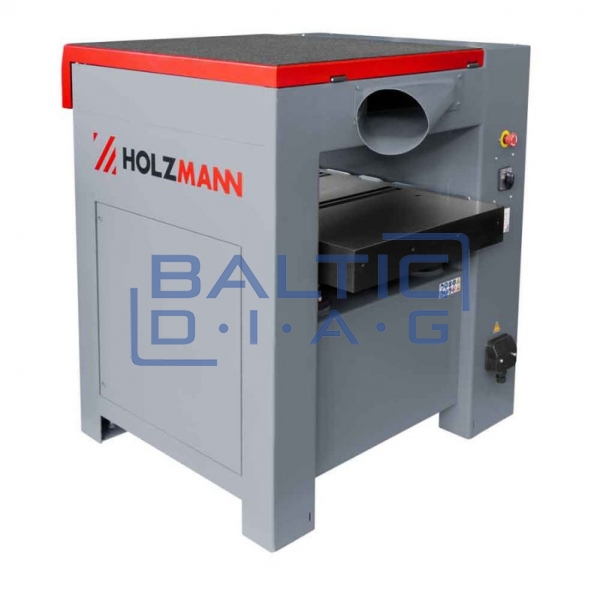

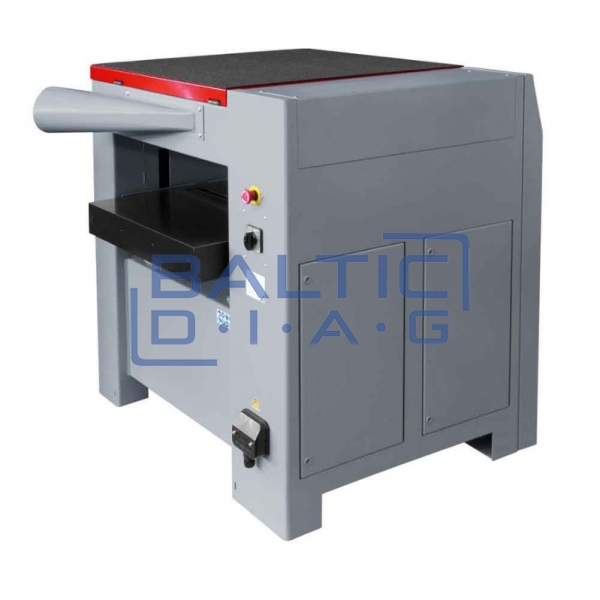

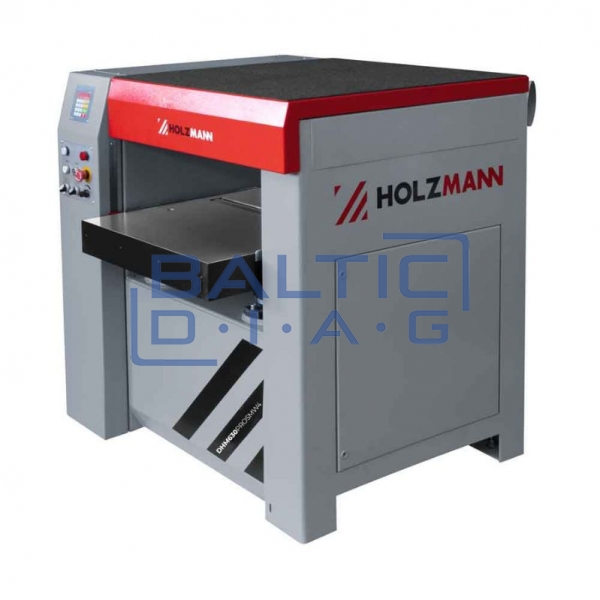

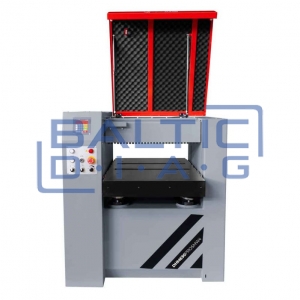

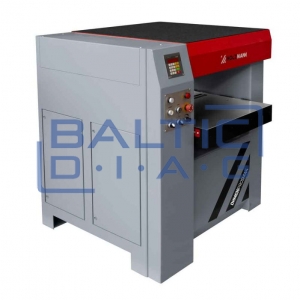

The Holzmann DHM630PROSMW4_400V thickness planer is a solidly built professional machine designed for joinery and carpentry workshops, ensuring highly accurate and high-quality surface processing. The spiral cutter block with 104 inserts, separate feed motor, and electric height adjustment of the table provide comfort and efficiency even during the most demanding work processes.

Functions:

• Separate feed motor (550 W) – smooth and consistent material feed

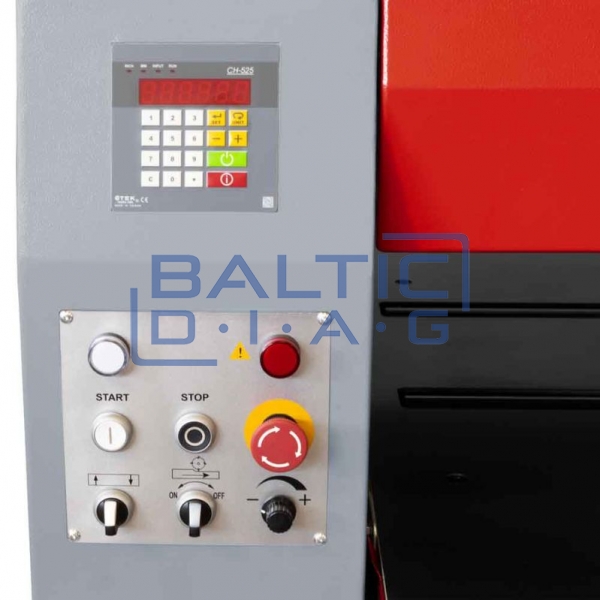

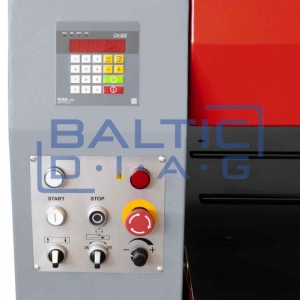

• Electric table height adjustment (lifting motor 250 W)
• Maximum planing width – up to 630 mm

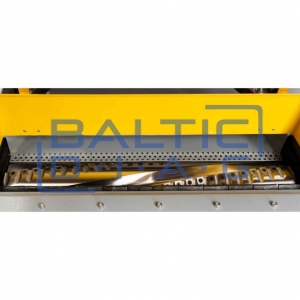

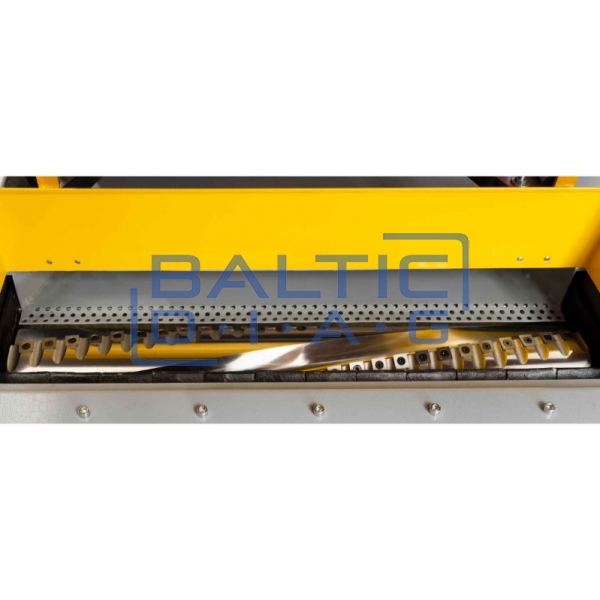

• Spiral cutter head with 4 grooves and 104 inserts
• Included: 104 mounted inserts + 4 spare inserts (15 x 15 x 2.5 mm, 60°)

Technical specifications:

• Motor power (S1): 7000 W
• Voltage: 400 V / 3-phase / 50 Hz
• Feed speed: 4–16 m/min
• Protection class: IP54
• Table dimensions: 1050 x 630 mm
• Dust extraction port diameter: 150 mm
• Overall dimensions: 1060 x 1220 x 1150 mm
• Minimum workpiece length: 280 mm
• Maximum cutting depth: 8 mm
• Maximum thicknessing height: 300 mm
• Cutter block speed: 5500 rpm
• Cutter block diameter: 117 mm
• Sound power level: 100 dB(A)
• Sound pressure level: 90 dB(A)
• Net weight: 656 kg
• Gross weight: 720 kg
• Packaging dimensions: 1220 x 1150 x 1300 mm (L x W x H)
