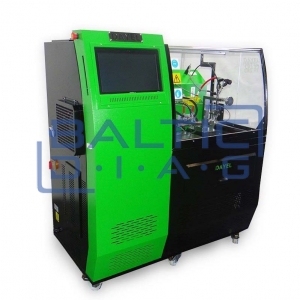

Test stand for diesel injectors and pumps Codeman 1 PT

Test stand for diesel injectors and pumps Codeman 1 PT

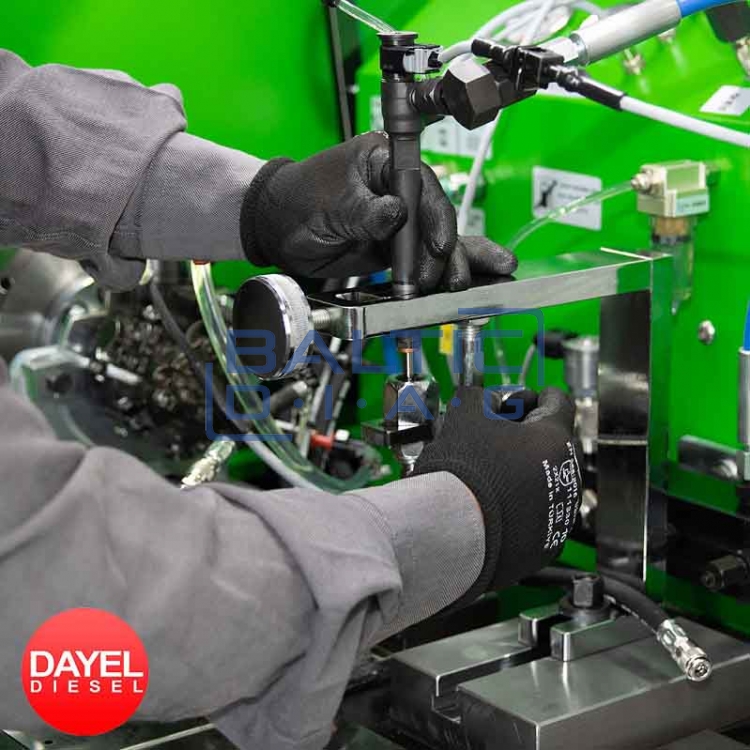

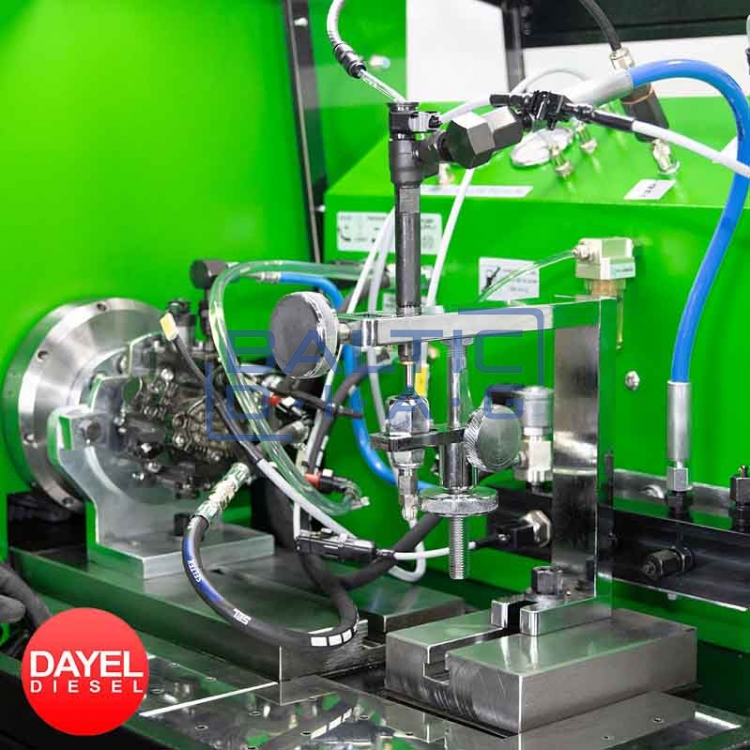

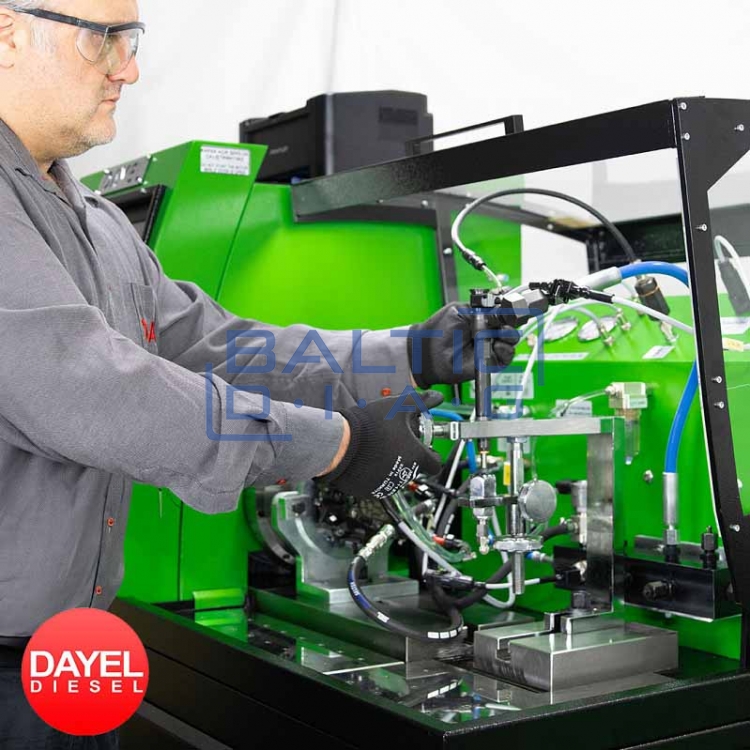

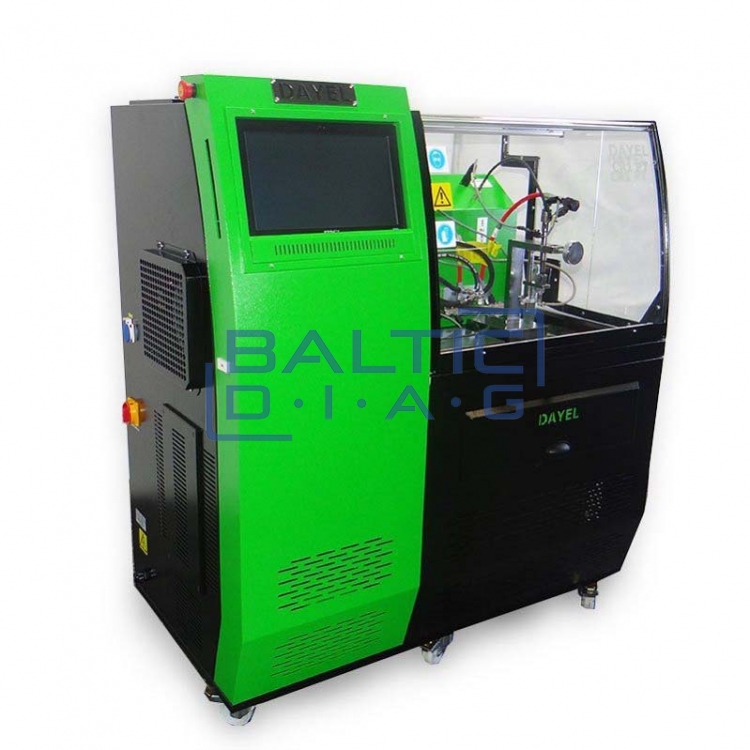

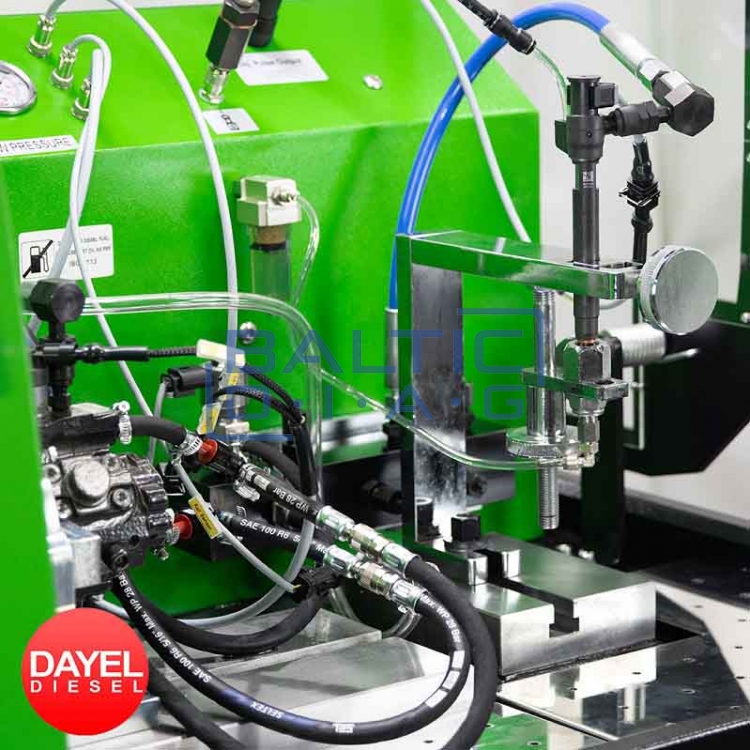

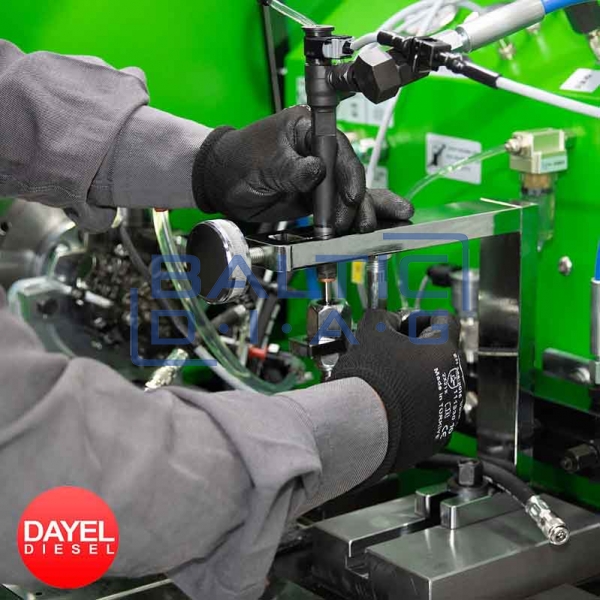

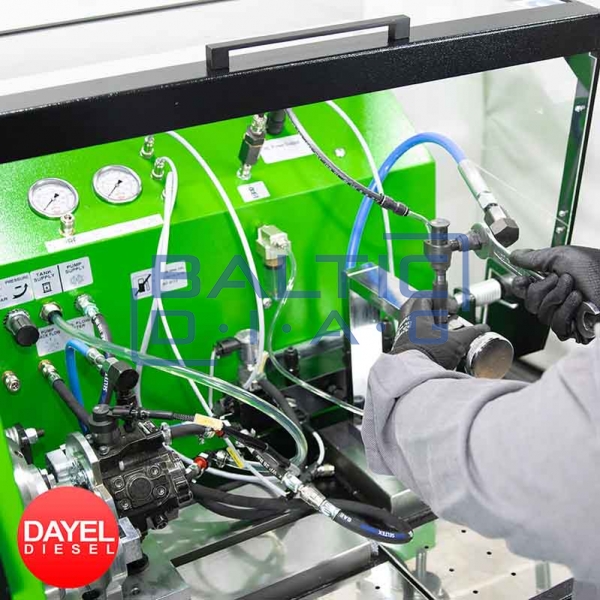

The common-rail diesel injector inspection and coding stand is a modern and powerful device for testing not only diesel injectors but also fuel pumps. This multifunctional bench allows you to accurately diagnose and adjust the parameters of the injectors, as well as to check that the fuel pump is working according to the required parameters. Such inspection works ensure high repair quality and optimal engine operation. The Codeman 1 PT test and coding stand is an important tool for every auto repair shop working with diesel car injectors and fuel supply systems. Because it allows you to quickly and accurately determine or bring expected problems and failures.

Features:

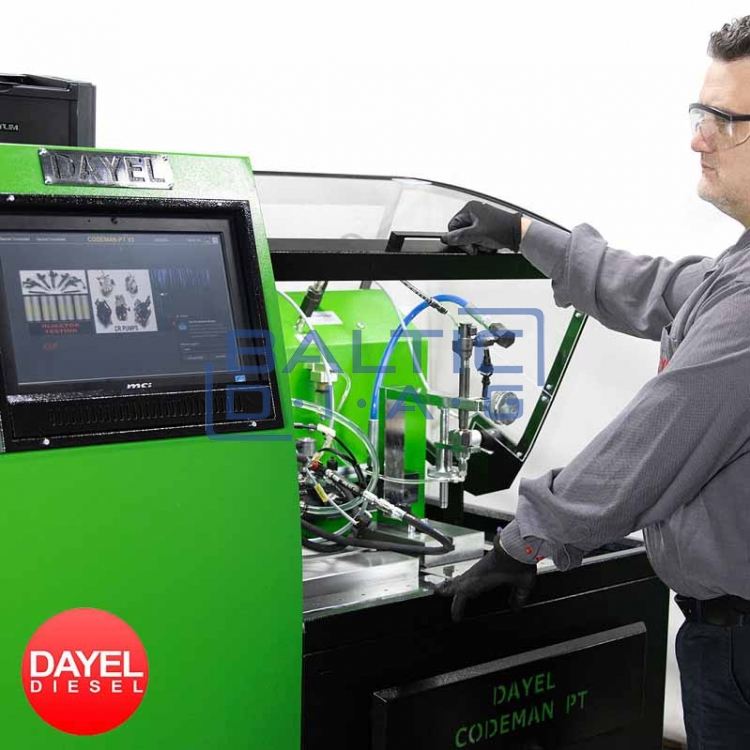

• The equipment uses a touch, 10" inch control screen
• Fully automatic and semi-automatic inspection modes provide accurate and fast inspection results
• Ergonomic design
• Extensive database where you can find 7 groups and more than 3000 test modes
• Ability to connect remotely and update databases
• If required, a nozzle coding database can be installed on the stand

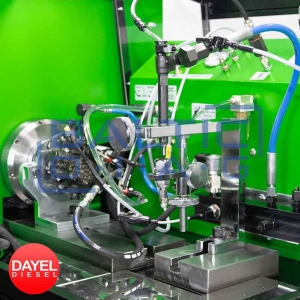

Tested Common-rail injector models:

• Bosch
• Delphi
• Dance
• Siemens VDO
• CAT
• Scania

Encoded nozzle models:

• Bosch Solenoid IMA
• Bosch Piezo ISA
• Delphi C2i/C3i/C4i
• Denso QR Coding
• Siemens IIC Coding
• Siemens 6&7 Digit code

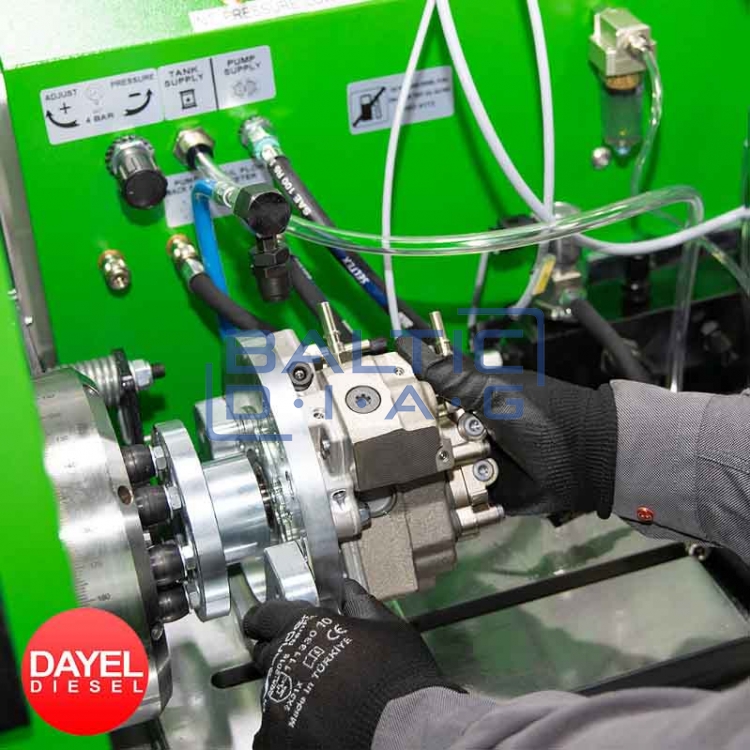

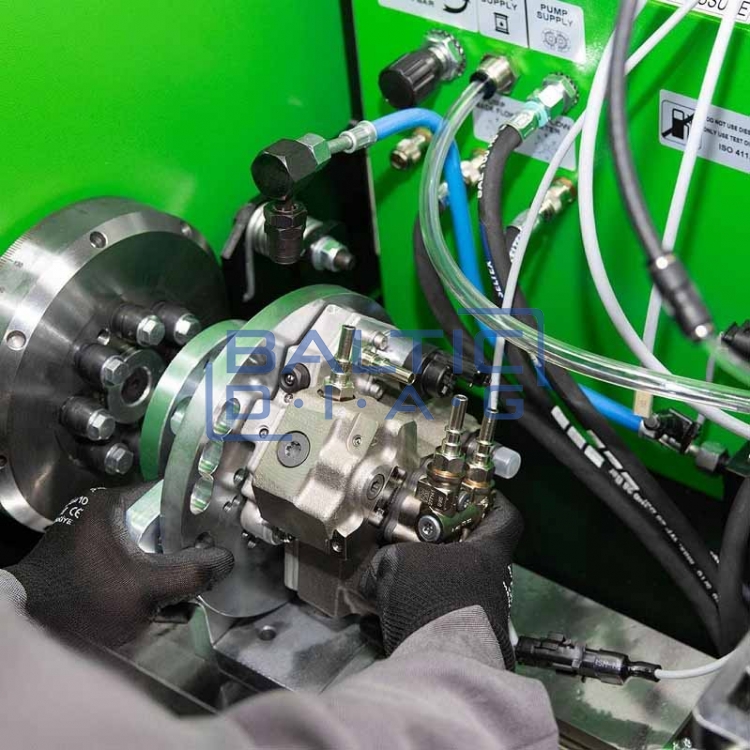

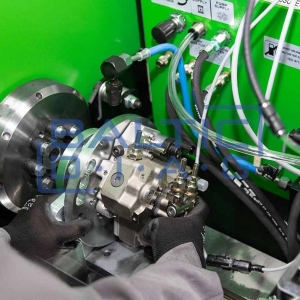

Checked pump models:

• Bosch CP1 - CP3 - CP4
• Delphi
• Denso HP3
• Siemens
• For other models, ask managers

With Common-rail pump inspection plans installed, you will be able to inspect:

• Traffic performance
• Carry out DRV and measure the electric current of the pump and its operating behavior
• Internal pressure
• Maximum pressure
• Pressurize and check the condition of the valves

Technical parameters:

• Supply voltage: 400 V / 50 Hz / 3 fz
• Engine power: 11 kW / 15 Ag
• High pressure pump pressure: 0 – 2200 Bar (Opt. 2500 bar)
• Low pressure: 0.5 - 6 bar
• Speed: 4000 rpm, adjustable
• Flow sensor filter: 20 µM
• Nozzle flow sensor range: 0.1 - 500 cc/min
• Pump flow sensor range: 1 - 300 l/h
• Oil capacity: 20 l
• Oil type: ISO 4113
• Dimensions: 1350 x 1600 x 750 mm
• Weight: 460 kg
• Power output: 8 kW
