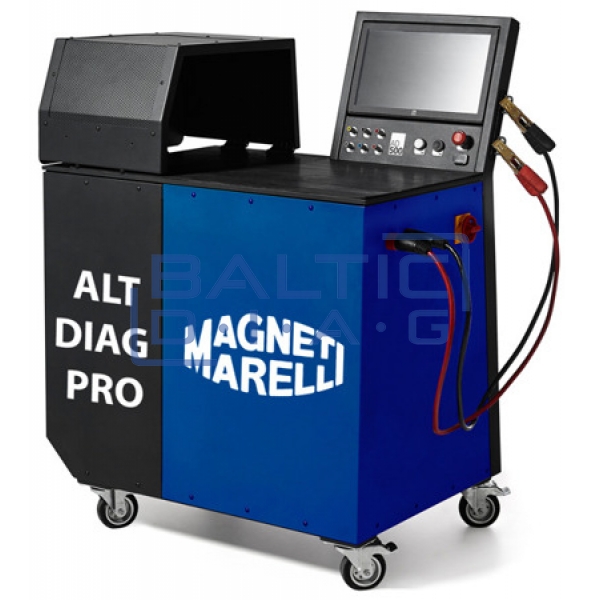

Starter and generator test stand Magneti Marelli Alt Diag Pro


Manufacturer: Magneti Marelli; Warranty: 24 months


Description:


Alt Diag Pro is a test bench that can be used to check the operation and quality of generators and starters. This device evaluates the results of measurements and diagnoses separate parts of generators and starters. With this stand it is possible to test 12V generators up to 300A and 24V generators up to 150A and test starters with similar parameters.


Supported interfaces with the generator:


- COM (LIN, BSS)

- C

- SIG

- RLO

- L-RVC

- LAMP


Automatic generator tests are supported:


1. Standard - allows to record the maximum current under load, not exceeding the value determined during the test

2. Efficient - provides maximum load without any restrictions to check the generator under unusual conditions


Usage parameters:


- Power supply 400 V 50 Hz, 16 A, connection: 3P + N + PE

- The compressor is connected to the test bench with a 1/2 ”pneumatic quick-connect inlet for safe operation. Maximum pressure up to 10 bar possible

- Touch screen that allows you to conveniently change settings and position settings and clearly display information, messages and parameters to be analyzed


User measured and analyzed settings:


- Maximum starter power

- Maximum starter current (starting current)

- Average starter voltage

- Average starter current


Alt Diag Pro analyzes the parameters:


- Graphic representation of current pulsation

- Maximum generator current

- Loss of current from the generator

- Voltage setpoint

- Switching speed

- DFM values

- Performance curve

- Maximum generator power

- Number of windings


Advantages of Alt Diag Pro:


- Compact size (80 x 70 x 110 cm)

- All modern generators are supported (Com, Sig, Rlo, RVC, C, PD, DFM)

- 8.5 PS engine

- Supports 12 and 24 V

- Tests up to 300 A generator

- Pneumatic belt tensioner

- 15-inch industrial touch screen

- Supports wireless printing of results

- Database for automatic generator testing

- Energy recovery system instead of resistors for load generators

- The database is updated via USB

- High quality parts

- Made in the EU

- CE certificate

- Code: 007935063050
