Spot welding machine for body repair SPOT 2500 CEBORA

Spot welding machine for body repair SPOT 2500 CEBORA

Country of origin: Italy, warranty period – 24 months

Optional accessories listed below can be purchased for this unit!

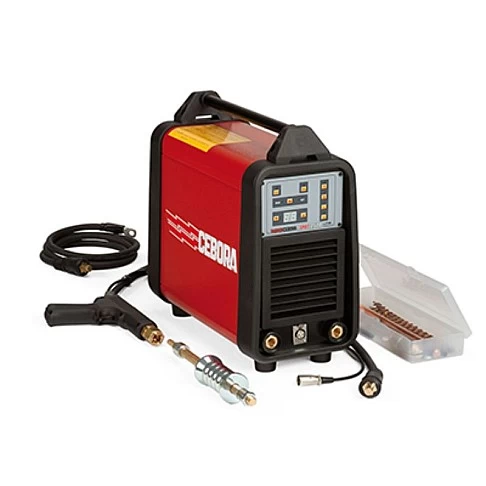

CEBORA SPOT 2500 is a multifunctional single-phase spot welding machine with electronic adjustment, synchronous control, and a digital control panel. It is ideally suited for automotive body repairs involving standard sheet metals (except aluminum). The machine can be operated in both automatic and manual modes and features the “USER” function for customizing settings. The convenient torch button system allows quick mode changes directly from the welding gun.

Functions:

• Operation in automatic or manual mode
• Rosette spot welding, insert spot welding, metal pressing, metal heating, pulse heating
• “USER” function for individual customization of working parameters
• Torch button for quick mode selection directly from the control panel
• Available version with 230V 50/60Hz power supply (on request)

Technical specifications:

• Power supply: 400 V 50 Hz ±10 % (on request: 230 V 50/60 Hz ±10 %)
• Fuse: 10 A (slow blow)
• Power consumption: 6.0 kW
• Maximum welding current: 3000 A
• Protection class: IP23S
• Weight: 30 kg
• Dimensions (LxWxH): 207 x 437 x 411 mm

Available accessories:

• Sliding hammer with handgrip
• Hammer head for washer traction
• Hammer head for pin traction
• Spot weld electrode for Ø 3 and Ø 5 rivets
• Spot weld electrode for washers
• Spot weld electrode for M4 screws and Ø 2 – Ø 2.5 pins
