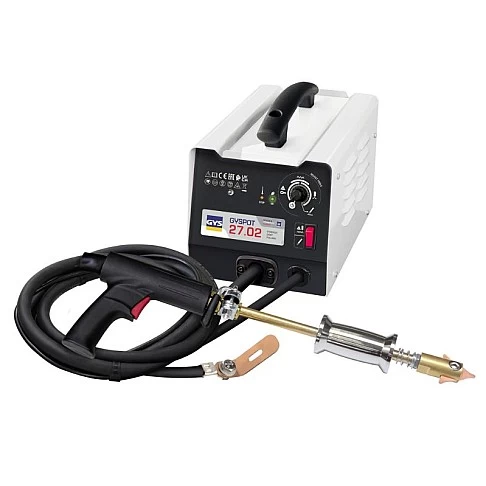

Spot body straightening device GYS GYSPOT 27.02

Spot Body Straightening Device GYS GYSPOT 27.02

Functions:

• Four operating modes: star welding for flat surfaces, wave wire welding for curved profiles, contact shrinking, and graphite pencil mode for fine work.
• Universal application for various body parts and shapes, ensuring precise surface restoration.
• Intuitive control with mode switching and current adjustment.
• Manual gun operation allows precise control of the welding process.
• Simple and convenient operation enabling quick switching between desired work modes.

Technical specifications:

• Power supply: 230 V / 50–60 Hz
• Maximum welding current: 2600 A
• Rated power: 11.5 kVA
• Output voltage: 5.4 V
• Maximum power: 1800 W
• Dimensions: 20 × 32 × 18 cm
• Weight: 14 kg
• Cable length: power – 2 m, grounding – 1.7 m, gun – 1.8 m

Standard equipment:

• Sliding spot hammer (1.1 kg) with support tip
• Star washers (3 pcs)
• Contact shrinking tip (1 pc)
• Grounding pad (1 pc)
