Description

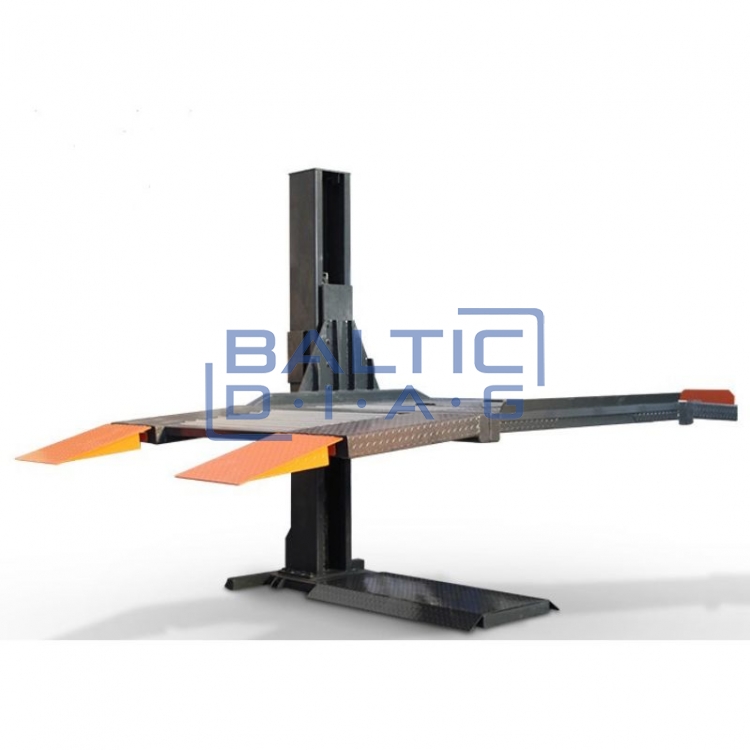

Single Post Parking Lift
Country of origin: China, warranty period – 24 months
The single post parking lift is a compact and reliable solution for parking vehicles in confined spaces. The unit features a hydraulic cylinder, electric or PLC control, and a multi-level automatic locking mechanism that ensures a high level of safety. It is easily operated via push buttons or a remote control and is suitable for use in private garages, hotels, hospitals, and office buildings. Ideal for both professional and personal applications.
Features:
- Single post design with one hydraulic cylinder
- Electric or PLC control system
- Multi-level locking mechanism for enhanced safety
- Automatic locking function for safer parking
- Manual unlocking option available in case of malfunction
- Convenient remote control operation
- Meets 115% dynamic and 150% static load testing standards
- Easy to assemble, space-saving design
- Suitable for use in homes, hotels, hospitals, and office buildings
Safety Features:
- Height limiter – restricts maximum lifting height
- Photoelectric sensor – prevents accidental entry during operation
- Anti-fall safety device – prevents unintended platform descent
- Emergency stop button – immediately cuts power in case of abnormal operation
Technical Specifications:
- Vehicle dimensions: 5000 × 1850 × 1550 mm
- Lifting capacity: ≤2000 kg
- Number of cylinders: 1
- Drive type: hydraulic drive
- Control mode: electrical
- Operation method: push buttons or remote control (optional)
- Unlocking method: electrical
- Lifting/lowering speed: 2 m / 1.9 m per minute
- External dimensions: 4433 × 2650 × 2584 mm
- Inner platform width: 4409 × 2000 mm
- Device weight: 1200 kg
- Lifting height: 1800 mm
- Lifting mechanism: cylinder + chain
- Motor power: 2.2 kW
- Power supply: 220–415 V, 50/60 Hz, 1/3 phase
