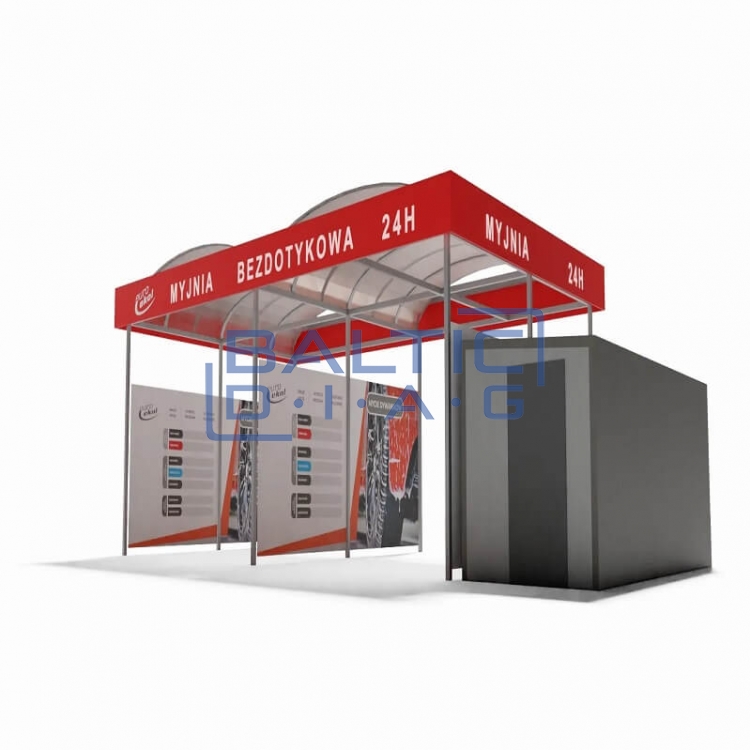

Self-service car wash BRONZE 4 Bay Euro Ekol

Self-Service Car Wash BRONZE 4 Bay Euro Ekol

Country of origin: Poland, warranty period – 24 months

BRONZE – the basic model of the Euro Ekol self-service car wash

Four washing programs:

• FOAM WASHING – low pressure (70 bar) or high pressure (130 bar) + cold or warm water + softened water + washing agent

• RINSING – high pressure (130 bar) + warm water + softened water

• WAXING – low pressure (70 bar) + softened water + hydro wax agent

• POLISHING – low pressure (70 bar) or high pressure (130 bar) + osmotic (demineralized) water

Car wash control system:

Siemens microprocessor controller

• Operator panel with a color LCD display mounted in the control cabinet

EKO PLUS start system:

• Stainless steel front panel

• Electronic coin detector for PLN1, PLN2, PLN5, and tokens

• LCD display (4 segments) showing the remaining washing time (countdown in seconds)

• Program selection buttons with LED backlighting

• Direct transmission of turnover information at the station to the control cabinet

• Reporting on the quantity of rejected and accepted coins – coin detector operation control

• Front panel made using dye sublimation (durable printing technology on aluminum)

Water distribution system:

• Pipeline made from PP Coprax Prandelli system pipes with enhanced parameters

High-pressure system:

• UDOR high-pressure pumps, capacity 15 l/min, max. 200 bar

• EME three-phase engines, 5.5 kW or 4.0 kW power capacity

Chemical dosing system:

• Accurate DOSATRON pressure mixers (precision up to 0.1%)

Pumping and chemical dosing section:

• High-pressure pumps, capacity 15 l/min, max. 200 bar

• Pump service engines, 5.5 kW power capacity

• Washing chemicals and wax dosing system – DOSATRON pressure mixers

Heating boiler:

• ACV dual-function boiler – oil or gas-powered, adapted for washing water and floor heating

• Boiler integrated with a warm water tank

• Floor heating module controlled via an external thermostat

• Heating agent circulating pump

Water softener system:

• Dual-column cylinder system with a resin bedding

• Smart electronic controller for brine flow control

• Flow capacity of 2.8 m³/h

• Ability to set input water parameters

• Two independent salt containers

• 10’ self-cleaning mechanical pre-filter for feed water

Demineralizer (reverse osmosis system):

• Demineralizer with a capacity of 320 l/h, controlled by a microcomputer

• Complete demineralized water diagnostics and control

• 10’ mechanical filter protecting membranes and a BB 20 carbon filter

• Water treatment quality indicator – conductivity meter

• Membrane housing made from stainless steel

• Soft water emergency switching system

• System for membrane flushing after prolonged standby periods

• 2,000 l demineralized water tank

• Set of floats for monitoring water levels in the tank

• Hydrophore system ensuring constant pressure at the pump inlet

Antifreeze system:

• Closed water circulation

• Water circulation activated via an external thermostat

• Minimum temperature of circulating water – 13°C

• Emergency system in case of power outage

Service container:

• Steel construction based on an enclosed profile

• Container dimensions: 580 cm x 222 cm x 250 cm

• 80 mm sandwich panel filling

• Heat insulation coefficient U = 0.303 W/(m²/K)

• Floor made from hot-dip galvanized bridge grating

• Container lighting – 2 fittings (2 x 36W each)

• Container’s electrical system along with an electrical switchboard

• Entry doors, 90 cm wide

• Chimney system and exhaust chimney adapted for the given boiler type

• Innovative recovery of water from the osmosis production process:

• Ecological solution positively impacting the natural environment by reducing water consumption

• Cost-saving benefits for business operations due to lower operating expenses

• Reduced water usage, leading to lower operational costs

Additionally, you can purchase:

1. Chassis washer

2. Turbo foam program per washing station

• Lance intended for feeding turbo foam

• Stainless steel lance pocket

• Pressure hose set, 360ᵒ rotating arm

• Automation in the control cabinet

• 4 kW engine + UDOR pump 150 bar

3. Turbo brush program per washing station

• Brush with a nozzle feeding very thick foam

• Brush made from long natural bristle

• Stainless steel lance

• Gun with a rotating connector

• Stainless steel brush pocket

• Pressure hose set, 360ᵒ rotating arm

• Automation in the control cabinet

• 4 kW engine + UDOR pump 150 bar

• Option for installing any number of washing stations (minimum 1)

• Colored foam – 1 color

• Colored foam – 2 colors

4. Standard brush washing program

• Brush made from long natural bristle

• Stainless steel lance

• Gun with a rotating connector

• Foaming nozzle at the lance’s end

• Stainless steel brush pocket

• Pressure hose set, 360ᵒ rotating arm

• Automation in the control cabinet

• Option for installing any number of washing stations (minimum 1)

5. Additional rims/insect washing program

• Chemical dispenser

• Hose set

• Automation in the control cabinet

6. Mat washing grip

• Stainless steel frame

• 4 grips for comfortable mat fastening

• Dimensions: height 110 cm x width 200 cm

7. VC1 self-service vacuum cleaner – single station

• 2,160 W vacuum cleaner capacity

• Power supply: 230 V / 50 Hz

• Mechanical coin detector (PLN 2)

• Housing with any RAL color scheme

• Hose and nozzle

8. VC1 self-service vacuum cleaner – Euro-Ekol single station

• 2,160 W vacuum cleaner capacity

• Power supply: 230 V / 50 Hz

• Electronically independent coin detector with adjustable timing

• Housing with any RAL color scheme

• Hose and nozzle

• Euro-Ekol controller

• LED display showing the paid cleaning time

• Accepts coins of different denominations

9. Self-service vacuum cleaner – dual station

• 2 x 2,160 W vacuum cleaner capacity

• Power supply: 230 V / 50 Hz

• Two independent mechanical coin detectors with adjustable timing

• Housing with any RAL color scheme

• Hoses and nozzles for each station

10. Self-service vacuum cleaner – Euro-Ekol dual station

• 2 x 2,160 W vacuum cleaner capacity

• Power supply: 230 V / 50 Hz

• Two electronically independent coin detectors with adjustable timing

• Housing with any RAL color scheme

• Hoses and nozzles for each station

• LED display showing the paid cleaning time

• Euro-Ekol controller

• Accepts coins of different denominations

• Possible token payment

11. Mat beater

• Stainless steel housing and grating

• Impurity collection container

12. Euro-Ekol banknote changer

• Exchanges up to 3 banknote denominations into one coin denomination

• Power feeder protected against overloading

• Stainless steel housing

• Doors with a secure lock

• Banknote detector with a banknote cassette

• 1,500 coin container

13. Euro-Ekol banknote changer housing (freestanding)

• Made from stainless steel or black steel with powder coating in any RAL color

• "BANKNOTE CHANGER" inscription with LED backlighting on the front and sides of the housing

• Additional internal doors with a secure lock

• Outer doors with 2 secure locks, opened with a different key than the banknote changer

• Dimensions: height 180 cm x width 52 cm x depth 41 cm

14. Wheel compressor – analogue

• Stationary compressor

• Intended for passenger and light commercial vehicles

• Analogue manometer embedded in the housing

• Air inflation/deflation buttons

• Compressor with or without a 6L or 24L tank

• Housing dimensions: 700 x 400 x 1,000 mm

• Power supply: 230V, 50Hz, 16A

• Operating pressure: up to 6 bar (max. 8 bar)

15. Wheel compressor – digital

• Stationary compressor

• Intended for passenger and light commercial vehicles

• Digital manometer embedded in the housing

• Pressure pre-selection – automatic inflation

• Thermostatic heating and internal heating

• Compressor with or without a 6L or 24L tank

• Housing dimensions: 700 x 400 x 1,000 mm

• Power supply: 230V, 50Hz, 16A

• Operating pressure: up to 6 bar (max. 8 bar)
