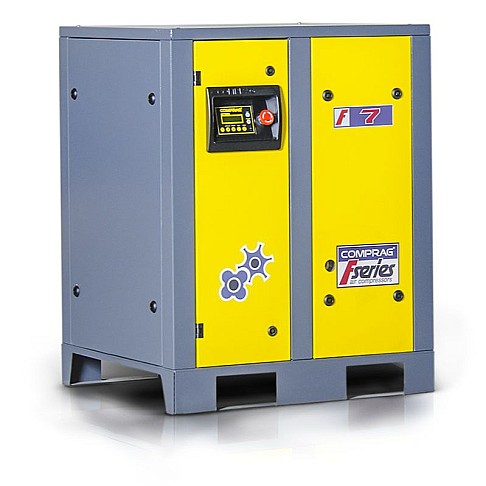

Screw air compressor 15 kW Comprag

Screw Air Compressor 15 kW Comprag

The Comprag 15 kW screw air compressor is available in the following options:

• 8 bar, 2300 l/min
• 10 bar, 1900 l/min
• 13 bar, 1500 l/min

Functions:

• The F-Series oil-injected screw compressors produce industrial compressed air, optionally equipped with a refrigeration-type air dryer, achieving air purity up to class 4-4-4 according to ISO 8573-1:2010.
• A modern and energy-efficient screw air-end ensures stable compressed air supply and long-lasting operation.
• The professional t-Log microprocessor controller automatically manages compressor operation and displays information about pressure, air–oil mixture temperature, and operating hours.
• An efficient oil separation system ensures that the residual oil content in the compressed air does not exceed 3 mg/m³.
• A reliable electric motor with high efficiency, energy reserve, and thermal overload protection.
• The intelligently designed structure reduces internal pressure losses and helps minimize overall energy consumption.
• Easy maintenance – all filters and separators are easily accessible, making servicing quick and cost-effective.
• Quiet operation – noise level only 69 dB(A), making the unit suitable for work environments where comfort is important.

Features of the F-Series screw compressors:

• Professional controller.
• Efficient and reliable electric motor.
• Screw-type air-end.
• Effective separation system.

Technical specifications:

• Motor power: 15 kW
• Rated voltage: 3/380–420 V/50 Hz
• Noise level: 69 dB(A)
• Connection: 1/2"
• Length: 1003 mm
• Width: 800 mm
• Height: 1123 mm
• Weight: 335 kg
