Puzzle-type parking lift

Puzzle-Type Parking Lift

Country of origin: China, warranty period – 24 months

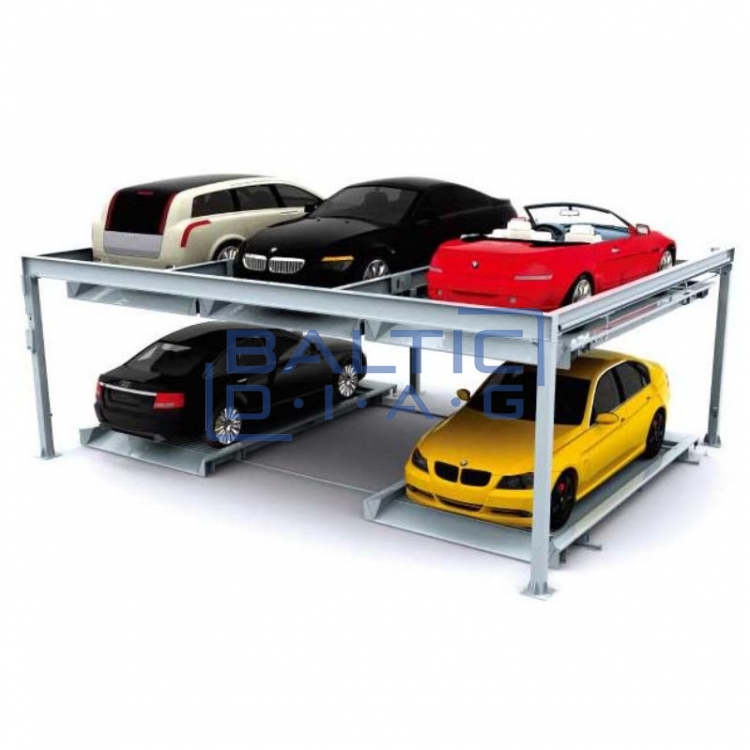

The puzzle-type parking system is a modern solution designed to maximize limited space by safely and efficiently parking cars in two levels and multiple rows. An empty parking space on the first floor allows platforms to move vertically and horizontally, enabling access to any parked vehicle. This system is especially suitable for hotels, business centers, residential complexes, and public institutions.

Features:

• Customizable equipment dimensions according to client requirements
• All structural parts are laser-cut – for a neat appearance, easy installation, and simple maintenance
• Space-saving design ensures efficient use of available area
• Multifunctional operation – LCD screen, IC card, or manual mode
• Reliable drive system – chain and motor
• Integrated safety system: anti-fall mechanism, motion control, access restriction, and interlocking system
• Durable steel construction with powder coating or hot-dip galvanizing

Technical Specifications:

• Car size: 5000 × 1850 × 1550 mm
• Number of parking spaces: 5–7–9
• Lifting capacity: ≤2000 kg
• Lifting height: 1900 mm
• Lifting speed: 5–6 m/min
• Horizontal transfer speed: 7–9 m/min
• Platform length: 2400 mm
• Lifting motor power: 2.2 kW
• Transfer motor power: 0.2 kW
• Operation modes: LCD screen / IC card / manual
• Control system: PLC
• Drive type: chain + motor
• Car retrieval time: 133 s
• Power supply: AC 380 V, 50 Hz, 3-phase
• Frame made from strong H-beam steel, U-profile channels, angle bars, and square tubes.
