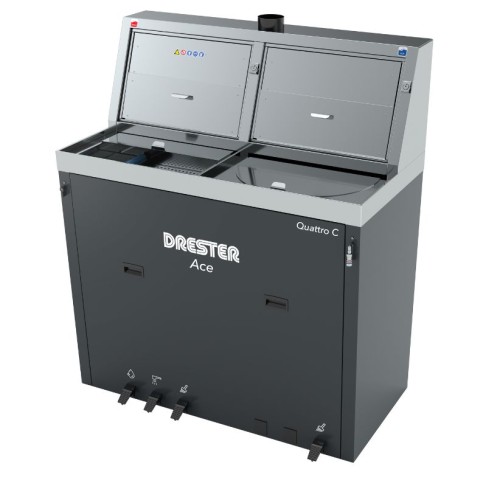

Pulveriser cleaning unit, water-based ACE QUATTRO COMBO DRESTER

Pulveriser cleaning unit, water-based ACE QUATTRO COMBO DRESTER

Country of origin: Sweden, 24 months warranty period

ACE QUATTRO COMBO DRESTER is a professional pulveriser cleaning unit for cleaning painting tools using both solvent and water-based cleaning systems. The unit has 4 separate washing zones, allowing automatic and manual washing to be carried out at the same workstation, adapting the process according to the paint system used and the cleaning needs. It is a practical solution for bodyshops, paint booths and professional paint centres where it is important to maintain a clean working environment, minimise exposure of the operator to solvent vapours, and ensure efficient cleaning of the atomizers.

Technical specifications:

• Number of washing zones: 4
• Washing systems: solvent-based and water-based
• Automatic washing zones: available
• Manual washing zones: available
• Construction: stainless steel washing zones
• Weight: 100 kg
• Width: 1190 mm
• Height: 1488 mm
• Maximum depth: 675 mm
• Depth at floor: 621 mm
• Compressed air required: 7-12 bar / 110-180 psi
• For capacities: solvent 20-60 l, water-based liquids 20-25 l
• Exhaust port diameter: 100 mm
• Ventilation: Capture@Source vapour recovery system
• Vapour extraction: pneumatic
• ATEX category: 2 / zone 1
• DRESTER pumps: ATEX CAT 1 / Zone 0
• Solvent groups: IIA and IIB
• Pulveriser holder: patented universal magnetic holder
• Holder function: opens the paint channel and locks the pulveriser in place
• Air duct protection: air purge hose
• Solvent cleaning: automatic and manual
• Automatic solvent cleaning: with recirculated solvent
• Automatic rinsing: with clean solvent
• Manual solvent cleaning: with recirculated solvent via a flow-through brush
• Fixed rinsing nozzle: for clean solvent, pedal operated
• Water-based cleaning: automatic and manual
• Automatic water-based cleaning: with recirculated water-based solution
• Manual water-based cleaning: with recirculated solution via a flow-through brush
• Water-based cleaning brush: controlled by switch and pedal
• Rinse gun: for recirculated water-based solution or tap water, if fitted with the option
• Optional cleaning elements: funnel for purging, air gun for drying, air supply line
• Flocculation: automatic mixing during flocculation
• Filtration: double filter system for recirculated water-based solution
• Working platforms: easily removable in all washing areas
• Maintenance: easy to remove and clean components

The ACE QUATTRO COMBO DRESTER allows you to combine in one system the main washing processes of the pulverisers for both solvent and water-based dyeing systems. The unit helps to speed up cleaning operations, maintain a cleaner working environment, use cleaning fluids more efficiently and ensure a consistent cleaning result in daily painting or body repair operations.
