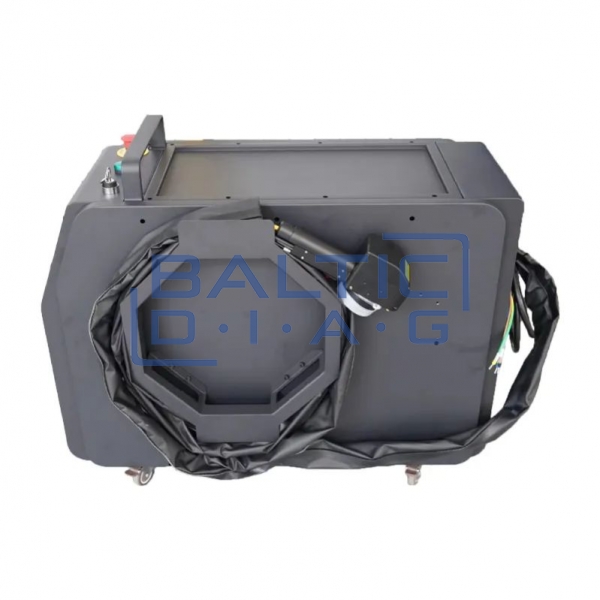

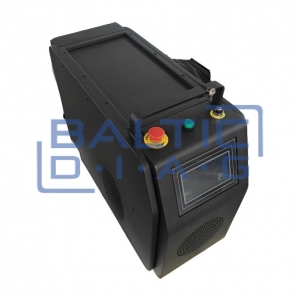

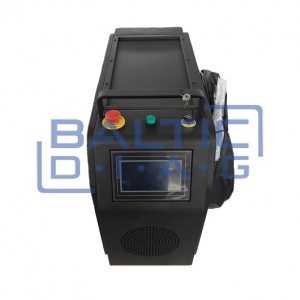

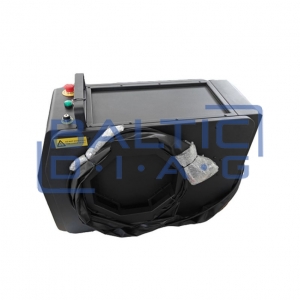

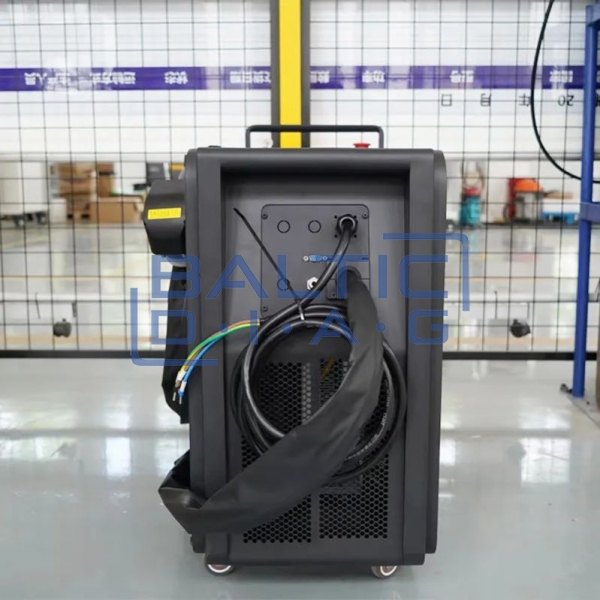

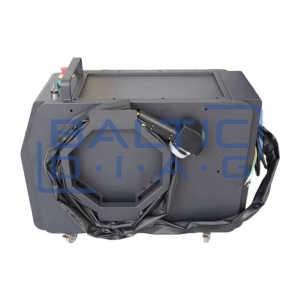

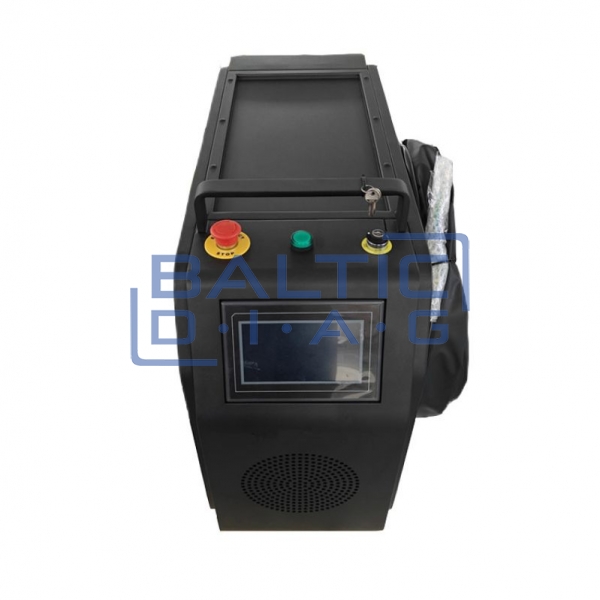

Pulsed laser 100 W

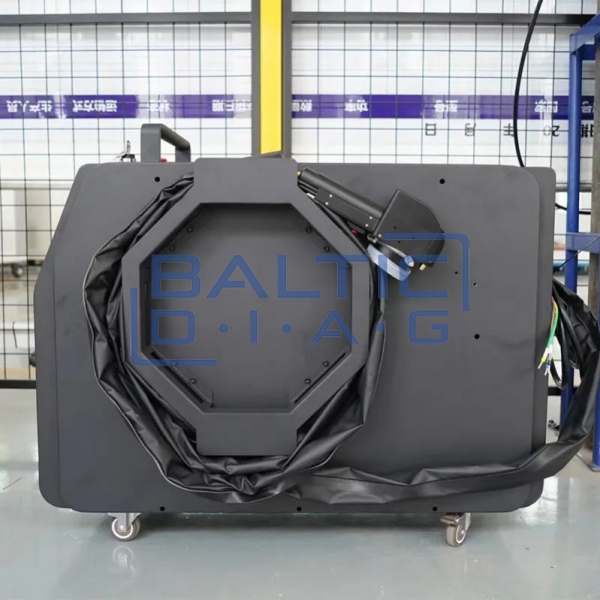

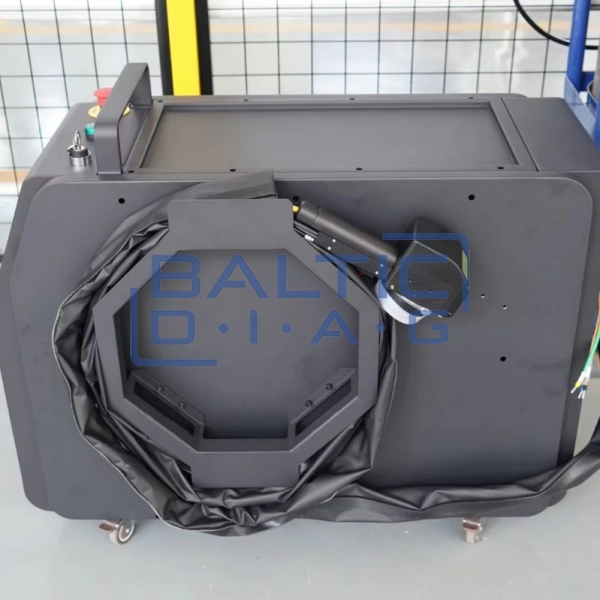

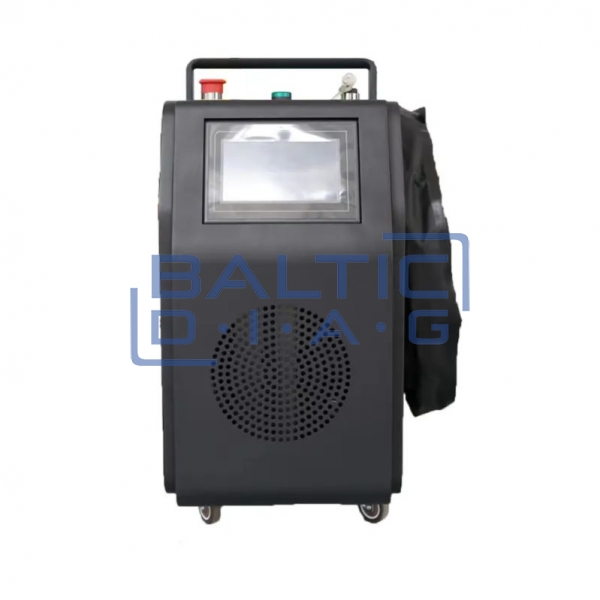

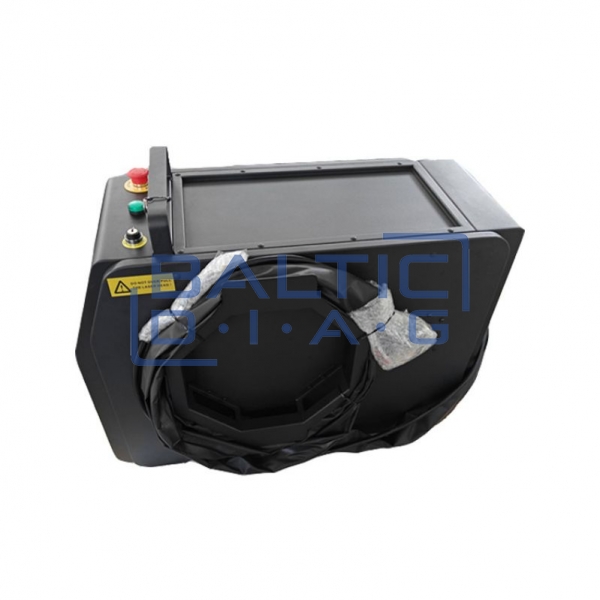

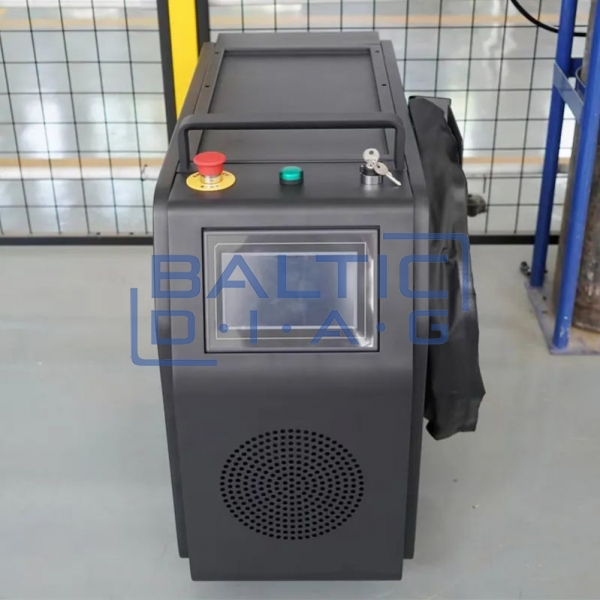

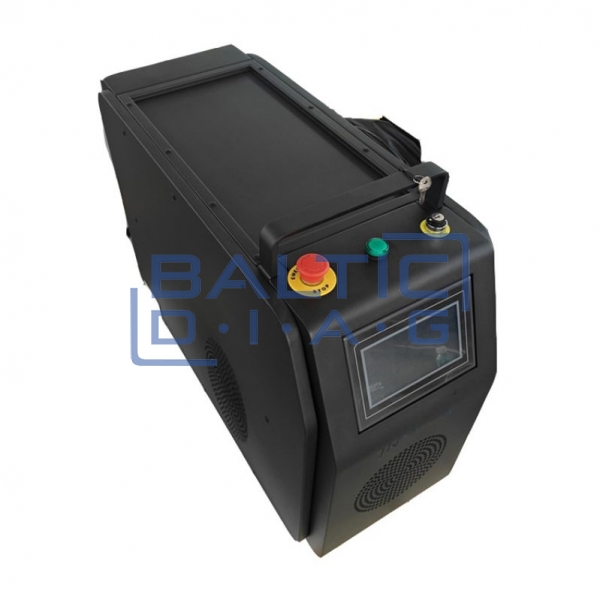

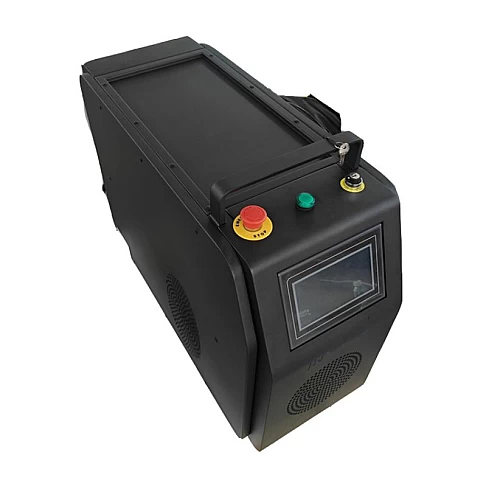

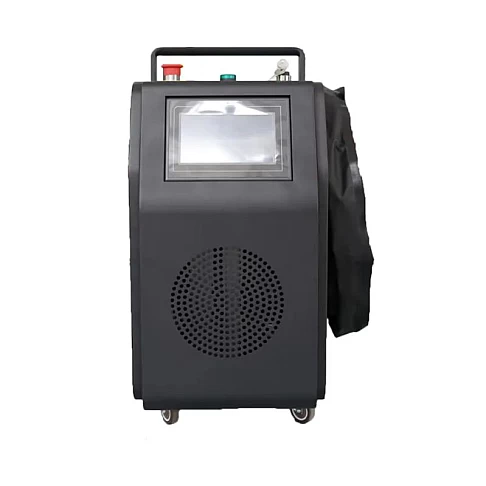

Pulsed Laser 100 W

Country of origin: China, warranty period - 24 months

Available models:

• 200W single mode – Power: 200 W – Price: 12,300 € incl. VAT
• 200W multi-mode – Power: 200 W – Price: 13,000 € incl. VAT
• 300W single mode – Power: 300 W – Price: 15,730 € incl. VAT
• 300W multi-mode – Power: 300 W – Price: 16,300 € incl. VAT

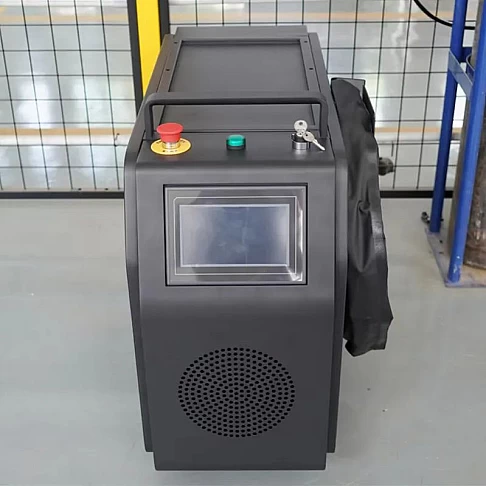

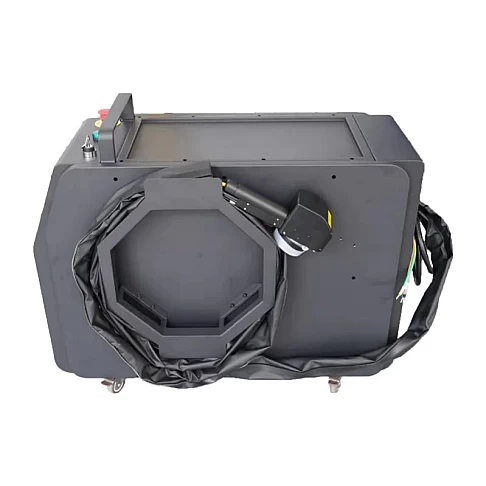

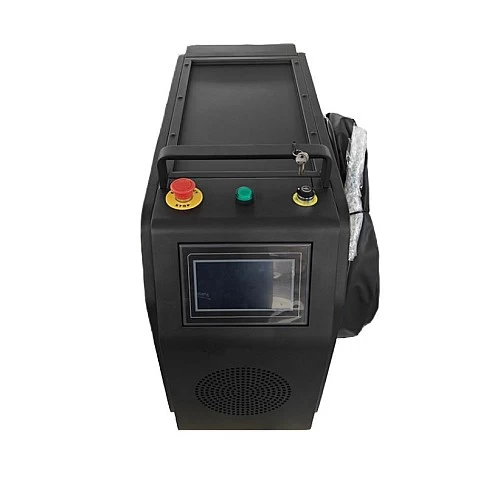

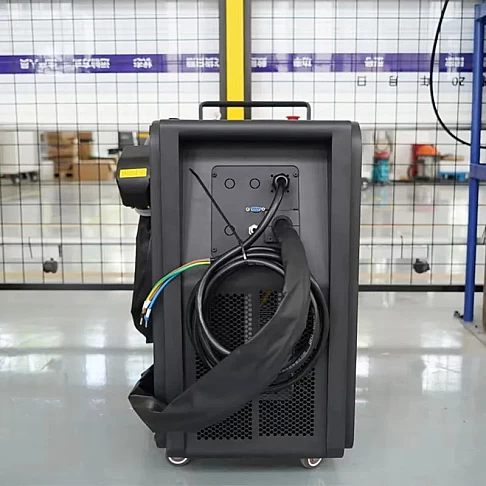

The pulsed laser is a professional, high-quality device designed for fast, precise, and safe cleaning of various surfaces from rust, paint, oxidation, oil, lime deposits, and other contaminants. Using advanced oscillating laser cleaning technology, it ensures even surface cleaning without any damage. This device is especially suitable for industrial use, manufacturing, repair, and restoration work. The laser comes equipped with a JPT laser source and a Zhibotech DHCP cleaning system, ensuring durability, reliability, and flawless results. Thanks to the ergonomic and lightweight cleaning head, intuitive control, and multiple cleaning modes, the work becomes faster, more efficient, and more convenient.

Functions:

• 8 cleaning modes (line, rectangle, ellipse, wave, petal, spiral, grid, etc.) – adaptable to various surfaces and contaminants
• 2–10 times faster cleaning than traditional methods
• Portable and ergonomic design – comfortable operation in any environment
• High-speed galvanometer motor – precise beam control and stable operation
• Integrated 10 safety alarm systems – maximum operational safety
• Possibility to connect up to 50 m cable – workplace flexibility
• Cleaning of complex surfaces without chemicals – environmentally friendly technology
• Minimal operating costs and long service life

Technical specifications:

• Laser power: 100 W / 200 W / 300 W
• Laser source: JPT
• Laser wavelength: 1070 nm
• Fiber optic cable length: 5 m (standard)
• Operating modes: continuous / modulated wave
• Cooling: air
• Operating temperature: 15–35 °C
• Operating humidity: <70% RH
• Recommended cleaning thickness: 0–300 μm
• Operating voltage: AC 220V – 600 W / 1000 W / 1300 W

Laser head

The laser head is designed for efficient and precise surface cleaning using advanced control and beam shaping technology. It supports up to 8 different cleaning modes (line, rectangle, ellipse, wave, petal, spiral, grid, etc.), allowing the device to be adapted to various complex cleaning tasks. The integrated slow rise and fall of laser power function and real-time power control ensure smooth and safe cleaning without damaging the surface.

The head is equipped with 10 safety alarm systems, ensuring greater operational stability. Various communication protocols are supported (I/O, Modbus), as well as logo, interface, and specific function customization options. It features an independently developed high-speed galvanometer motor, making the head’s construction more reliable and stable. The head is compatible with all popular lasers on the market (QBH, QCSD17, D20, D24 connections) and can be equipped with a cable up to 50 m in length.

The device supports up to 15 languages, making it convenient for use in various markets, ensuring smooth human-machine communication.

Technical specifications:

• Models: DHCP200 / DHCP300
• Cleaning width: <150 mm
• Cleaning length: <150 mm

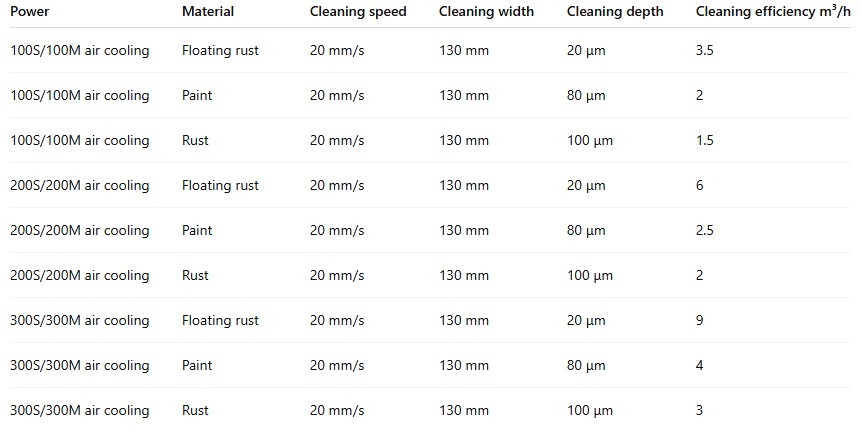

• Cleaning efficiency: 0.08–8 m²/min
• Cleaning modes: line, rectangle, ellipse, wave, petal, spiral, grid, etc.
• Lens reflection wavelength: 1050–1090 nm
• Head weight: DHCP200 – 850 g, DHCP300 – 1300 g
• Head dimensions: DHCP200 – 253x66x97 mm, DHCP300 – 236x91x108 mm
