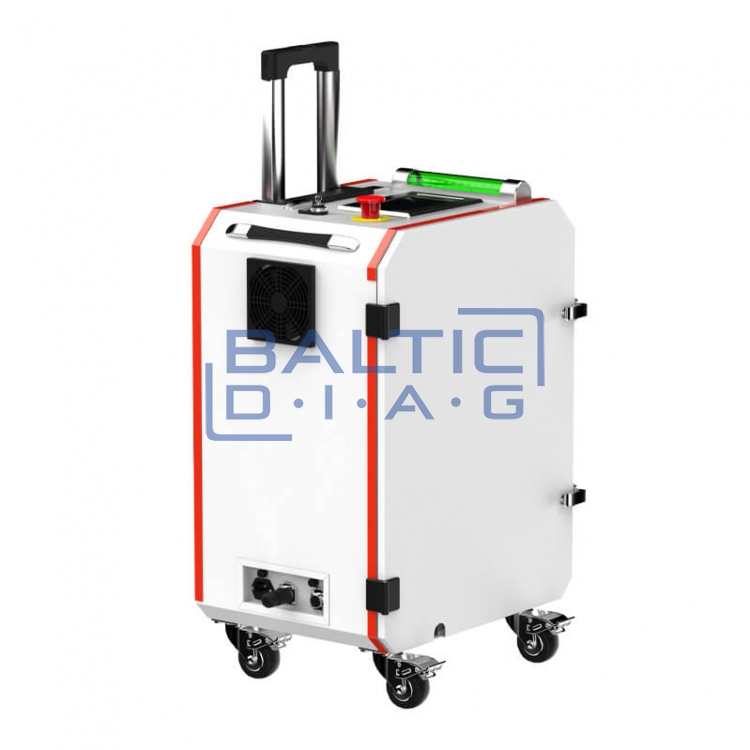

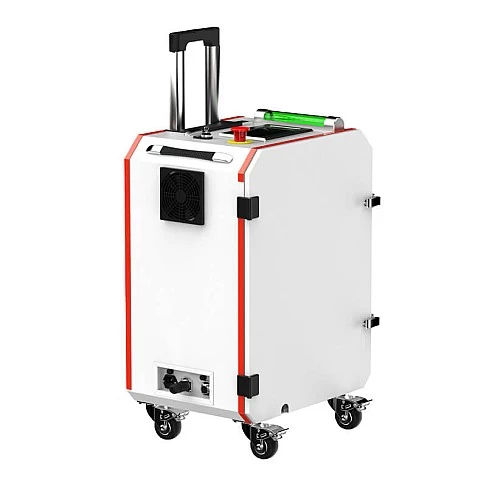

Pulsed air cooled laser cleaning machine TPC-300W

Pulsed Air-Cooled Laser Cleaning Machine TPC-300W

Country of origin: China, warranty period - 24 months

The TPC-300W is a high-quality 300W pulsed laser cleaning machine with an air cooling system, designed for the efficient removal of oxides, rust, paint, oil, and other contaminants from metallic and non-metallic surfaces. Utilizing the "Top Hat" laser beam profile, it ensures safe cleaning without damaging the surface. This device is suitable for various industrial sectors, including metal processing, weld seam preparation, automotive manufacturing, and other industrial applications.

Features:

• High power: 300W pulsed laser ensures effective and fast cleaning.
• Adjustable power: 10%-100% power control according to requirements.
• Air cooling: Efficient cooling system ensures long-term stable operation.
• Manual and automatic operation: Can be used manually or integrated with robotic systems.
• Eco-friendly performance: No need for chemicals or additional consumables.
• High-quality laser source: "MAX 300W" with high average power and single pulse energy.
• User-friendly control: Simple operation system with a touchscreen display and adjustable parameters.
• 12 cleaning modes: Customizable settings for different cleaning tasks.
• High safety classification: Class 4 laser protection.
• 2D laser cleaning head: Lightweight (650 g) and supports a scanning width of 110-175 mm.

Technical Specifications:

• Model: TPC-300W
• Maximum power: 300W
• Laser source: MAX 300W (MFPT 300CL)
• Adjustable power range: 10%-100%
• Laser wavelength: 1064 ± 5 nm
• Maximum pulse energy: 1.8 mJ
• Pulse frequency: 1-4000 kHz
• Pulse duration: 10-500 ns (optional)
• Fiber optic length: 5M
• Scanning width: 110-175 mm (adjustable)
• Power consumption: 1600W
• Input power: 220V ±10%
• Operating temperature: 10-40℃
• Storage temperature: -10-60℃
• Relative humidity: <80%
• Supported languages: 12 languages
• Machine dimensions: 430x530x780 mm
• Machine weight: 72.5 kg
• Packaging type: Standard fumigated wooden box for export
• Package dimensions: 430x530x780 mm
• Total packaged weight: 72.5 kg

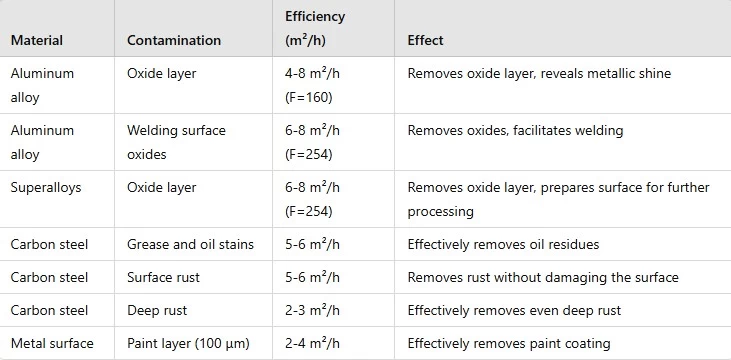

Cleaning Efficiency (depends on material and type of contamination):

Additional Information:

Laser Cleaning Head:

• 5th generation 2D cleaning head, weight - 650 g
• Includes 5 protective lenses
• Recommended additional purchase of 30-50 lenses for six months of use

Control System:

• Simple software with a touchscreen display
• Supports 12 cleaning modes
• Language selection available

Safety Features:

• Class 4 laser safety
• Integrated emergency stop button
• Laser protection system ensures safe operation

Mobility:

• 4 steerable wheels for easy transportation
