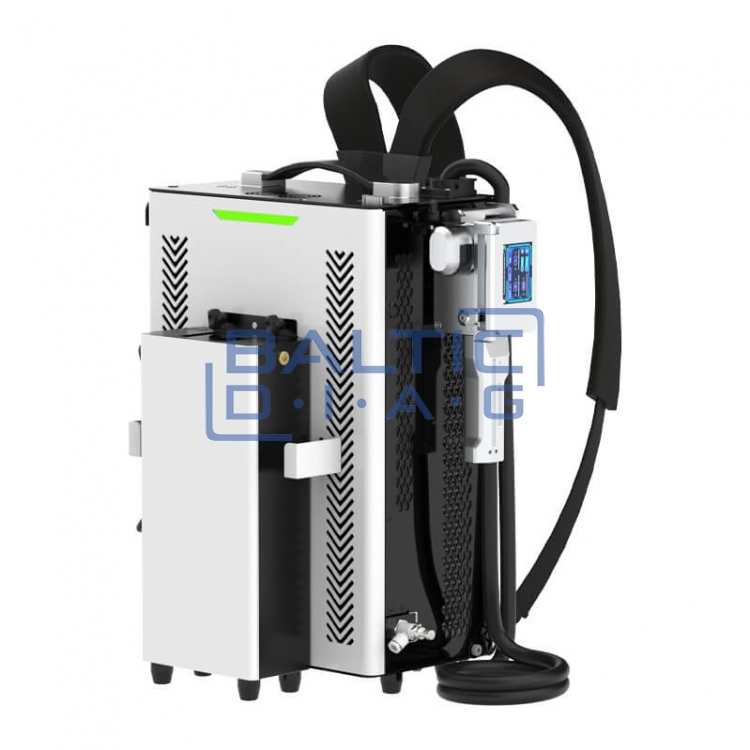

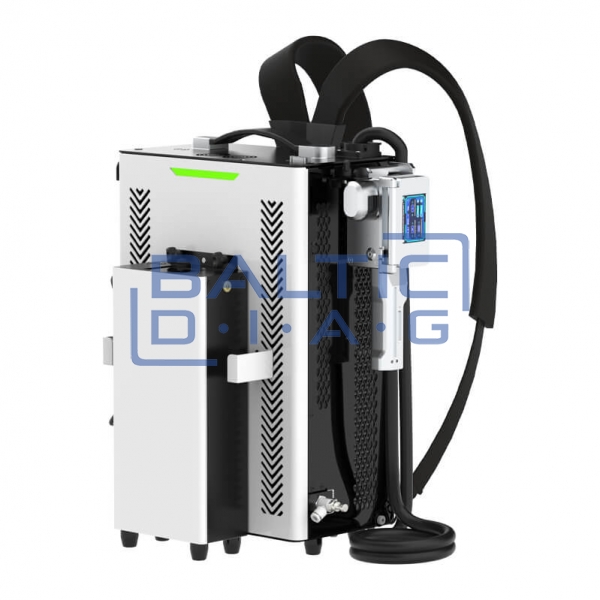

Portable pulsed laser cleaning machine with built-in battery TPC-300W

Portable Pulsed Laser Cleaning Machine with Built-in Battery TPC-300W

Country of origin: China, warranty period - 24 months

The TPC-300W is a powerful and portable 300W pulsed laser cleaning machine with a built-in battery, designed for the efficient removal of rust, paint, oxides, oil, graffiti, and other contaminants from metallic and non-metallic surfaces. Its innovative control system, integrated directly into the handheld laser head, allows for parameter adjustments without having to remove the device from the back. With an air cooling system and compact design, this machine is ideal for use in various industries, including automotive, construction, metal processing, restoration work, and more.

Features:

• High power: 300W pulsed laser ensures efficient and fast cleaning.
• Adjustable power: 1%-100% power control for different needs.
• Portable design: Lightweight structure with an ergonomic backpack for comfortable carrying.
• Wireless operation: Built-in battery allows for 2-3 hours of operation without recharging.
• Fast charging: The battery fully charges in 2 hours.
• Convenient control: Integrated screen on the laser head allows real-time parameter adjustments.
• 12 cleaning modes: Customizable settings for different cleaning tasks.
• High-quality "JPT" laser source: Ensures stable operation and long service life.
• Dual power supply system: Can operate either on battery power or direct electrical connection.
• 2D laser cleaning head: Lightweight (0.65 kg) and supports 12 scanning patterns.
• High-temperature sensor: Ensures safe operation of the device.

Technical Specifications:

• Model: TPC-300W
• Maximum power: 300W
• Power consumption: 1200W
• Electric current: 21A
• Adjustable power range: 1%-100%
• Laser wavelength: 1064 nm
• Maximum pulse energy: 5 mJ
• Pulse frequency: 1-4000 kHz
• Pulse duration: 2-500 ns
• Fiber optic length: 3M (optional 5M)
• Scanning width: 175 mm (optional: 160 mm, 230 mm)
• Operating voltage: 110V/120V, 60Hz
• High-reflection protection: Yes
• Polarization direction: Any
• Operating temperature: 10-40℃
• Storage temperature: -10-60℃
• Relative humidity: <80%
• Supported languages: 12 languages
• Machine dimensions: 434.5x271x152 mm
• Machine weight: 15 kg
• Battery weight: 8.5 kg
• Battery lifespan: 3500 hours
• Battery charging time: 2 hours
• Laser head weight: 0.65 kg
• Laser head focal length: 160 mm, 254 mm, 330 mm (optional)
• Laser head operation mode: Manual / Automatic
• Packaging type: Fumigation wooden box or carton packaging
• Package size: 590x490x285 mm & 360x312x115 mm
• Package weight: 35 kg

Additional Information:

• Battery: The estimated lifespan is 3500 hours. A fully charged battery allows continuous operation for 2-3 hours. If extended 12-hour operation is needed, it is recommended to purchase an additional battery or connect the device directly to a power supply.
• Laser head and control system: The control screen is integrated directly into the laser head, allowing parameter adjustments without additional steps. The head supports 12 scanning patterns and is extremely lightweight (0.65 kg).
