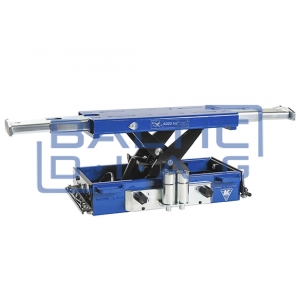

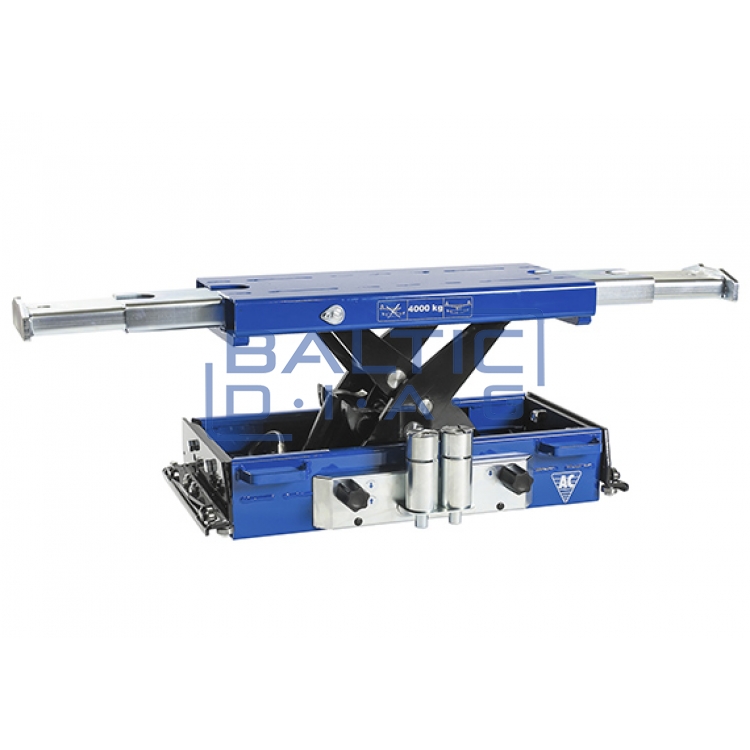

Pneumatic-hydraulic axle lift SD40PHL

AC-Hydraulic, Denmark; warranty 3 years for hydraulics and 10 years for frame parts

Pneumatic-hydraulic axle jack designed for passenger cars, vans, and trucks Durable and powerful solution for lifting heavy vehicles

Features:

• Robust and durable design suitable for lifting heavy vehicles
• Low minimum height of 230 mm ideal for low-clearance vehicles
• Flexible support beam extendable up to 1500 mm
• Height-adjustable support arm system compatible with modern lifts and pits
• Two-hand lowering operation with emergency release automatic safety locking system and overload protection valve
• Supplied with 2 extension sets (50/100 mm)

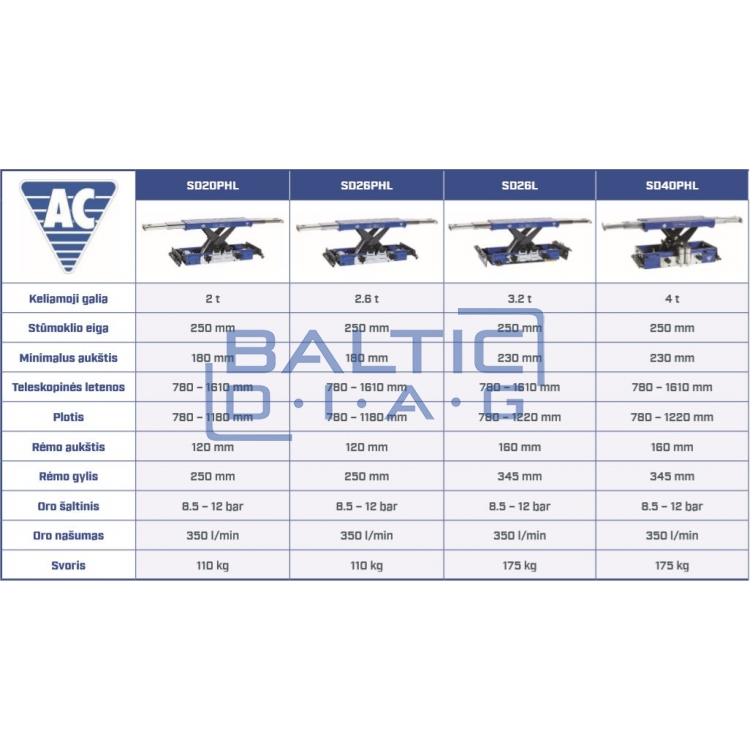

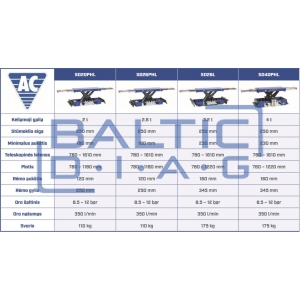

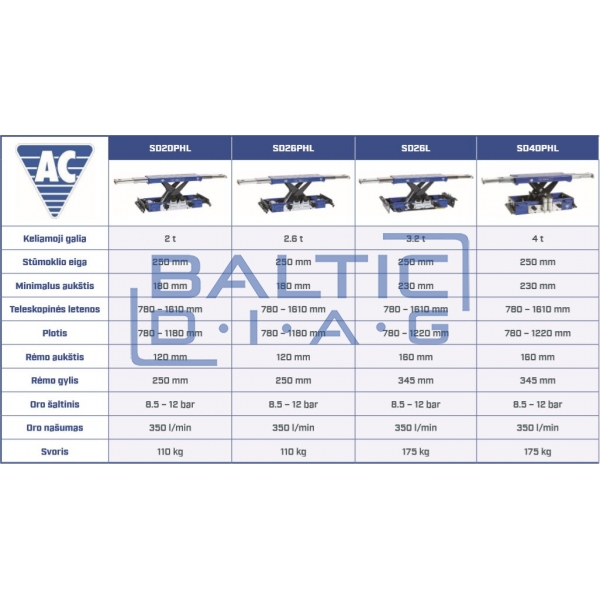

Specifications

• Lifting capacity 4.0 tons
• Lifting stroke 250 mm
• Minimum height 230 mm
• Support beam length 780 - 1500 mm
• Jack width 780 - 1220 mm
• Structure height 160 mm
• Structure depth 345 mm
• Required compressed air pressure 8.5 - 12 bar
• Required compressed air flow 350 L/min
• Weight 175 kg

Additional equipment

• HSD Pneumatic connection kit
• FSD2 Rubber support 40 mm (2 units required)
• FSD3 Rubber support 80 mm (2 units required)
• FW Support suitable for lifting under bolts etc. (2 units required)
• FW1 Support suitable for lifting under various axles (2 units required)
