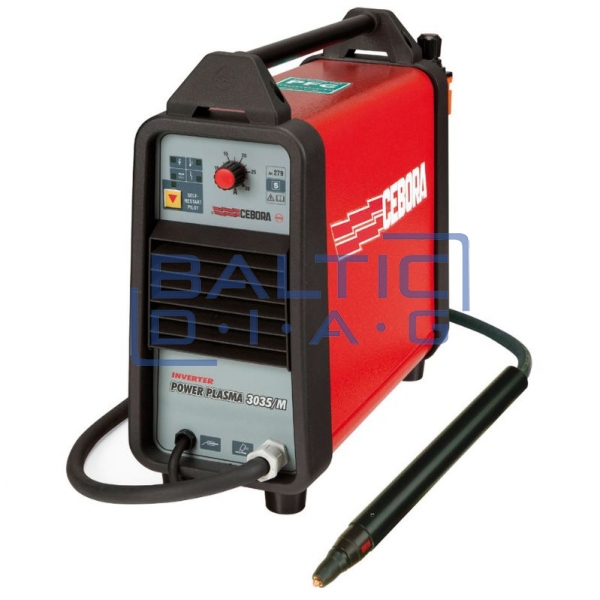

Plasma cutting machine POWER PLASMA 3035/M CNC CEBORA
Plasma cutting machine POWER PLASMA 3035/M CNC CEBORA
New

Plasma cutting machine POWER PLASMA 3035/M CNC CEBORA

  • SKU: BD70751
2,199.00 €

Prices shown include tax

Send Message

Description

Plasma cutting machine POWER PLASMA 3035/M CNC CEBORA

Country of origin: Italy, warranty period – 24 months

Optional accessories for this device are listed below!

POWER PLASMA 3035/M is a single-phase inverter-type plasma cutting machine with high-frequency ignition and automatic voltage switching. Despite its compact size and weight of only 13 kg, this unit delivers excellent cutting quality on all types of metals, including high-strength steel. It is ideally suited for use with CNC cutting systems.

Functions:
  • Simple and intuitive control panel
  • Synergic setting of cutting parameters
  • Automatic detection of worn consumables
  • Torch type and length recognition
  • “Pilot Self-Restart” – a function that automatically stops and restarts the electric arc during interrupted cutting
  • Can be powered by an electric generator (min. 6 kVA power)
Technical specifications:
  • Input voltage: 115 V / 230 V, 50/60 Hz, ±15 % / -20 %, single-phase
  • Fuse: 32 A (115 V) / 16 A (230 V), slow-blow
  • Power: 3.5 kVA 35 %, 2.8 kVA 60 %, 2.4 kVA 100 %
  • Current adjustment range: 5–30 A
  • Duty cycle (10 min at 40 °C): 30 A 35 %, 25 A 60 %, 22 A 100 %
  • Adjustment: Electronic, stepless
  • Cutting thickness for steel: recommended 8–12 mm, max 15 mm (5/8")
  • Air consumption: 60 l/min at 3.5 bar
  • Protection class: IP23S
  • Weight: 13 kg
  • Dimensions (LxWxH): 175 x 503 x 400 mm
Applications:
  • Light metal production
  • Handcrafted metalwork
  • Food industry
  • Auto body repair shops
  • Daily maintenance
  • Agricultural machinery
  • Rescue vehicle equipment
  • Tank manufacturing
AVAILABLE ACCESSORIES:
Handheld torch version – CEBORA CP40 MAR
  • This is a CEBORA CP40 MAR handheld torch with a fixed connection and 4 m cable. Designed for manual cutting with high-frequency ignition.
Straight torch for machine cutting – CEBORA CP40 DAR 6 m
  • This is a 6-meter torch with a fixed connection, designed for use with CNC cutting machines.
Straight torch for machine cutting – CEBORA CP40 DAR 12 m
  • This is a 12-meter torch with a fixed connection, also intended for use with CNC equipment.
Important: both DAR-type torches are designed specifically for use with automated (CNC) systems!
