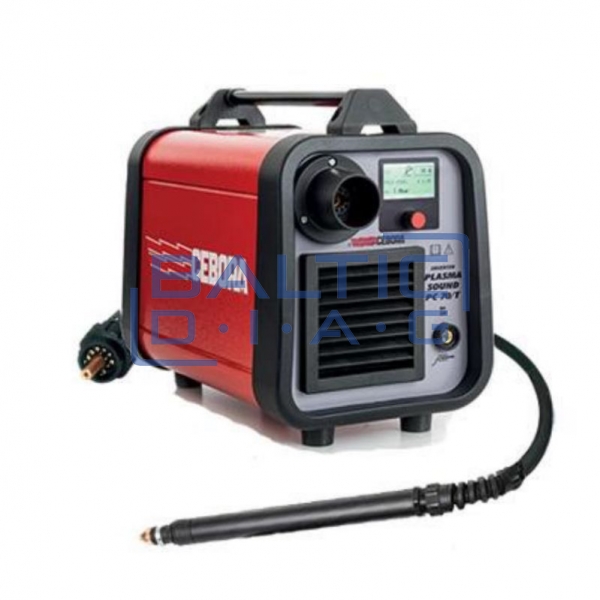

Plasma cutter PLASMA SOUND PC 70/T CEBORA

Plasma cutter PLASMA SOUND PC 70/T CEBORA

Country of origin: Italy, warranty period – 24 months

Optional accessories for this device are listed below!

PLASMA SOUND PC 70/T is a three-phase inverter-type multi-voltage plasma cutting machine with “On Air” ignition technology. The unit offers high performance, a wide current adjustment range, and the ability to cut steel up to 35 mm thick. It is ideal for both manual and machine cutting in industrial, maintenance, auto body repair, metal construction, and other sectors.

Functions:

• Three-phase power supply with automatic voltage recognition
• Electronic, stepless current adjustment
• “On Air” ignition system – ensures easy arc ignition
• Suitable for both manual and CNC cutting
• Compatible with 6 m and 15 m torches
• Robust and reliable housing for industrial use
• High duty cycle – up to 60% at 70 A
• Highly accurate and stable cutting even under heavy load

Technical specifications:

• Power supply: 208/220/230 V ±10% and 400/440 V ±10%, 50/60 Hz, three-phase
• Fuse: 20 A (230 V), 12 A (400 V), slow-blow
• Power: 12 kVA 35%, 10 kVA 60%, 8.5 kVA 100% (230 V); 12 kVA 60%, 10.5 kVA 100% (400 V)
• Current adjustment range: 20–70 A
• Duty cycle (10 min at 40 °C): 70 A 35%, 60 A 60%, 50 A 100%
• Cutting thickness on steel: recommended – 25 mm, maximum – 35 mm (1"–1 3/8")
• Torch length: 6 m or 15 m
• Air consumption: 230 l/min at 5.5 bar
• Adjustment: Electronic, stepless
• Protection class: IP23S
• Weight: 26 kg
• Dimensions (LxWxH): 286 x 515 x 406 mm

Available accessories:

• Hand torch – CEBORA CP 70C MAR 6 m
• Hand torch – CEBORA CP 70C MAR 15 m
• Machine torch for CNC cutting – CEBORA CP 70C DAR 6 m
• Machine torch for CNC cutting – CEBORA CP 70C DAR 15 m

DAR-type torches must be used with a control module!
