Plasma cutter (IGBT), 120 A, 40 mm
Plasma cutter (IGBT), 120 A, 40 mm
Plasma cutter (IGBT), 120 A, 40 mm
Plasma cutter (IGBT), 120 A, 40 mm
Plasma cutter (IGBT), 120 A, 40 mm

Plasma cutter (IGBT), 120 A, 40 mm

  • SKU: BD99421
817.96 €

LD LD
Prices shown include tax
Add to Cart

Send Message

Description

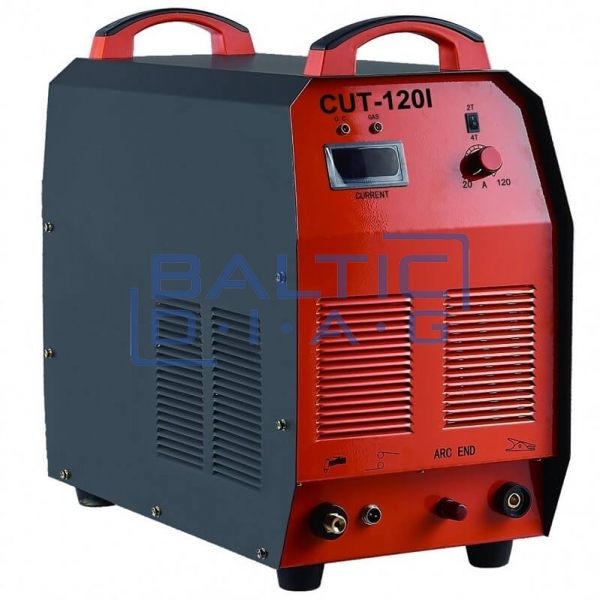

Plasma cutter (IGBT), 120 A, 40 mm

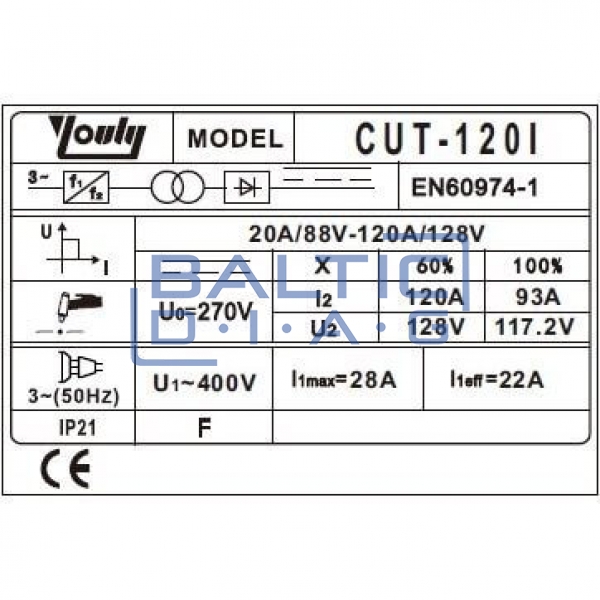

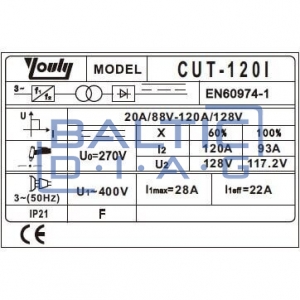

Technical data:
  • Supply voltage: 380 V / 50 Hz
  • Current range: 20 - 120 A
  • Cutting thickness: 1 - 40 mm
  • No-load voltage: 270 V
  • Operating voltage: 128 V
  • Duty cycle: 60%
  • Power: 19 kVA / 15.2 kW
  • Burner diameter: 1.2 mm
  • Working pressure: 5 bar
  • Maximum pressure: 8 bar
  • Average air consumption: 200 l/min
  • Electrical insulation class: F
  • Protection class: IP 21S
  • Device dimensions: 550 x 290 x 520 mm
  • Weight: 35 kg
  • CE conformity
The set includes:
  • Power cable, 1.6 m long
  • Plasma cutting torch (non-contact), 4 m long
  • Hose
  • Ground cable, 1.6 m long
  • A pressure regulator
