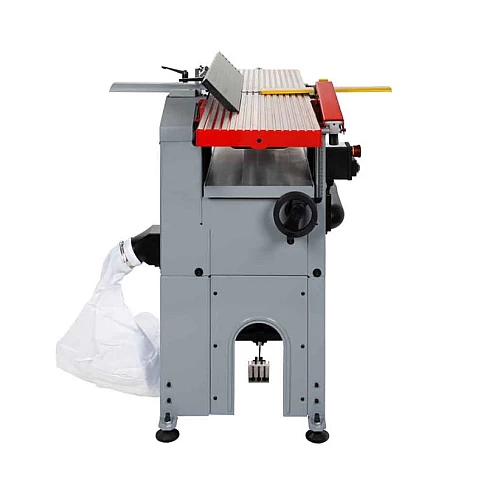

Planer-thicknesser Holzmann HOB305ABSSMW2

Planer-thicknesser Holzmann HOB305ABSSMW2

Country of origin: Germany, warranty period - 24 months

Note: Available in 400V or 230V versions

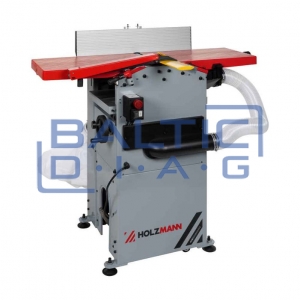

The Holzmann HOB305ABSSMW2 planer-thicknesser is a compact machine equipped with an integrated chip extractor and spiral cutter head, designed for professional and efficient woodworking. This model helps save both space and the cost of an external extraction system. The included mobility device allows easy movement and storage of the machine after use, making it especially suitable for small workshops or mobile working environments.

Functions:

• Planer-thicknesser with integrated chip extractor
• Quick switch between planing and thicknessing modes
• Replaceable dust bag – easy to change
• Solid cast aluminium pressure table – stable and durable
• Tiltable aluminium planing fence (90°–45°)
• Option to disable infeed drive during thicknessing mode
• Includes mobility device (2 swivel and 2 fixed castors with lifting/lowering function)

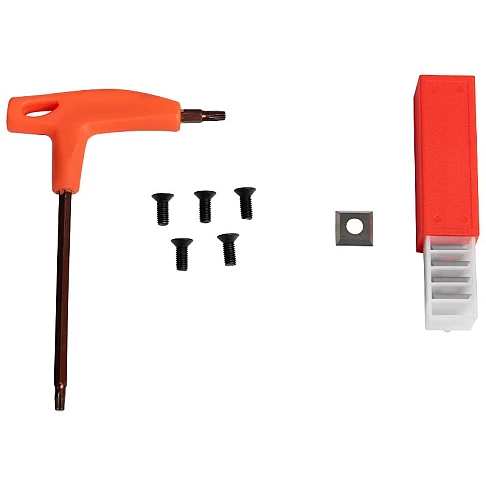

• Spiral cutter head (2 grooves, 28 inserts – 15 x 15 x 2.5 mm)
• Included in delivery: integrated extractor, stand, pre-installed cutter inserts, dust bag

Technical specifications:

• Planing table dimensions: 1075 x 305 mm
• Thicknessing table dimensions: 500 x 305 mm
• Thicknessing table height: 925 mm
• Maximum cutting depth (thicknessing): 1.6 mm
• Maximum cutting depth (planing): 3 mm
• Maximum workpiece height: 160 mm
• Planing fence dimensions: 643 x 126 mm
• Fence tilt: 90°–45°
• Cutter block diameter: Ø 62 mm
• Cutter block speed: 6700 rpm
• Number of inserts: 28 (spiral cutter head)
• Feed speed: 6 m/min
• Motor power (S1): 1800 W
• Voltage: 400 V / 50 Hz
• Cable length: 1.8 m
• Sound power level: 93.2 dB(A)
• Sound pressure level: 83.2 dB(A)
• Net weight: 93 kg
• Gross weight: 99 kg
• Packaging dimensions: 1225 x 690 x 590 mm (L x W x H)
• Overall dimensions: 1140 x 780 x 1080 mm
