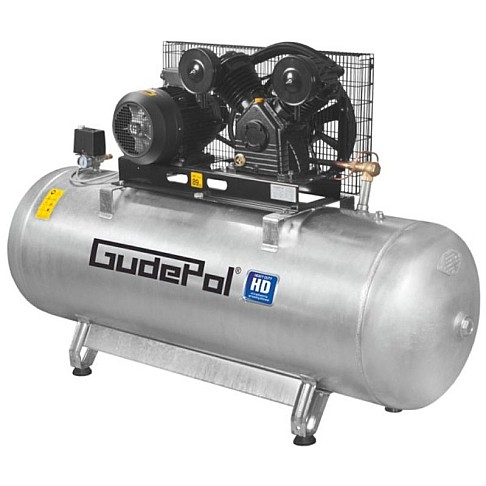

Piston air compressor 500L, 1200 L/min, 10 bar GudePol HD

Piston air compressor 500L, 1200 L/min, 10 bar GudePol HD

Functions:

• Easy and convenient control for everyday use
• Proven reliability – each unit is carefully tested during production
• Compressor designed for industrial loads and demanding work conditions
• Cast-iron, low-speed pump – high efficiency and long-lasting performance
• Electric motor with IP55 protection class – suitable for continuous operation according to class S1
• Pressure switch with thermal protection and no-load start system – ensures motor protection and smooth start-up
• Efficient cooling system – pulley fan and inter-cylinder coolers ensure optimal heat dissipation
• Belt drive with taperlock system – precise and easy drive adjustment
• Air tank – 100% galvanized inside and outside, compliant with PN-EN ISO-1461 anti-corrosion protection standard
• High-quality components – ensure long service life and reliable performance

Technical specifications:

• Suction capacity: 72 m³/h
• Suction capacity: 1200 L/min
• Motor power: 7.5 kW
• Noise level: 80 dB
• Tank capacity: 500 L
• Maximum pressure: 10 bar
• Number of cylinders: 2
• Number of compression stages: 1
• Supply voltage: 400 V
• Rotation speed: 970 rpm
• Dimensions (width x depth x height): 1900 x 600 x 1190 mm
• Weight: 250 kg
