Motorcycle Diagnostic Tool MOTOMASTER STD OBDSTAR

Country of origin: China, warranty period – 24 months

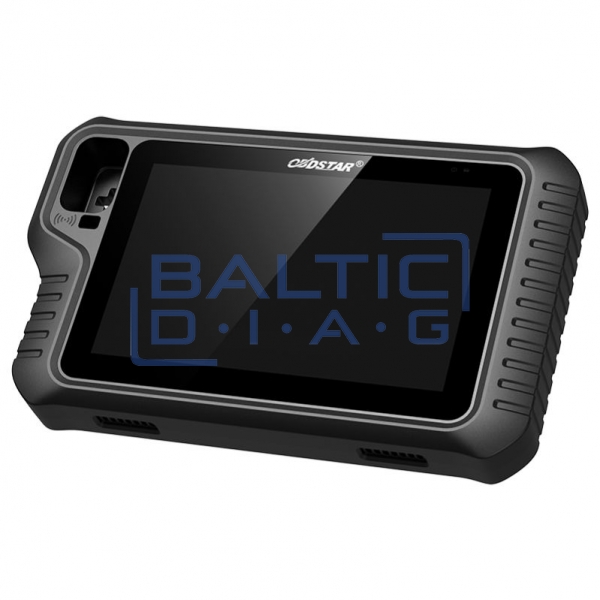

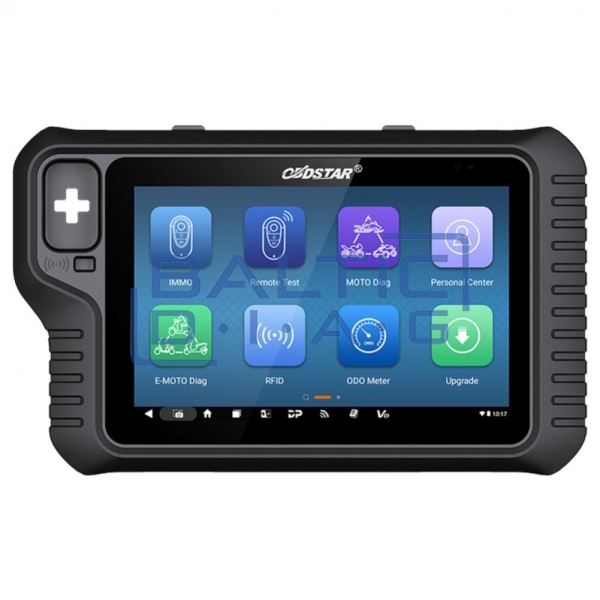

MOTOMASTER STD is an advanced generation intelligent diagnostic tool designed for diagnostics of motorcycles, snowmobiles, ATVs, and UTVs, as well as key programming, odometer calibration, ECU flashing, and more. Running on Android 11, this device features a high-resolution 8-inch display, a powerful quad-core processor, extensive manufacturer support, and rich functionality for professional workshop use.

Functions:

• Android 11 operating system, one-click OTA updates
• Intuitive menu navigation for easy operation
• Full diagnostic package: code reading/clearing, data streams, activation tests, coding, settings
• Freely selectable menu items for quick access to needed functions
• Real-time data recording and playback for precise fault detection
• Wi-Fi connection with one-click updates
• Remote support via one-click connection to OBDSTAR technicians
• Supports diagnostics for the majority of motorcycle brands worldwide – thousands of models
• Screen recording and wireless screen casting functions
• OBDSTAR mobile app includes DLC location, fault code lookup, technical bulletins, manual service reset, and parameter settings
• First fault guidance, technical data, bulletins, and DLC location help quickly and accurately identify faults
• System automatically displays the most logical and common fault based on the selected model and suggests corrective actions
• Exclusive interactive wiring diagrams and component description system
• Multiple data display modes: text, waveform, instrument panel simulation
• Automatic control module scanning, VIN recognition, ECU programming and settings
• Instrument cluster coding
• TPMS (tire pressure monitoring system) configuration
• Service light reset
• CO adjustment
• Idle speed adjustment
• A/F ratio reset
• ABS control module calibration
• EOL mode (End of Line)
• Transmission memory reset
• Computer memory (RAM/FLASH) clearing

Supported Functions and Brands:

Motorcycle / snowmobile / ATV / UTV diagnostics

• ASIA: AEON, BAJAJ, BENELLI (DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA
• EUROPE: ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC, FB MONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, ITALJET, KEEWAY, KRAMER, KREIDLER, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, LEXMOTO, MACBOR, MALAGUTI, MALCOR, MASH, MBK, MBP, MGK HM, MH, MINSK, MITT, MOTO GUZZI, MOTO MORINI, MOTRON, MUTT, MV AGUSTA, NOX, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, RBS, RIEJU, ROYAL ALLOY, SCORPA, SHERCO, STELS, SUMCO, SWM, TRIUMPH, URAL, VENT, VERVE MOTO, VESPA, WOTTAN
• AMERICAS: ACELLERA, AKT, ARCTICCAT, BRP, BUELL, COLEMAN, CSC, DAFRA, HARLEY DAVIDSON, INDIAN, KELLER, POLARIS, RVM, UM, VICTORY, VICTORY_colombia
• CHINA: ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM, GAOKIN, GEELY, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JINCHENG, JNQQSUZUKI, KEEWAY, KL, KOVE, LIFAN, LINHAI, LONGJIA, LONXIN, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SENKE, SHINERAY, SINNIS, TARO, TIANMA, TRMOTOR, VOGE, WYHONDA, XDZHONDA, ZONTES

E-Moto diagnostics

• BROSE, NIU, YADEA, ZEEHO

Motorcycle key programming (IMMO)

• EUROPE: BMW, DUCATI, ITALJET, PEUGEOT, PIAGGIO, TRIUMPH
• AMERICAS: BRP, HARLEY DAVIDSON, INDIAN, POLARIS
• ASIA: HONDA, KAWASAKI, SUZUKI, YAMAHA
• CHINA: DAYANG, HAOJUE

Note: HONDA, SUZUKI, YAMAHA models require optional P003+ kit for bench mode key programming.

Programmer (odometer calibration via dump)

• EUROPE: APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH
• AMERICAS: BUELL, HARLEY-DAVIDSON
• ASIA: HONDA, KAWASAKI, SUZUKI, YAMAHA
• CHINA: HAOJUE, KYMCO

Odometer calibration via OBD/Bench

• APRILIA, BRP, DUCATI, KTM

ECU flashing support

• APRILIA, BRP, CFMOTO, DERBI, GILERA, ITALJET, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, QJBENELLI, ROYAL ENFIELD, VESPA

Key making support

• APRILIA, BMW, DUCATI, HONDA, KAWASAKI, PIAGGIO, SUZUKI, YAMAHA

MOTOMASTER STD configuration includes:

• MOTO Diag + E-MOTO Diag + IMMO + Cluster Recalibration + ECU Flasher + Make Key

Technical specifications:

• Operating system: Android 11
• Processor: 64-bit Cortex-A55, quad-core, 2.0 GHz
• Battery: 9000 mAh
• Memory: 4+64 GB
• Display: 8.0 inch fully laminated sunlight-readable
• Resolution: 1280 × 800

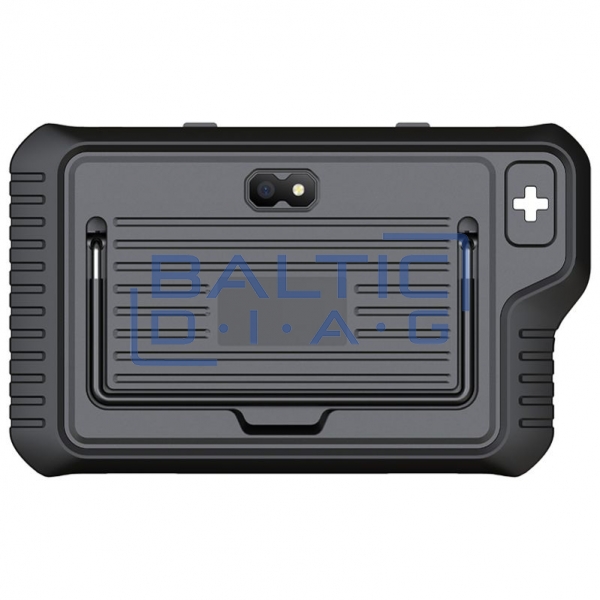

• Camera: rear 800W px, autofocus
• Bluetooth: 5.0
• Wi-Fi: dual-band 2.4G / 5G

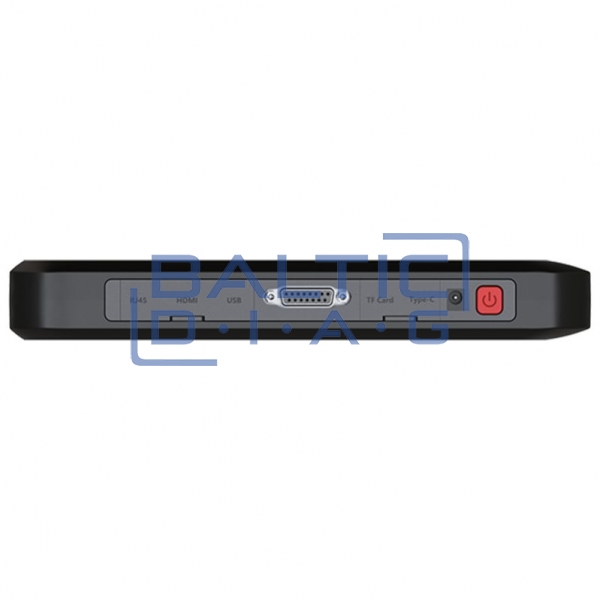

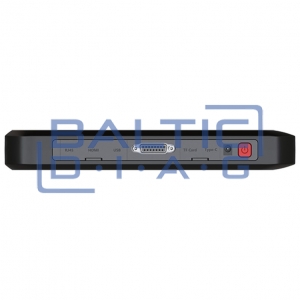

• External interfaces: RJ-45, HDMI, TYPE-A, TYPE-C
• VCI: built-in CANFD, DOIP, Low-Speed CAN, etc.
• RFID: built-in
• Remote test: built-in

Included accessories in MOTOMASTER STD version:

• M001 – Main cable
• M002 – Power cable
• M002A – GND cable
• M003A – Multi-functional jumper
• M004 – APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA -3 adapter
• M005 – KAWASAKI 4+6 adapter
• M006 – KAWASAKI 4+4 adapter
• M012A – SUZUKI -6 adapter
• M015A – HONDA -4 adapter
• M018A – YAMAHA -3+4+3 adapter
• M019 – KTM -6 adapter
• M021A – AEON/BENELLI/BENELLI DSK/QJ BENELLI -6 adapter
• M026 – SYM -3 adapter
• M027 – KYMCO/KAWASAKI -3 adapter
• M034 – HARLEY-DAVIDSON -4+6 adapter
• M037 – DUCATI -4 adapter
• M040 – BMW -10 adapter
• M041 – OBD -6 adapter
• M042A – INDIAN/VICTORY -8 adapter
• M043 – BRP -6 adapter
• M061 – YAMAHA -3 adapter
• 12V2A – Charger
