Motorcycle diagnostic tool MOTOMASTER FULL OBDSTAR

Motorcycle Diagnostic Tool MOTOMASTER FULL OBDSTAR

Country of origin: China, warranty period – 24 months

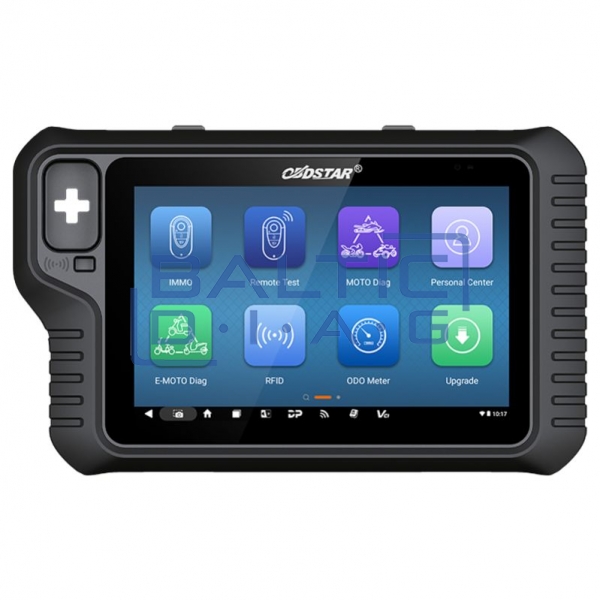

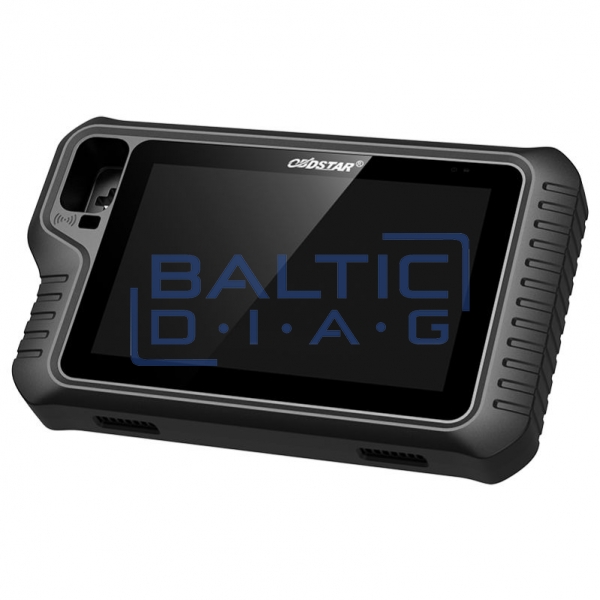

MOTOMASTER FULL is an advanced generation intelligent diagnostic tool designed for diagnostics of motorcycles, snowmobiles, ATVs, and UTVs, as well as key programming, odometer calibration, ECU flashing, and more. Running on the Android 11 operating system, this device features a high-resolution 8-inch display, a powerful quad-core processor, extensive manufacturer support, and a wide range of features for professional workshop use.

Functions:

• Android 11 operating system with one-click OTA update
• Intuitive menu navigation for quick mastering of the device
• Full diagnostic functions: reading/clearing fault codes, data streams, activation tests, coding, settings
• Freely selectable menu items for quick access to required functions
• Real-time data recording and playback for precise sensor/component fault detection
• Wi-Fi connection with one-click updates
• One-click remote support – OBDSTAR technicians can connect to your device
• Supports diagnostics for the majority of motorcycle brands worldwide – thousands of models
• Screen recording and wireless casting functions
• OBDSTAR mobile app includes DLC location, fault code lookup, technical bulletins, manual service light reset, and other parameter functions
• First fault guidance, support data, technical bulletins, and DLC locations help to quickly and accurately identify faults
• The system automatically suggests the most logical and common fault based on the selected model, offering specific corrective actions
• Exclusive interactive wiring diagrams and component description system
• Multiple data display modes: text, waveform, instrument simulation
• Automatic scanning of control modules, VIN recognition, ECU programming and settings
• Instrument cluster coding
• TPMS (tire pressure monitoring system) configuration
• Service light reset
• CO adjustment
• Idle speed adjustment
• A/F ratio (air-fuel) reset
• ABS control module calibration
• EOL mode (End Of Line)
• Transmission memory reset
• Computer memory (RAM/FLASH) clearing

Supported functions and brands:

Motorcycle / snowmobile / ATV / UTV diagnostics

• ASIA: AEON, BAJAJ, BENELLI (DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA
• EUROPE: ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC, FB MONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, ITALJET, KEEWAY, KRAMER, KREIDLER, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, LEXMOTO, MACBOR, MALAGUTI, MALCOR, MASH, MBK, MBP, MGK HM, MH, MINSK, MITT, MOTO GUZZI, MOTO MORINI, MOTRON, MUTT, MV AGUSTA, NOX, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, RBS, RIEJU, ROYAL ALLOY, SCORPA, SHERCO, STELS, SUMCO, SWM, TRIUMPH, URAL, VENT, VERVE MOTO, VESPA, WOTTAN
• AMERICAS: ACELLERA, AKT, ARCTICCAT, BRP, BUELL, COLEMAN, CSC, DAFRA, HARLEY DAVIDSON, INDIAN, KELLER, POLARIS, RVM, UM, VICTORY, VICTORY_colombia
• CHINA: ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM, GAOKIN, GEELY, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JINCHENG, JNQQSUZUKI, KEEWAY, KL, KOVE, LIFAN, LINHAI, LONGJIA, LONXIN, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SENKE, SHINERAY, SINNIS, TARO, TIANMA, TRMOTOR, VOGE, WYHONDA, XDZHONDA, ZONTES

E-Moto diagnostics

• BROSE, NIU, YADEA, ZEEHO

Marine (jet-ski) diagnostics

• BRP (SEA-DOO), HONDA, KAWASAKI, YAMAHA

Motorcycle key programming (IMMO)

• EUROPE: BMW, DUCATI, ITALJET, PEUGEOT, PIAGGIO, TRIUMPH
• AMERICAS: BRP, HARLEY DAVIDSON, INDIAN, POLARIS
• ASIA: HONDA, KAWASAKI, SUZUKI, YAMAHA
• CHINA: DAYANG, HAOJUE

Note: HONDA, SUZUKI, YAMAHA models require optional P003+ kit for bench mode key programming.

Programmer (odometer calibration via dump file)

• EUROPE: APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH
• AMERICAS: BUELL, HARLEY-DAVIDSON
• ASIA: HONDA, KAWASAKI, SUZUKI, YAMAHA
• CHINA: HAOJUE, KYMCO

Odometer calibration via OBD/Bench

• APRILIA, BRP, DUCATI, KTM

ECU flashing support

• APRILIA, BRP, CFMOTO, DERBI, GILERA, ITALJET, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, QJBENELLI, ROYAL ENFIELD, VESPA

Key generation (Make Key)

• APRILIA, BMW, DUCATI, HONDA, KAWASAKI, PIAGGIO, SUZUKI, YAMAHA

MOTOMASTER FULL configuration includes:

• MOTO Diag + Marine Diag + E-MOTO Diag + IMMO + Cluster Recalibration + ECU Flasher + Make Key

Technical specifications:

• Operating system: Android 11
• Processor: 64-bit Cortex-A55, quad-core, 2.0 GHz
• Battery: 9000 mAh
• Memory: 4+64 GB
• Display: 8.0 inch fully laminated, sunlight-readable
• Resolution: 1280 × 800

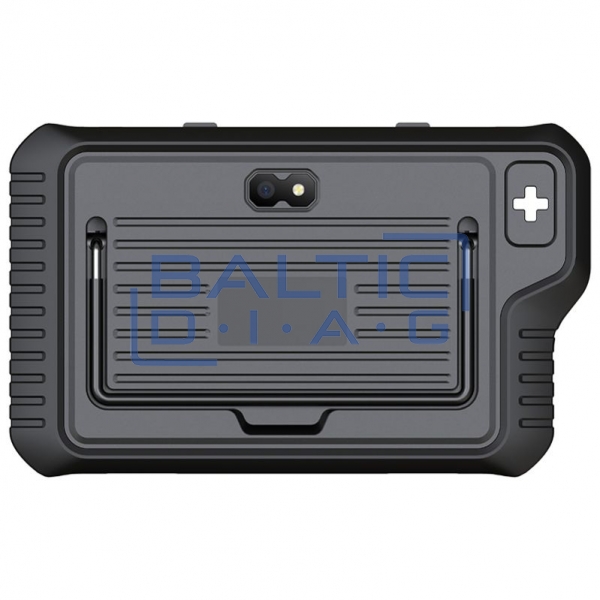

• Camera: rear 800W px, autofocus
• Bluetooth: 5.0
• Wi-Fi: dual-band 2.4G / 5G

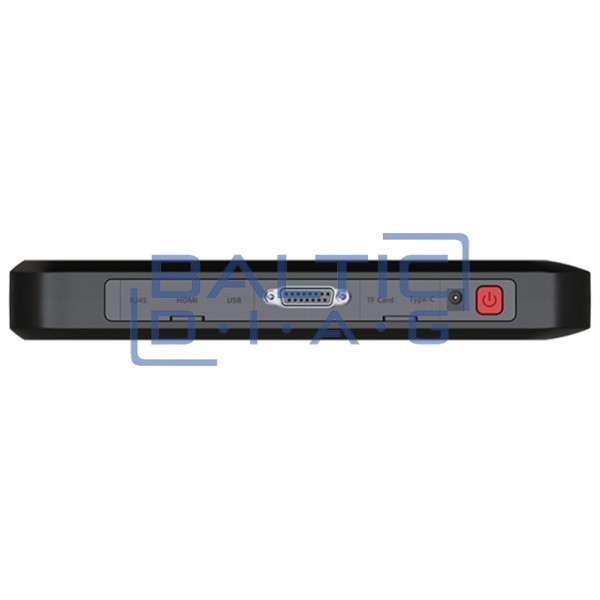

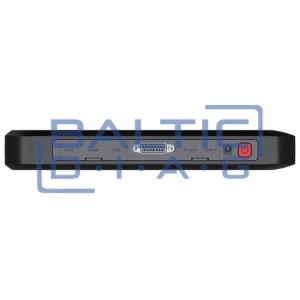

• External interfaces: RJ-45, HDMI, TYPE-A, TYPE-C
• VCI: built-in CANFD, DOIP, Low-Speed CAN, etc.
• RFID: built-in
• Remote test: built-in

Included accessories in MOTOMASTER FULL version:

• M001 – Main cable
• M002 – Power cable
• M002A – GND cable
• M003A – Multi-functional jumper
• M004 – APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA -3 adapter
• M005 – KAWASAKI 4+6 adapter
• M006 – KAWASAKI 4+4 adapter
• M012A – SUZUKI -6 adapter
• M015A – HONDA -4 adapter
• M018A – YAMAHA -3+4+3 adapter
• M019 – KTM -6 adapter
• M021A – AEON/BENELLI/BENELLI DSK/QJ BENELLI -6 adapter
• M026 – SYM -3 adapter
• M027 – KYMCO/KAWASAKI -3 adapter
• M034 – HARLEY-DAVIDSON -4+6 adapter
• M037 – DUCATI -4 adapter
• M040 – BMW -10 adapter
• M041 – OBD -6 adapter
• M042A – INDIAN/VICTORY -8 adapter
• M043 – BRP -6 adapter
• M061 – YAMAHA -3 adapter
• 12V2A – Charger
