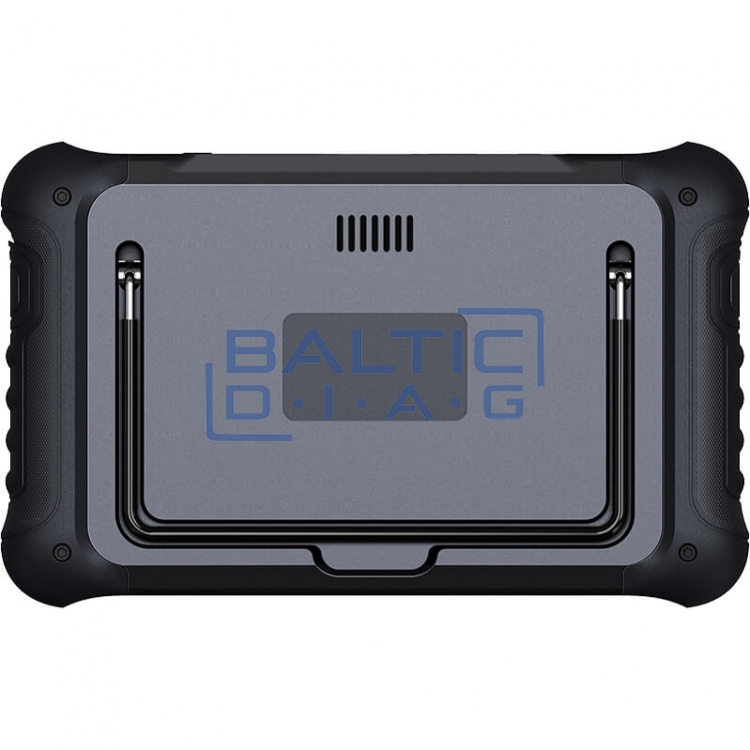

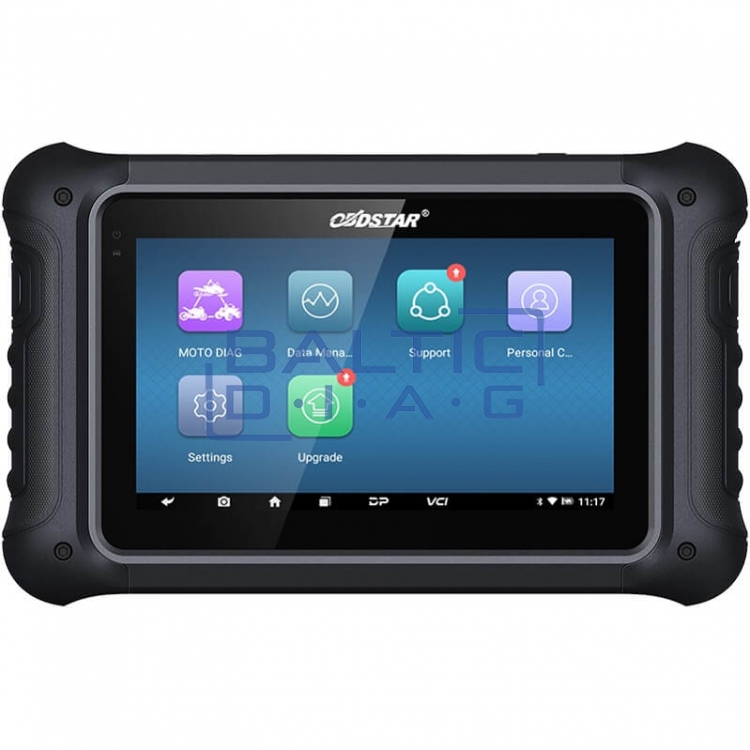

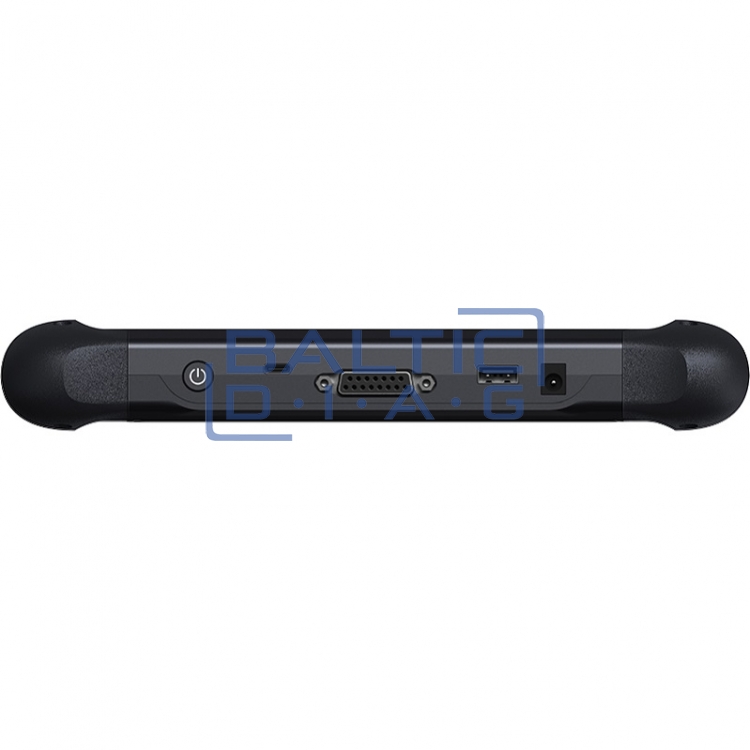

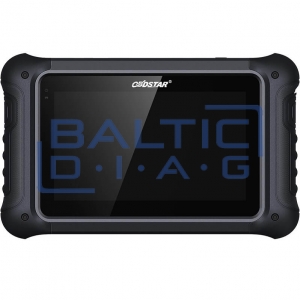

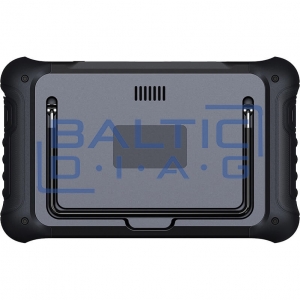

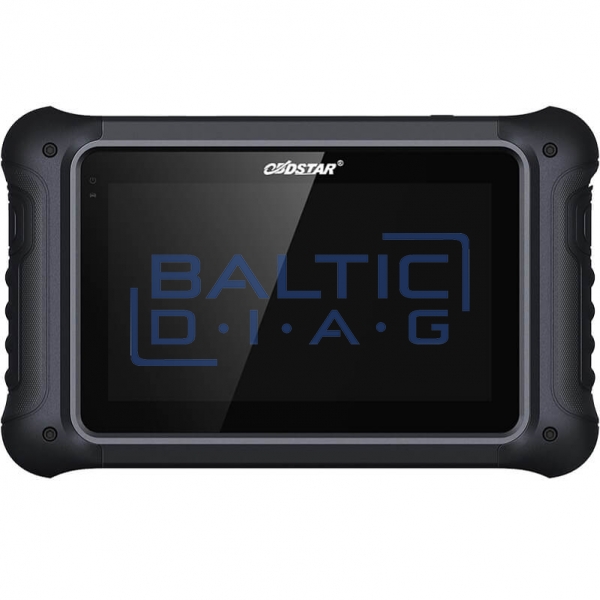

Motorcycle diagnostic equipment OBDStar MS70

Motorcycle diagnostic equipment OBDStar MS70

MS70 is a new generation, intelligent diagnostic equipment for various types of motorcycles (Street Motorcycles, Snowmobiles, ATVs, UTVs, etc.). The device uses the RK3128, a quad-core processor that gives it exceptional speed and efficiency, and a 7" touch screen.

Features:

• Android 5.1.1 operating system
• Simple and easy to understand art that is easy to understand and use
• Provides full diagnostic functions such as: error scanning, error clearing, live parameter monitoring, various component activation, coding, setting adjustment, etc.
• The possibility to adjust the layout of the working areas according to your wishes and needs
• Monitor, record and view live parameters. This will allow you to quickly and accurately identify malfunctioning sensors or malfunctions of various components
• Wi-Fi access to the Internet, possible equipment updates, at the push of a button
• Ability to have online access to the OBDStar technician team
• Supports error scanning and diagnostics for various motorcycle manufacturers' models

Functions:

• Primary support information, motorcycle connection information, current error information, etc.
• The information source is being changed. Option to choose display method: text, line chart, column chart.
• Automatic data reading, automatic VIN code reading, programming or coding of control modules, ECU parameter setting, dashboard coding, tire pressure sensor monitoring system, service interval warning reset, CO adjustment, idle speed adjustment ABS control module settings, etc.

Supported motorcycle manufacturers:

• European: Aprilia, Benelli, BMW, Derbi, Ducati, Gilera, HM, Husqvarna, KTM, Moto Guzzi, Peugeot, Piaggio, RBS, Rieju, Royal Alloy, Triumph, Vespa
• United States: Accellera, BRP, Harley - Davidson, Indian, Polaris, Victory
• Asian: Aeon, Bajaj, Hartford, Hero, Honda, Hyosung, Kawasaki, Kymco, PGO, Royal Enfield, Suzuki, SYM, TVS, Yamaha, CFMoto

Technical data:

• Operating system: Android 5.1.1
• Processor: RK3128, quad-core ARM cortex A7
• Battery: 3700 mA, Li-ion
• Supported SD card: 32 GB, Micro SD
• Internal memory: 16 GB
• Screen: LDC, 7" inches, touch
• LCD resolution: 1024 x 600
• Internet connection: Wi-Fi
• Operating temperature: -20°C ~ +55°C
• Weight: 0.766 kg
• Dimensions: 243 x 148 x 36 mm

Accessories:

• Main diagnostic cable
• Power cables
• Grounding
• Multi-functional connector
• Aprilia / Ducati / Honda / KTM / Piaggio / Vespa / Yamaha -3
• Kawasaki -4 +6
• Kawasaki -4 +4
• Suzuki -6
• Honda -4
• Yamaha -3 +4 +3
• KTM-6
• AEON / Benelli / Benelli DSK / QJ Benelli -6
• SYM-3
• Kymco / Kawasaki -3
• Harley-Davidson -4+6
• Ducati -4
• OBD-6
• Indian / Victory -8
• Charger

Supported motorcycle manufacturers and features:
