Mobile welding fume extraction system GYS EVO 2.1 RE

Pre-order

3,932.50€

Ex Tax: 3,250.00€

Manufacturer:: GYS
SKU: BD28230

GYS

Prices include VAT

Qty

Add to Cart

Add to Wish List

Want to buy or learn more?

Fill out the inquiry form

Information

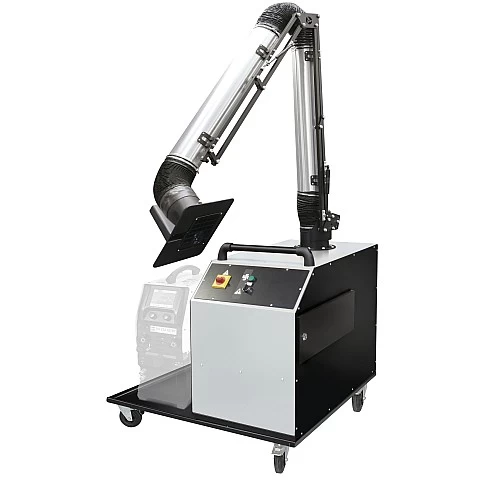

Mobile Welding Fume Extraction System GYS EVO 2.1 RE

Country of origin: Netherlands, warranty period – 24 months

The EVO 2.1 RE is a single-phase fume extraction unit designed to collect and filter dry fumes generated during welding processes (MMA, TIG, MIG/MAG). The included 3-meter-long 160/3 extraction arm features a durable aluminum construction, is fully adjustable, and can rotate 360°, allowing precise control of the fume extraction point. The device includes a 3-stage filtration system and an option to exhaust fumes outside through a Ø150 mm outlet.

Features:

Three-stage filtration system (metal pre-filter, pleated/HEPA filter)
External fume exhaust outlet with Ø150 mm connection
Control panel with fan mode indicator and power switch
230 V work platform for a welding machine (up to 180 kg)
Adjustable airflow with a hood handle for easy maneuvering
Protective grid on the extraction arm to prevent accidental suction of materials (e.g., fabric/paper)
Arm rotates 360°
Lightweight yet durable aluminum tube
Included in the set: 230 V power plug for trolley, 3 m power cable, 230 V plug for welding machine on trolley, EVO 2.1 cable reel

Technical specifications:

Power supply: 230 V / single-phase / 50–60 Hz
Current: 16 A
Motor power: 1100 W
Airflow: 1500 m³/h
Suction pressure: 1400 Pa
Noise level: 73 dB(A)
Arm length: 3 m
Arm weight: 100 kg
IP rating: IP55
Hose diameter: 160 mm
Included in the set: Filter 1.2
