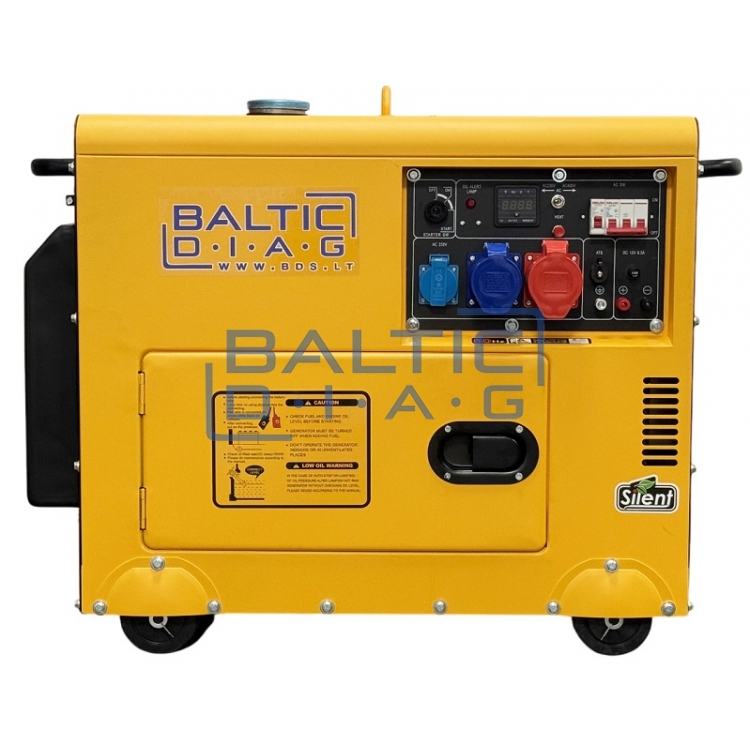

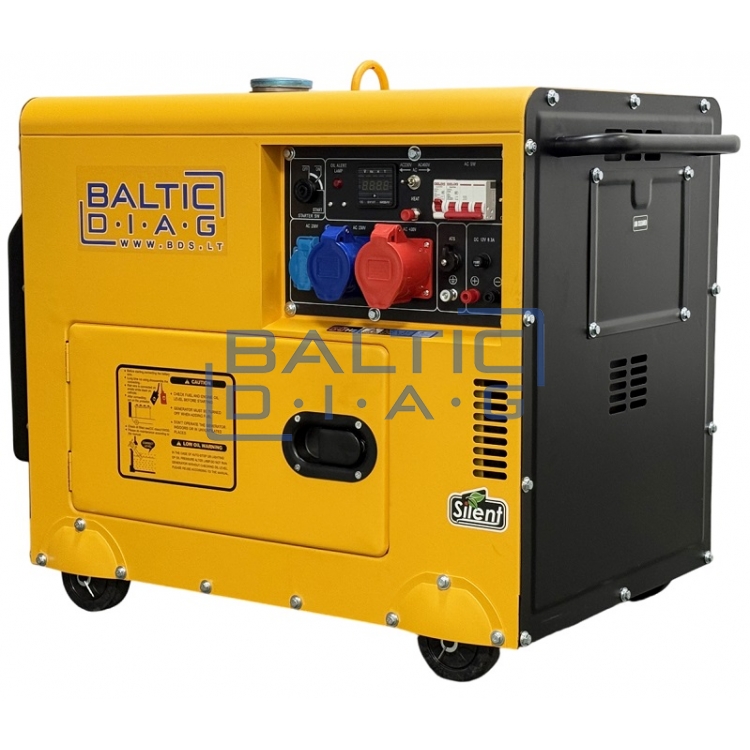

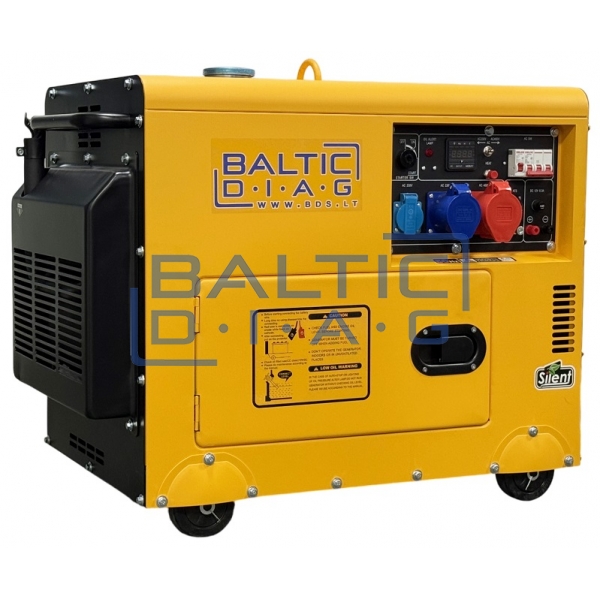

Mobile diesel generator BD9500SE, 7 kW

Mobile diesel generator BD9500SE, 7 kW

Mobile diesel generator BD9500SE is a powerful, reliable and easy-to-use device that ensures stable power supply even in extreme conditions. With a power of 7 kW, this generator is perfect for both domestic and professional use. Its features make it an indispensable device on construction sites, temporary event venues or as a backup power source in the household. This diesel generator is an economical and functional solution that will guarantee reliable power supply when you need it most.

Features:

• Electronic generator start system
• Maintaining equal power when working in all phases. The generator has a function that allows the generator user to select the desired electrical voltage, 400 V or 230 V. Due to this feature, the generator can generate 100% of power when working in three phases and even 85-90% when working in one phase. When conventional diesel three-phase generators only produce 33% of the power per phase.

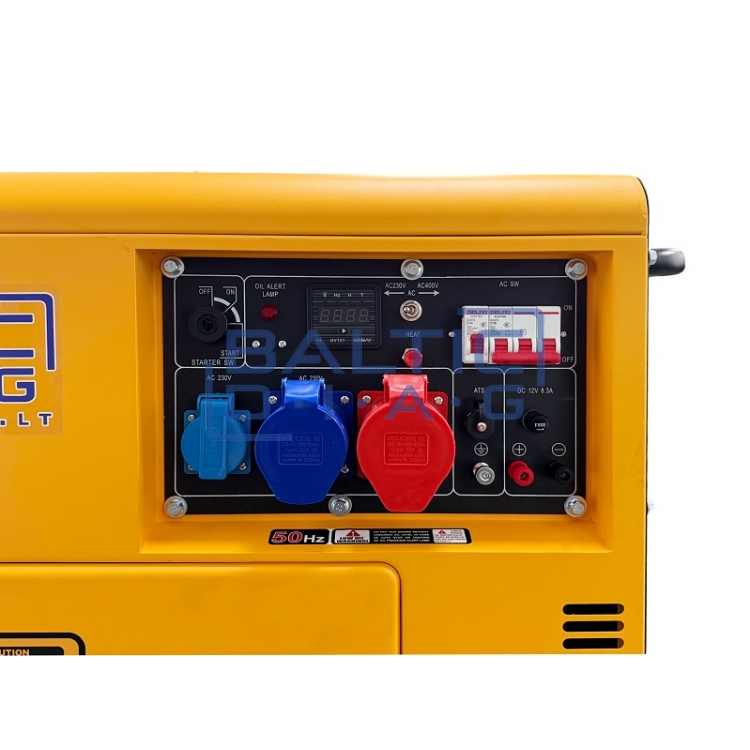

• Digital generator information display
• A heater is installed. In low temperatures and if there is a problem with starting the generator, press and hold the heating button for about 10 seconds. Thanks to this action, you will warm up the air in the air supply system, which will allow the generator to start much easier and smoother
• Compatible with an external ATS device. This ATS device can be purchased additionally for 270.00 Eur including VAT
• Quality generator wheels. The mobile diesel generator weighs approximately 150 – 350 kg, so these rubber generator wheels ensure smooth and high-quality transportation of the device

Technical parameters:

• Generated stand-by electrical power: 7.5 kW / 9.4 kVA
• Generated prime electrical power: 7 kW / 8.75 kVA
• Generated electrical voltage: 230 / 400 V
• Frequency: 50 Hz
• Number of phases: three-phase with selection
• AVR system: integrated
• AVR voltage regulation accuracy: ± 0.5%
• DC output: 12 V / 8.3 A
• Generator type: synchronous
• Generator starting system: electronic
• Noise level (~ 7 m): 69 – 72 dB
• Cooling system: air-cooled
• Number of cylinders: 1 cylinder
• Piston duty cycle: 4-stroke
• Engine speed: 3000 rpm
• Engine model: 195FC
• Engine displacement: 531 cm3
• Piston diameter and stroke: 95 x 75 mm
• Fuel consumption at 100% load: 1.9 l/h
• Fuel consumption at 75% load: 1.43 l/h
• Fuel consumption at 50% load: 0.952 l/h
• Fuel tank capacity: 16 l
• Continuous working : 7 hours
• Oil capacity: 1.65 l
• Fuel supply system: direct injection
• Operating temperature: from - 15 °C to + 40 °C
• Battery capacity: 30 Ah

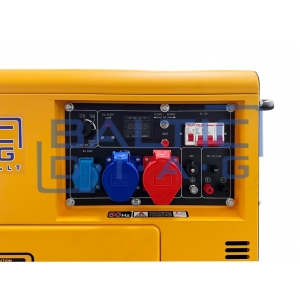

• Output power plugs: integrated
• Protection class: IP23
• Package dimensions: 950 x 550 x 760 mm
• Weight: 163 kg

Complete set:

• Basic service tools
• Power plugs x 2 pcs.
• Starter keys x 2 pcs.
• User manual
• Generator wheels x 4 pcs.
