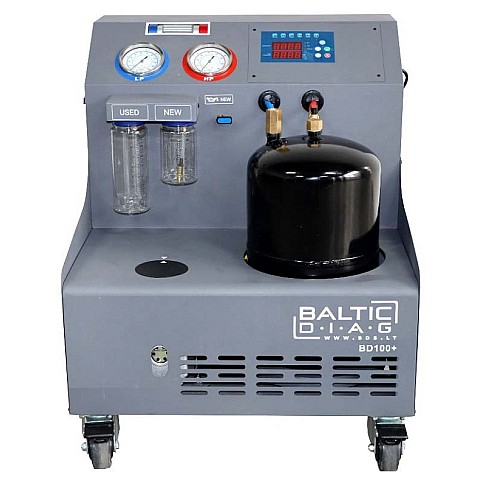

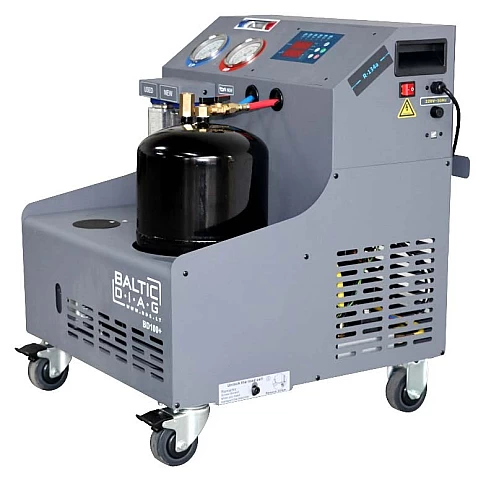

Mobile air conditioner filling station with washing function BD100Plus

Mobile air conditioner filling station with washing function BD100Plus

BD100Plus – designed and manufactured for workshops with a limited budget for air conditioning system maintenance or for companies whose work is focused on providing mobile services. This compact device is easily transported using an SUV or pickup truck, making it perfect for providing services in outdoor conditions. In order to reduce the cost of the equipment and increase its availability to more workshops, manufacturers have abandoned some automatic functions: automatic oil injection – oil is injected manually. The refrigerant tank does not have a heating strip. BD100Plus is a practical and economical choice for workshops seeking to effectively maintain air conditioning systems, maintaining quality at an affordable price. This is a great solution for workshops looking for mobility and flexibility in their work!

Features:

• Compact design, the equipment can be placed in SUV type vehicles and then used for mobile work
• The system is equipped with an automatic temperature calculation system
• Simple, uncomplicated equipment control
• The equipment is versatile, it can be used in various working environments
• Easy equipment maintenance
• Integrated air conditioning system washing function, which allows you to perform the washing function after changing the oil of the air conditioning pump

Functions performed:

• Refrigerant tank filling
• Refrigerant extraction
• Air conditioning system vacuuming
• Oil injection
• Air conditioning system filling
• Air conditioning system washing

Technical data:

• Power supply: 230 V / 50 Hz / 1 fz
• Refrigerant type: R-134a
• Compressor power: 3/8 Ag
• Vacuum pump: 60 l/min
• Possibility of adjusting the vacuuming duration: 1 - 60 min
• Max. refrigerant extraction rate: 0.25 kg/min
• Max. refrigerant filling rate: 2 kg/min
• Refrigerant tank capacity accuracy: ±10 g
• Refrigerant tank capacity: 10 kg
• New oil capacity: 250 ml
• Used oil capacity: 400 ml
• Oil tank features: ultra-clear, manual oil filling
• Max. operating pressure: 20 bar
• High pressure gauge range: -1 bar to 30 bar
• Low pressure gauge range: -1 bar to 16 bar
• Tank pressure gauge range: -1 bar to 22 bar
• System flushing time range: 1 – 60 min
• Weight: 58 kg
• Dimensions: 552 x 550 x 680 mm
• Package dimensions: 645 x 610 x 805 mm
