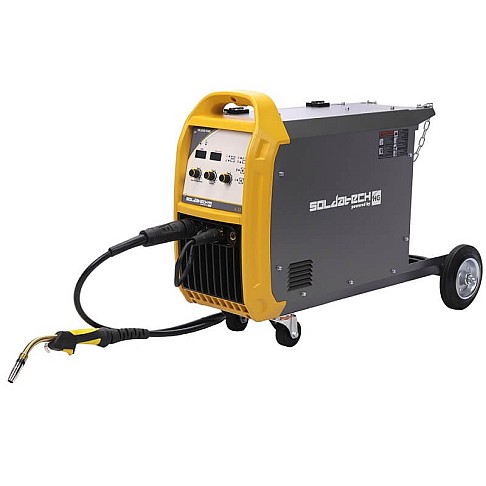

MIG MAG welding machine 250A

MIG MAG welding machine 250A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

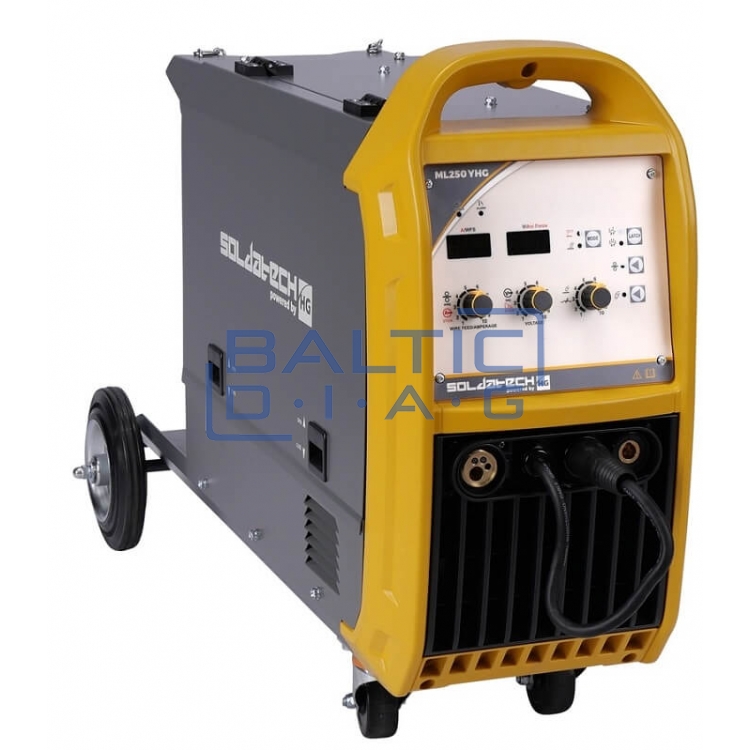

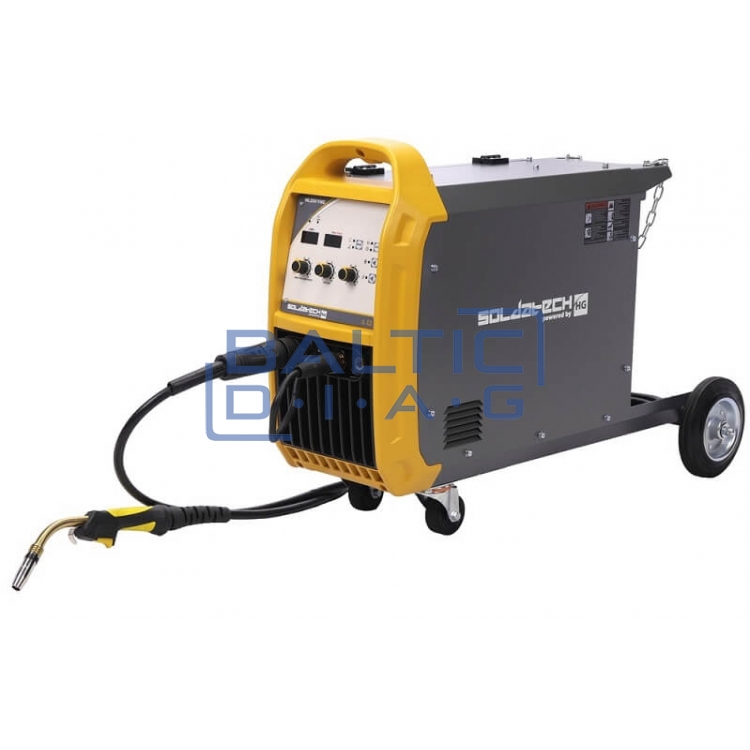

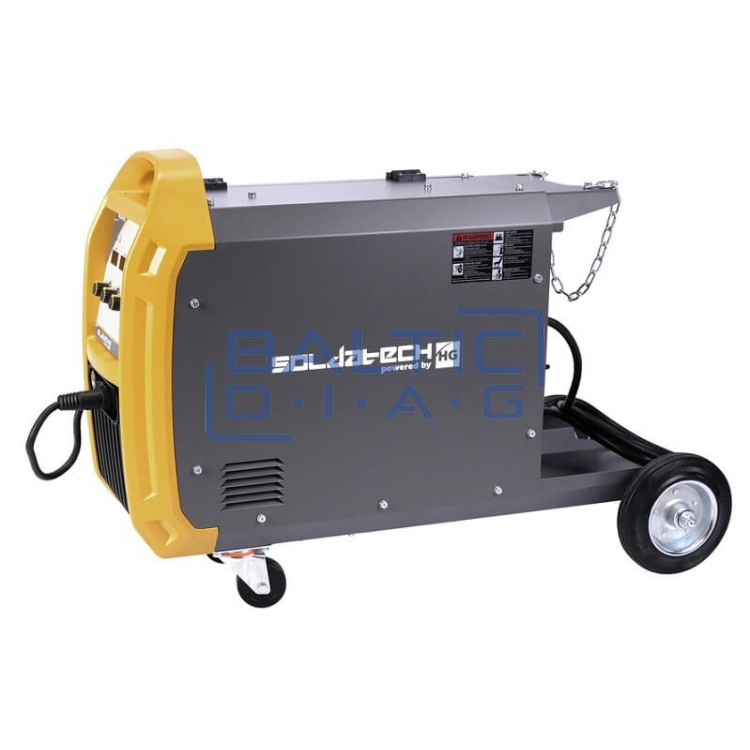

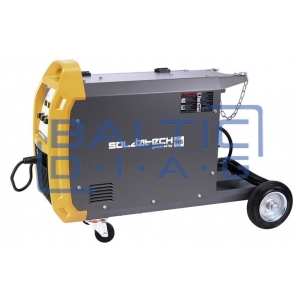

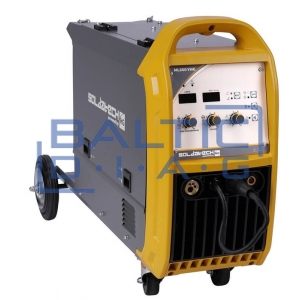

This HG MIG / MAG welding machine is equipped with a platform for attaching a gas cylinder. It also makes it easy to perform a variety of welding processes, including MIG welding and electrode welding. State-of-the-art IGBT inverter technology ensures that the ML250YHG provides sustainable performance, higher power output and a very high duty cycle. The ML250YHG also has thermal protection as standard, which together with the built-in fan prevents overheating and ensures high-quality welding performance for a long time. The hot start/anti-stick feature rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (pulse free).

Standard equipment:

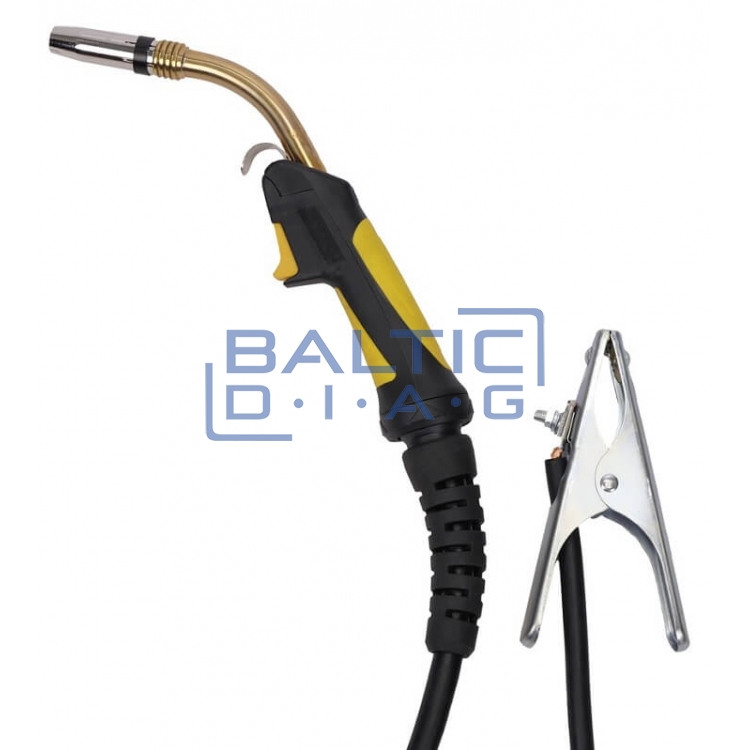

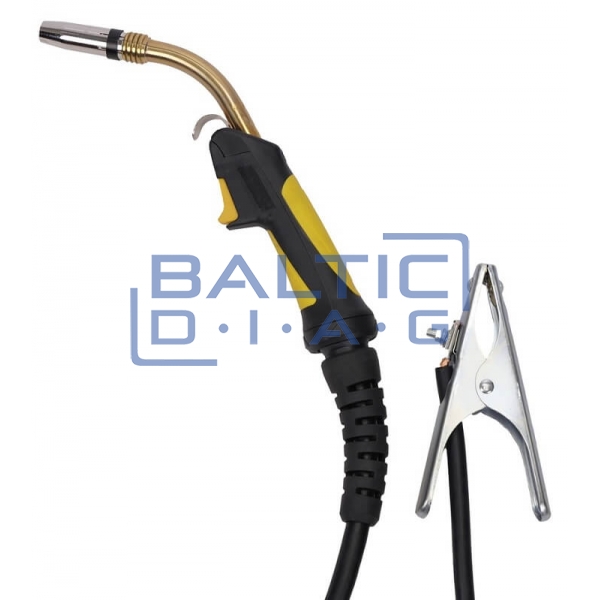

• MLT24M3 MIG torch with Euro connector 3 m cable
• Twistlock electrode torch 3 m 25 mm²
• Welding earth terminal with 3 m 25 mm² cable
• European Dinse connectors 13 mm
• Gas line with quick connection 4 m
• 2x wire feed roll: 0.8 + 1.0
• 5-pin 32A plug with 3 m 4x2.5 mm² cable

Technical specifications:

• Voltage = 400V
• Frequency = 50/60 Hz
• Circuit breaker = 3x 16 A C-char
• Input power = 11 kVA
• Starting voltage = 55V
• Duty cycle (at 20°C ambient temperature) = 80% - 250 A
• Duty cycle (at 40°C ambient temperature) = 60% - 250 A
• Welding current range MIG/MAG = 30 - 250 A
• Welding current range MMA = 20 - 200 A
• Weldable welding wire = 0.8 / 1.0 / 1.2 / 1.6 mm
• Protection class = IP21S
• Dimensions = 990 x 495 x 720 mm
• Weight = 45.5 kg
