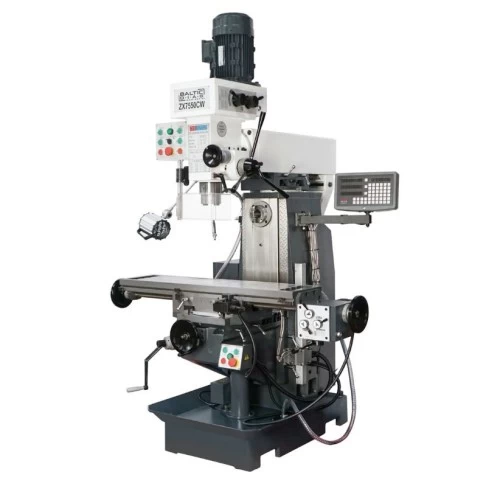

Metal milling machine ZX7550CW

Metal milling machine ZX7550CW

Country of origin: China, 24 months warranty period

The ZX7550CW metal milling machine is designed for precision metal machining in industrial plants, machine shops and repair centres. The machine's versatile design allows for both drilling and milling work, making it suitable for a wide range of metalworking processes. The robust design ensures stable operation and high machining precision, while the wide range of spindle speeds allows the machine to be adapted to different materials and machining operations. A comfortable working area and ergonomic controls allow the operator to efficiently carry out both single and batch machining operations.

Technical specifications:

• Maximum drilling diameter: 30 mm
• Maximum end milling width: 100 mm
• Maximum vertical milling diameter: 25 mm
• Distance from spindle to work table: 60-360 mm
• Spindle speed range: 115-1750 rpm (vertical) / 60-1350 rpm (horizontal)
• Shaft travel: 120 mm
• Work table size: 800 × 240 mm
• Work table travel: 400 × 220 mm
• Spindle taper: ISO40
• Maximum thread diameter: M16 (cast iron) / M12 (steel)
• Weight (net): 850 kg
• Weight (gross): 950 kg
• Transport dimensions: 1340 × 1140 × 2245 mm

The ZX7550CW metal milling machine is a reliable and versatile machine for metalworking applications. The robust construction, extensive functionality and stable operation ensure high machining precision, increased productivity and long-lasting durability in professional workshops and production plants.
