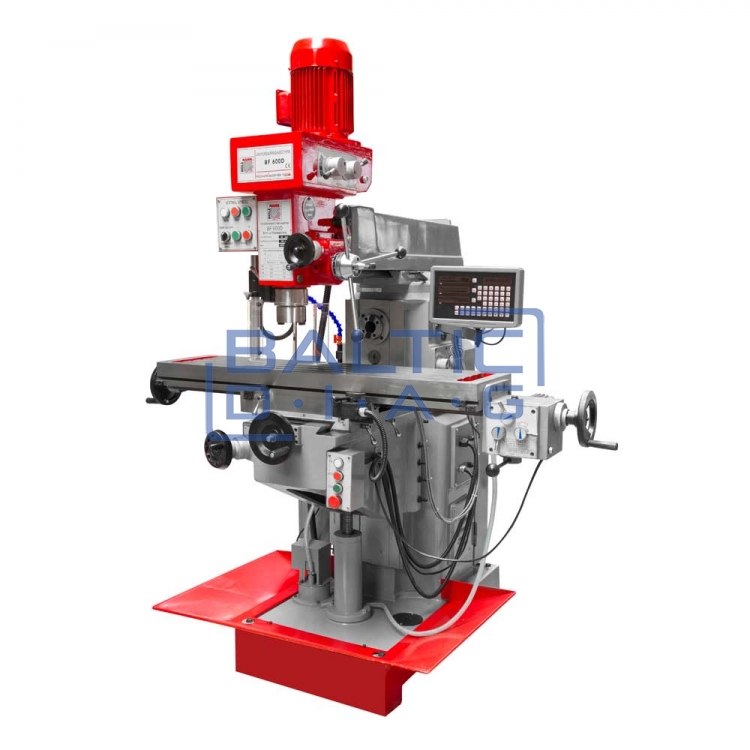

Metal milling machine Holzmann BF600D

Metal milling machine Holzmann BF600D

Manufacturer: Holzmann (Austria)

Features:

With 3-axis DRO system

Automatic X-axis adjustment

Vibration-absorbing cast iron machines

The gear drives the horizontal and vertical milling shaft

A quick and easy way to instantly change to horizontal milling

Cooling system and halogen lamp included

Ground and hardened gears with oil lubrication

Vertical shaft with powerful 2-stage motor

CW-CCW

The cross table has 14mm t-nut guides to secure the components

Complete set: 3-axis DRO, X-axis feed, drill chuck 1-16mm/B18, 8 pcs. of milling heads (4,5,6,8,10,12,14,16 mm), adapters ISO 40-MK3, ISO 40-MK2, ISO 40-B18, 2 pcs. x M16, horizontal milling arm 22mm and 27mm, nut I160, cooling system and halogen lamp.

Technical data:

Motor power s1: 850 / 1500 W

Power supply: 400V / 50Hz

Table size: 1200 x 280 mm

Milling adapter: ISO 40

Milling speed vertical min-1: 115-1750 (8)

Max. diameter of front milling: 100 mm

Max. diameter of the end mill: 25 mm

Rotatable head: +/- 90°

Horizontal milling speed min-1: 45-1330 (9)

Z-axis movement: 380 mm

Y-axis movement: 230 mm

X-axis movement: 600 mm

Max. distance from shaft to table: 420 mm

Motor power for horizontal milling: 2.2 kW

T-shaped cutouts: 14 mm

Net weight: 1180 kg

Gross weight: 1225 kg
