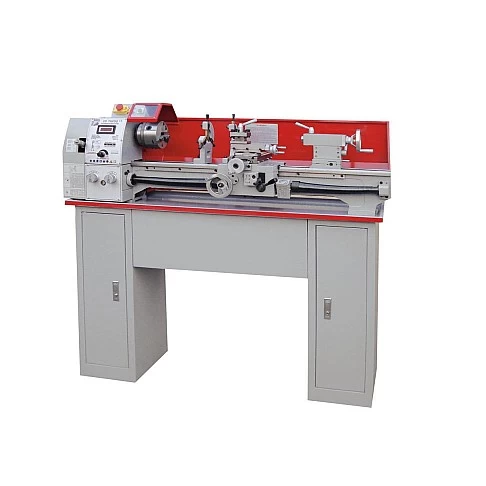

Metal lathe Holzmann ED750FDQ

Metal lathe Holzmann ED750FDQ

Manufacturer: Holzmann (Austria)

Features:

With longitudinal and transverse feed

Solid cast iron base lathes

The variable speed is regulated by a potentiometer

Speed ​​indication and control via LCD screen

Resistant induction hardened components

Stand with two cabinets

Spindle Taper MT3, Point MT2

Max. turning diameter 250 mm, turning pad width 135 mm

Shaft diameter 25 mm, shaft taper MT3, shaft point MT2

Complete set: cabinets, 3-part turning chuck Ø125 mm, change gears, 2 pcs. turning points, internal and external chucks, 4-way turning column, lead screw cap, chuck guard with shield, face plate Ø 220 mm

Technical data:

Motor power s1: 750 W

Power supply: 230V / 50Hz

Overall dimensions: 1400 x 530 x 1290 mm

Lathe width: 135 mm

Shaft bore: 23 mm

Shaft taper: MK3/MT3

Tailstock taper: MK2/MT2

Turning speed min-1: (I): 100-1100; (II) 200-2200

Metric thread range mm/r: 0.125-2.5 (18)

Inch Thread Range: 8-56 TPI (21)

Max. turning on transverse turning: 140 mm

Distance between centers: 750 mm

Max. space above the lathe bed: 250 mm

Center height: 125 mm

Longitudinal feed: 0.02-0.22 mm/U (33)

Tailstock travel: 60mm

Transverse feeding stroke: 115 mm

Compound turning stroke: 70 mm

Net weight: 175 kg

Gross weight: 208.5 kg
