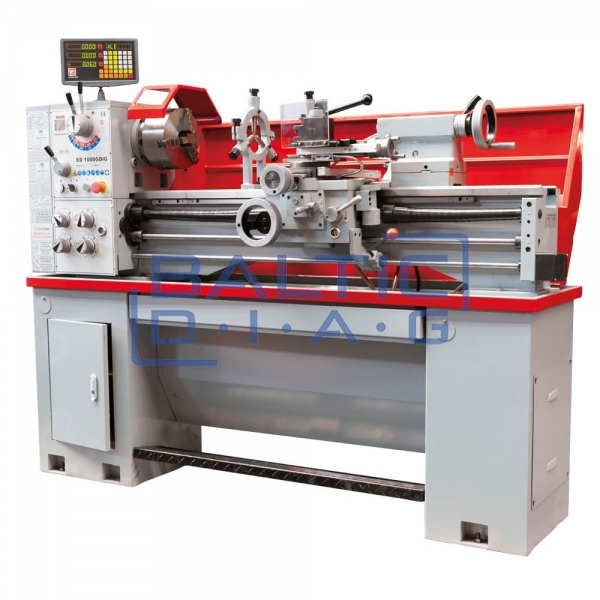

Metal lathe Holzmann ED1000GDIG

Metal lathe Holzmann ED1000GDIG

Manufacturer: Holzmann (Austria)

Features:

With drive shaft

State-of-the-art screw and feed lathes with exceptional long-term value

Ideal for use in sectors that require versatility, such as maintenance and production workshops, specialist workshops or for training purposes in schools

Extra wide shaft opening (Ø 52 mm) for machining large diameter workpieces

The electromagnetic foot brake ensures maximum work safety and significantly reduces non-productive time

Induction-hardened and precision-ground prismatic guides made of stabilized cast iron for maximum lifetime accuracy

The removable bridge allows machining workpieces with a diameter of up to 474 mm

Precision-cut gears and a vibration-damping cast iron machine bed ensure high rotational accuracy

Gears and shafts are hardened, ground and run in an oil bath

Metal lathe dynamically balanced main shaft

Easy and quick speed change via the drive shaft

CAMLOCK D5 shaft holder

Adjustable (+/- 5 mm) taper shank for taper turning of the workpiece

All guides are conveniently adjustable through the V shape

The rear support can be adjusted +/- 5 mm for taper rotation

Complete set: 3-piece chuck Ø 200 mm with exchangeable chucks, 4-piece chuck Ø 200 mm, feed cover, front plate Ø 250 mm, 2x points MT4, morse taper bushing MT6/4, brake pedal, halogen work lamp, chip protection, cooling unit, stand with spindle brake, change gear, tools

Technical data:

Motor power s1: 1500 W

Power supply: 400V / 50Hz

Lathe width: 189 mm

Height of lathe base: 305 mm

Dimensions: 1980 x 760 x 1550 mm

Longitudinal feed: 0 078 - 1 044 (16)

Crossfeed: 0.022-0.298 (16)

Shaft bore: 52 mm

Shaft taper: MK6/MT6

Tailstock taper: MK4/MT4

Max. rotation: 220 mm

Max. feed: 520 mm

Spindle speed min-1: (I): 70-420 (II): 330-1900

Max. tool holder cross-section: 20x18mm

Metric thread range mm/r: 0.45-10 (32)

Inch Thread Range: 2.25-40 (20)

Tailstock travel: 100 mm

Cross slide stroke: 180 mm

Compound slide stroke: 90 mm

Distance between centers: 1000 mm

Max. position above the lathe bed: 360 mm

Center height: 180 mm

Stroke: 780 mm

Noise level: 84 dB

Net weight: 655 kg

Gross weight: 750 kg
