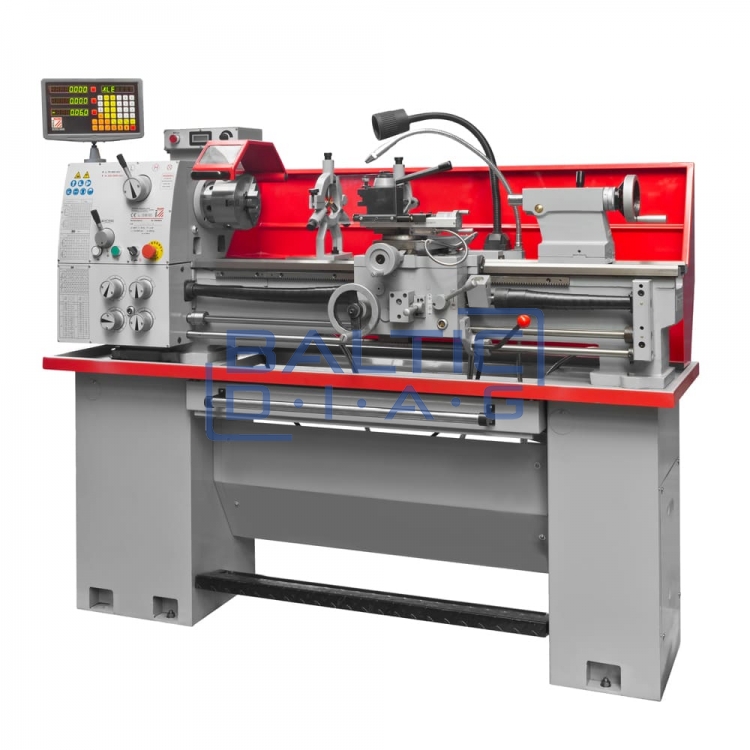

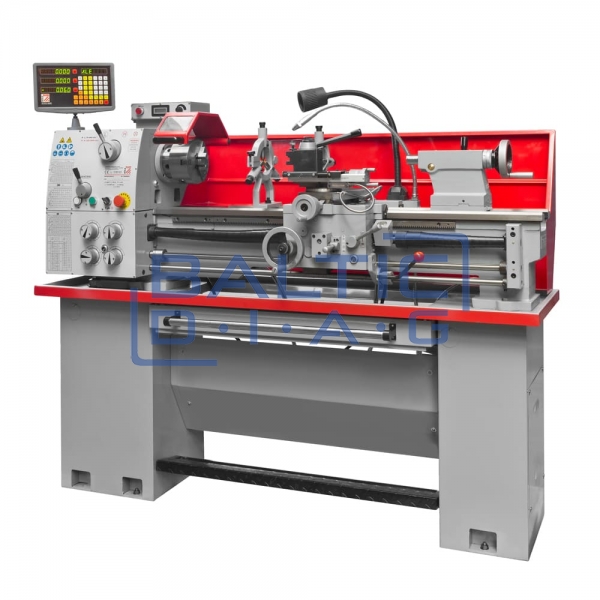

Metal lathe Holzmann ED1000FBDIG

Metal lathe Holzmann ED1000FBDIG

Manufacturer: Holzmann (Austria)

Features:

State-of-the-art screw and feed lathes with exceptional long-term value

Ideal for use in sectors that require versatility, such as maintenance and production workshops, specialist workshops or for training purposes in schools

The electromagnetic foot brake ensures maximum work safety and significantly reduces non-productive time

Induction-hardened and precision-ground prismatic guides made of stabilized cast iron for maximum lifetime accuracy

The removable bridge allows you to process workpieces with a diameter of up to 450 mm

Gears and shafts are hardened, ground and run in an oil bath

Variable speed setting with frequency converter, the speed can be set conveniently through the digital display

CAMLOCK D5 shaft holder

Digital 3-axis control unit

Complete set: 3-piece chuck Ø 160 mm with exchangeable chucks, 4-piece chuck Ø 200 mm, front plate Ø 250 mm, 2x points MT4, morse taper bushing MT5/3, feed cover, brake pedal, halogen work lamp, chip protection, cooling unit, stand with spindle brake, change gear, tools

Technical data:

Motor power s1: 1500 W

Power supply: 400V / 50Hz

Dimensions: 2000 x 750 x 1560 mm

Distance between centers: 1000 mm

Center height: 165 mm

Max. position above the lathe bed: 330 mm

Lathe width: 198 mm

Height of lathe: 405 mm

Turning speed min-1: (I): 70-440 (II): 350-2000

Shaft bore: 50 mm

Shaft taper: MK5/MT5

Tailstock taper: MK3/MT3

Longitudinal feed: 0.053 - 1.29 mm (40)

Crossfeed: 0.013-0.31mm (40)

Stroke: 700 mm

Cross slide stroke: 150 mm

Compound slide stroke: 84 mm

Tailstock travel: 100 mm

Metric thread range mm/r: 0.4-7 (32)

Inch Thread Range: 4-60 TPI (36)

Max. tool holder cross-section: 20x18mm

Noise level: 80 dB

Net weight: 540 kg

Gross weight: 610 kg
