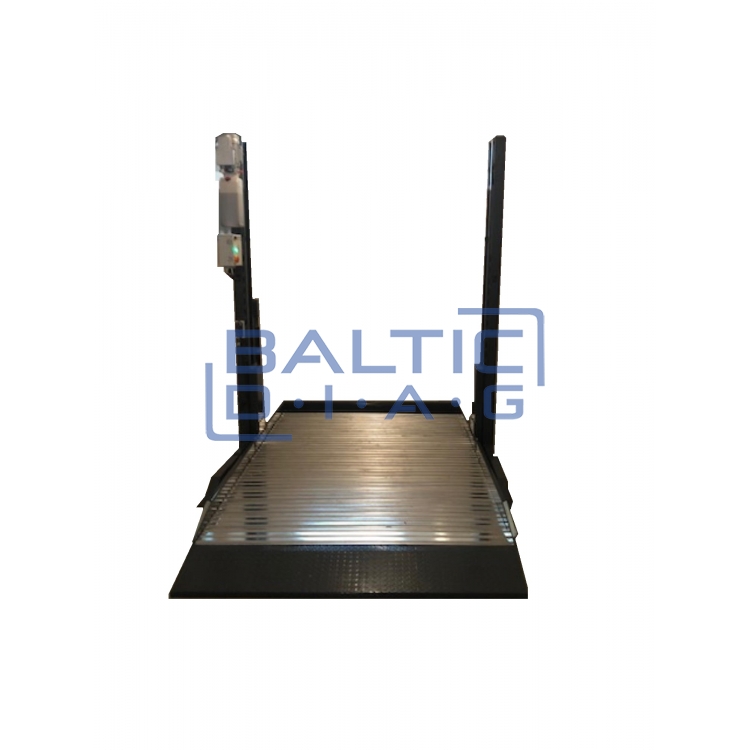

INT-ECO-1123 two-column platform parking lift

INT-ECO-1123 two-column platform parking lift

Country of origin: The Netherlands; Warranty: 24 months

Description:

This parking lift is a space-saving alternative to parking. The lift is designed so that when building several lifts next to each other, they can share a common column. This saves a lot of space in the parking space and can accommodate more lifts. Also, the low height of 3 meters allows these lifts to be adapted in low spaces. Thanks to the small column bases, maneuvering around the lift is easy. The 2300 kg lift is enough for the vast majority of European car models.

Buttons on the control unit: Emergency stop / on; lifting; permission until the next lock; normal passage (the lift rises a few centimeters and then the lift is unlocked and further release is possible). When the lift reaches the foot control switch, it stops and the safety signal is activated. Then, by pressing the release button until the next lock, the lift reaches the floor.

An integrated sensor that prevents the lift if something is under the platform.

Efficient hydraulic motor with chain drive.

Integral lifting platform. Low mileage, especially good for low cars.

Automatic locking on both sides of the platform.

Short base legs provide more space under the platform, making it easier to enter under the lift.

Technical parameters:

Lifting capacity: 2300 kg

Lifting height: 2100 mm

Power supply: 230V / 1 phase

Fuse: 16A (slow)

Working principle: electrohydraulics

Color: Gray RAL 7011

Locking: automatic, every 10 cm
